Front Drive Unit Assembly - LH Mount Assembly, 3DUF - Remove And Replace: Install

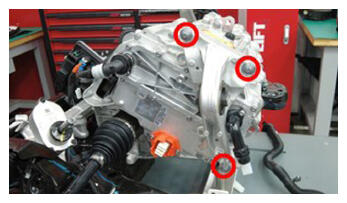

Install the bolts (x3) that attach the LH front drive unit mount to the front drive unit.
35 N.m (25.8 lbs-ft)

Tip: Use of the following tool(s) is recommended:
- External Torx 3/8 in E14 Socket
- Ratchet/torque wrench
- Torque wrench with angle measurement
Courtesy of TESLA, INC.

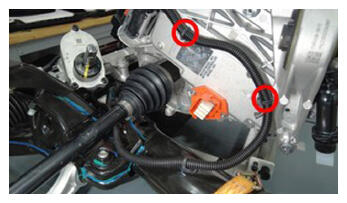

Secure the front drive unit harness clips (x2) onto the inverter housing.

Courtesy of TESLA, INC.
Install the front subframe assembly. See FRONT SUBFRAME - FRONT SUBFRAME ASSEMBLY - REMOVE AND REPLACE .
