Front Drive Unit Assembly - Output Axle Seal, 3DU - Remove And Replace: Notes

Last modified: 17/10/2023 18:56:38

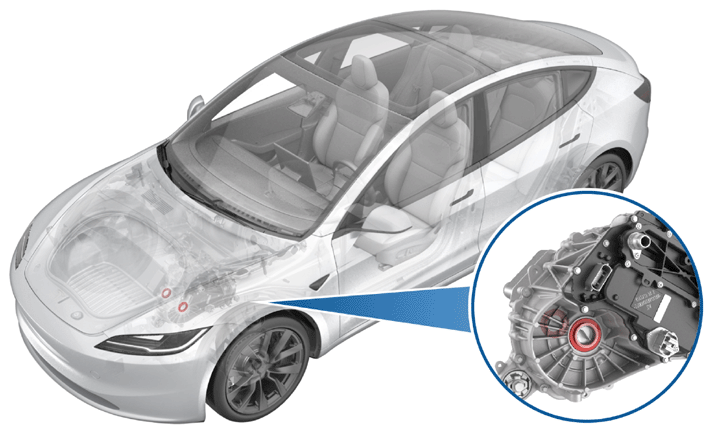

Fig 1: Front Drive Unit (3DU) Output Axle Seal Component Location

Courtesy of TESLA, INC.

NOTE: See PERSONAL PROTECTION to make sure wearing proper PPE when performing the below procedure.
