Front Wiper Motor: Pickup

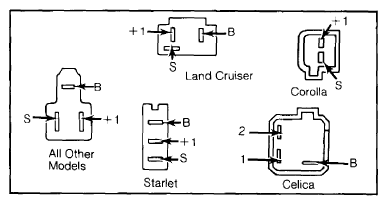

Unplug connector at wiper motor. Use an ohmmeter to check for continuity between terminals "+1", "+2" and "S". If there is no continuity, replace motor. See Figure.
Unplug connector at wiper motor. Use an ohmmeter to check for continuity between terminals "+1", "+2" and "S". If there is no continuity, replace motor. See Figure.
