Trouble Code 6 Blinks Rpm Signal

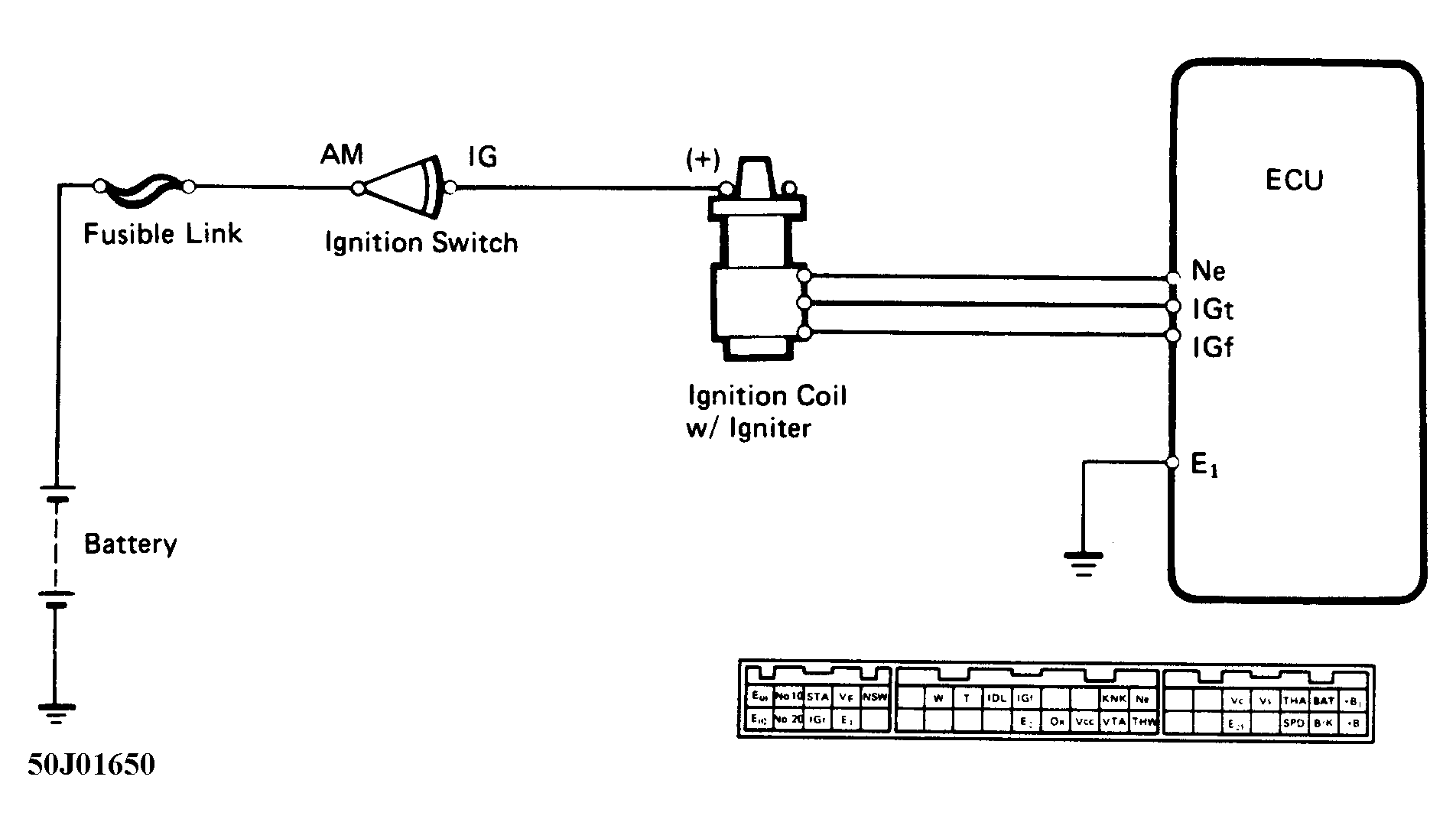

Fig 1: Trouble Code 6, Schematic, Blinks RPM Signal
G50J01650Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

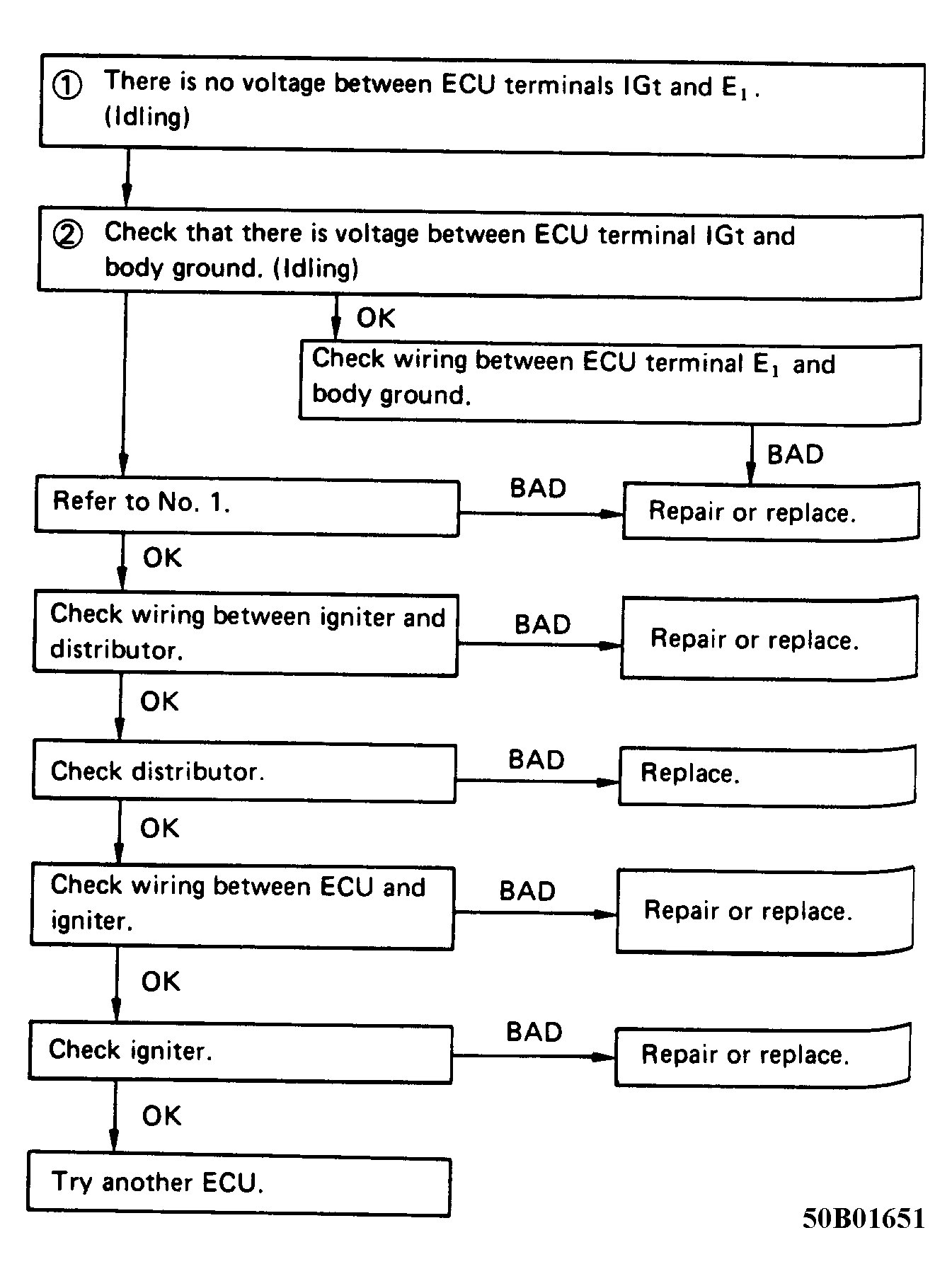

Fig 2: Trouble Code 6, Flow Chart, Blinks RPM Signal
G50B01651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
