Trouble Code 7 Blinks TPS Sensor & Circuit

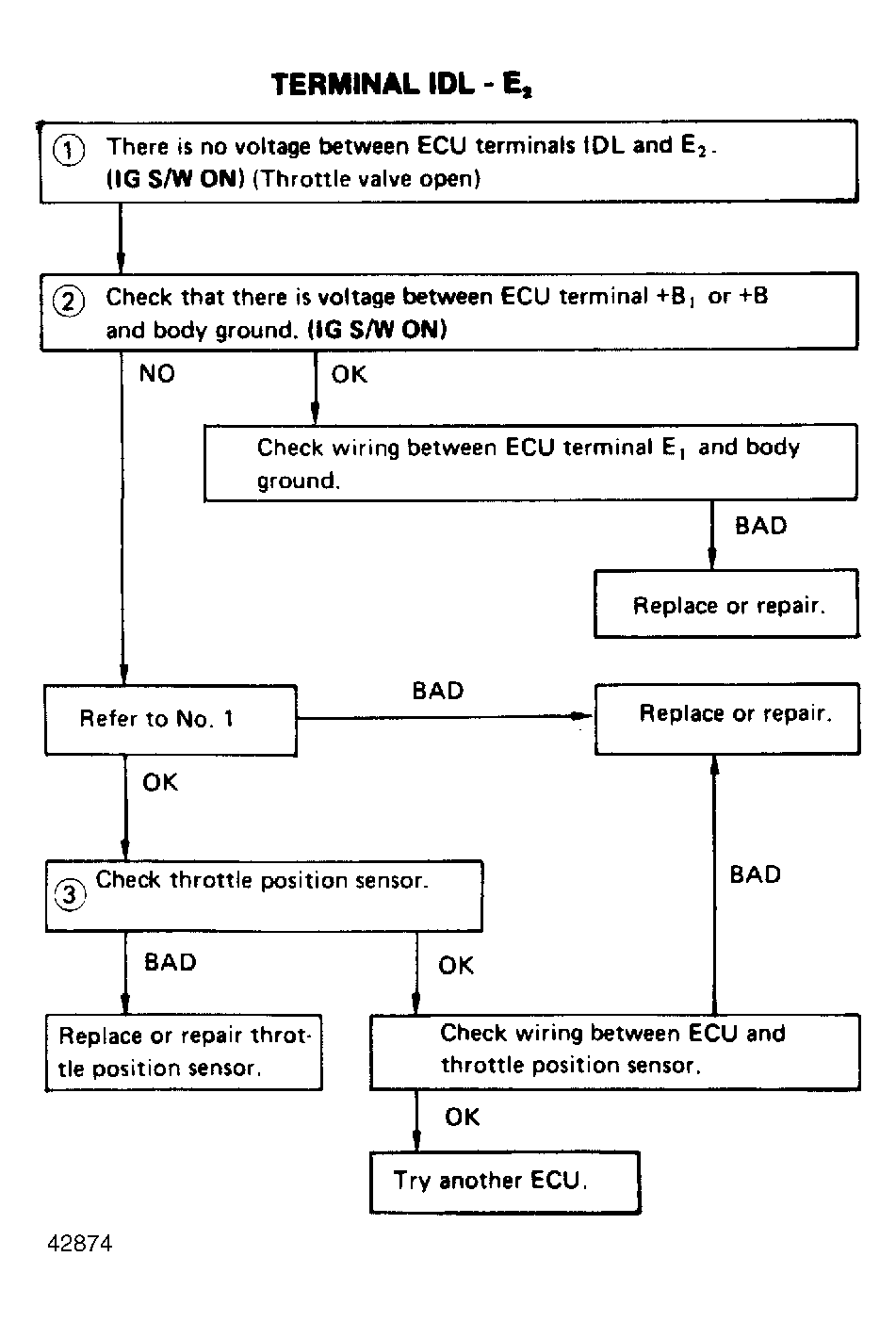

Fig 1: Terminal IDL - E2
G42874Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

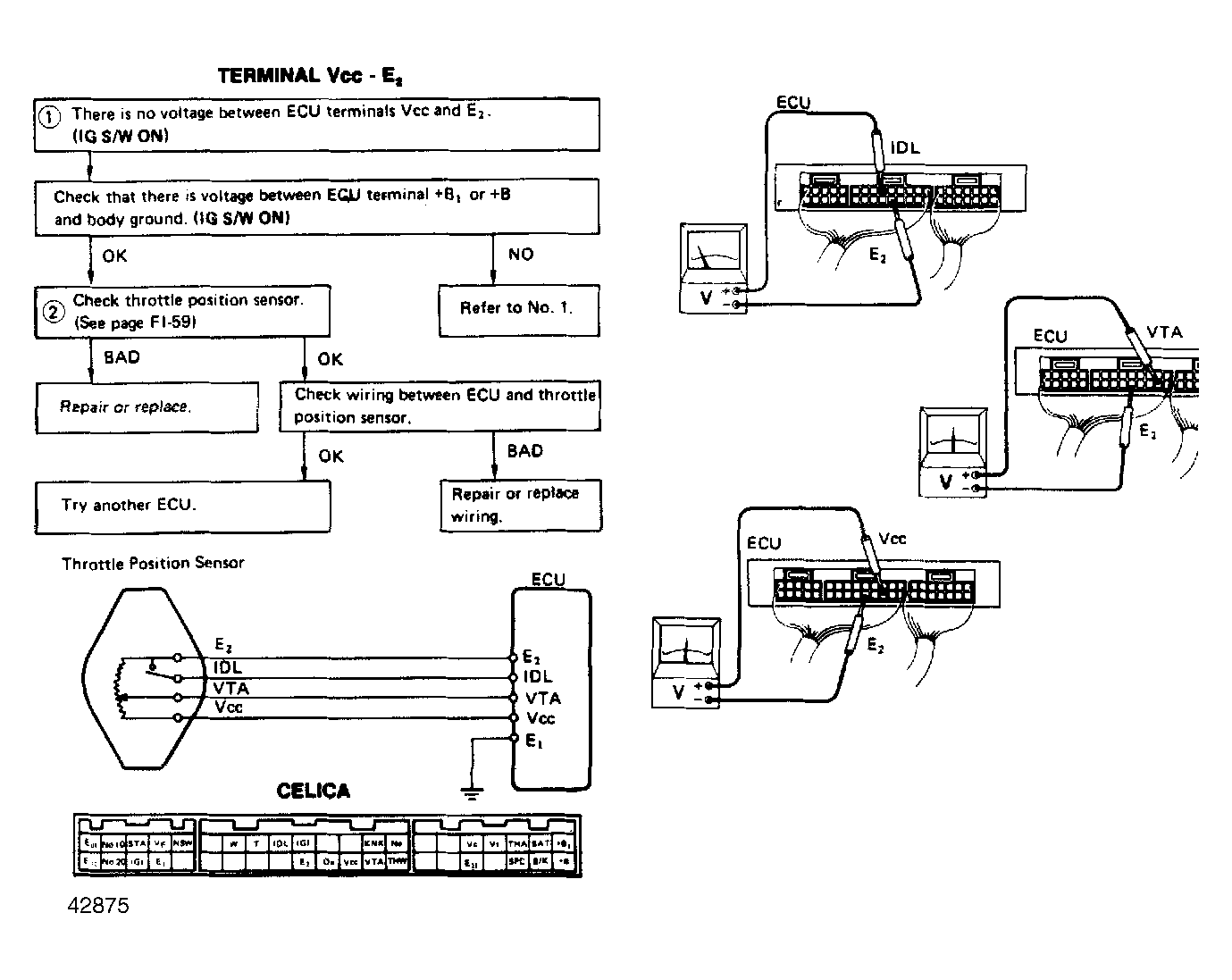

Fig 2: Terminal Vcc - E2
G42875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
