Vacuum Switch

Disconnect wiring connector from switch. Using ohmmeter, check for continuity between terminal and body of switch with engine stopped. With engine running there should be no continuity. Replace switch if defective.

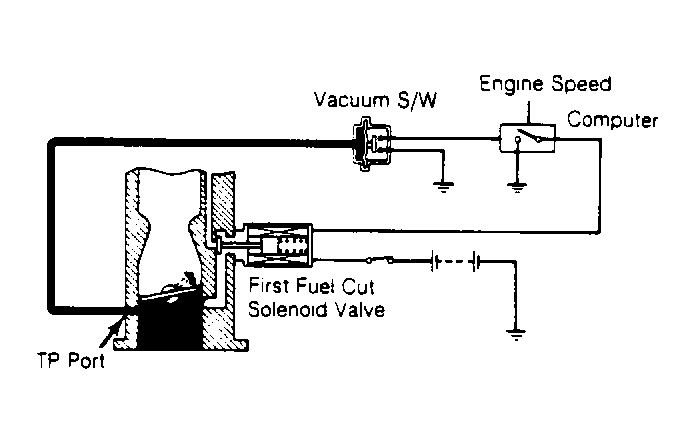

Fig 1: Deceleration Fuel Cut System

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
