Engine Compression (Fuel Injected Models): Celica

Run engine until it reaches normal operating temperature. Remove all spark plugs and coil high tension wire. Hold throttle valve wide open and operate engine at cranking speed, when checking compression.

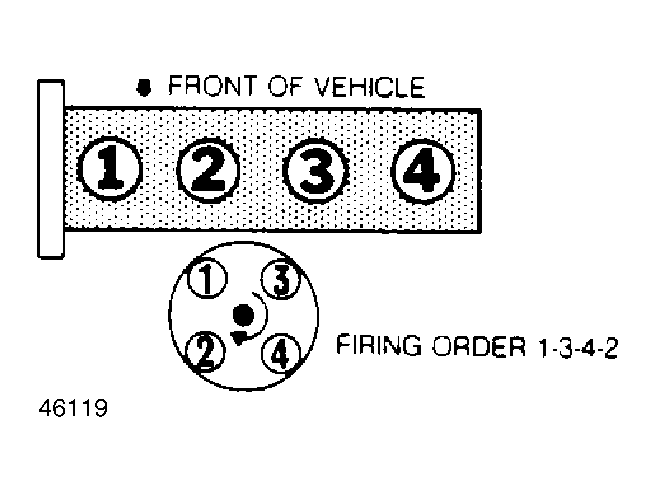

Fig 1: Camry & Celica Firing Order & Distributor Rotation
G46119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
