Circuit Protection Devices

CIRCUIT PROTECTION DEVICES LOCATION

Component Location
Fuse/Relay Panels

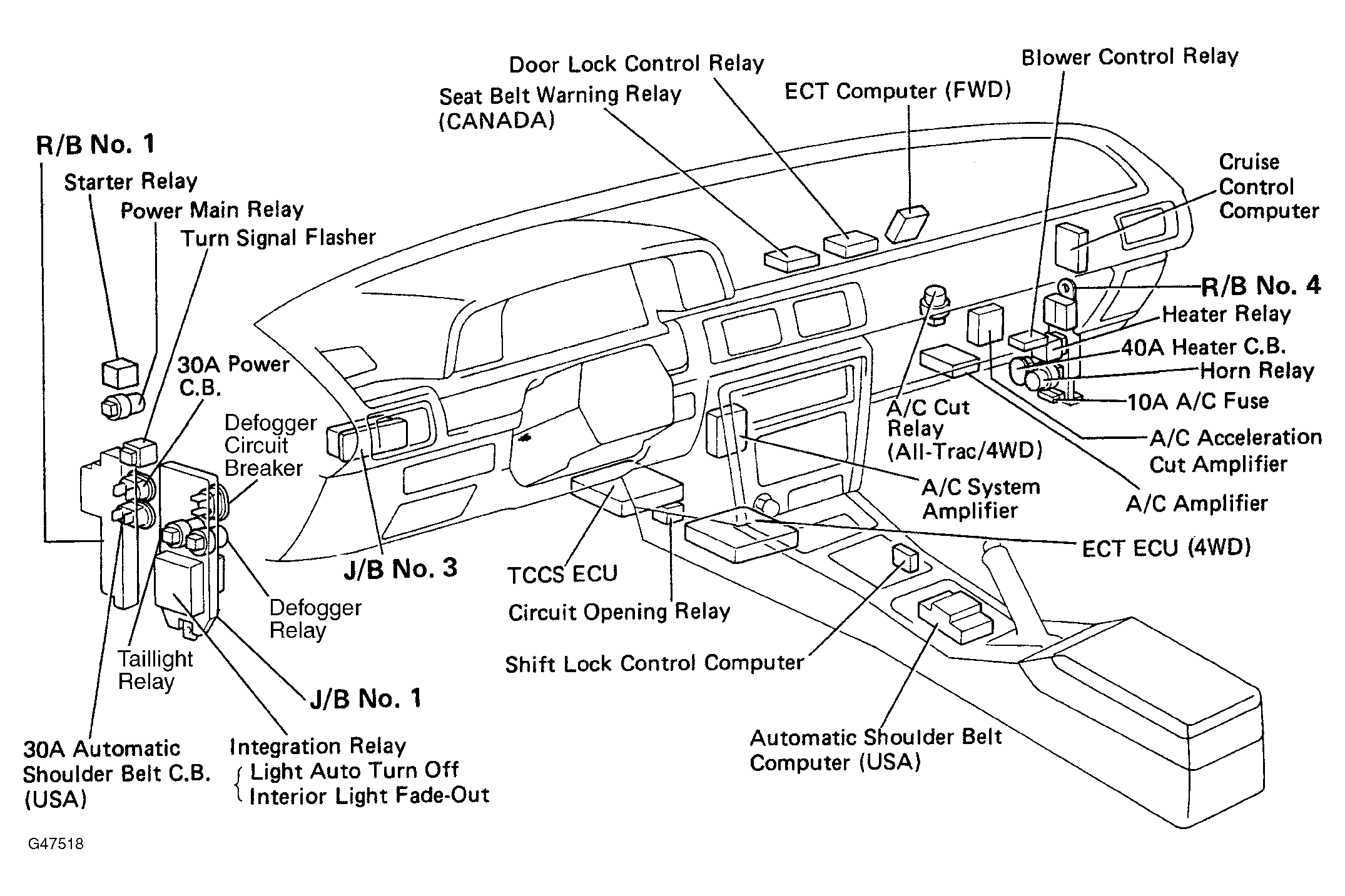

No. 1 Under left side of dash. See Figure.

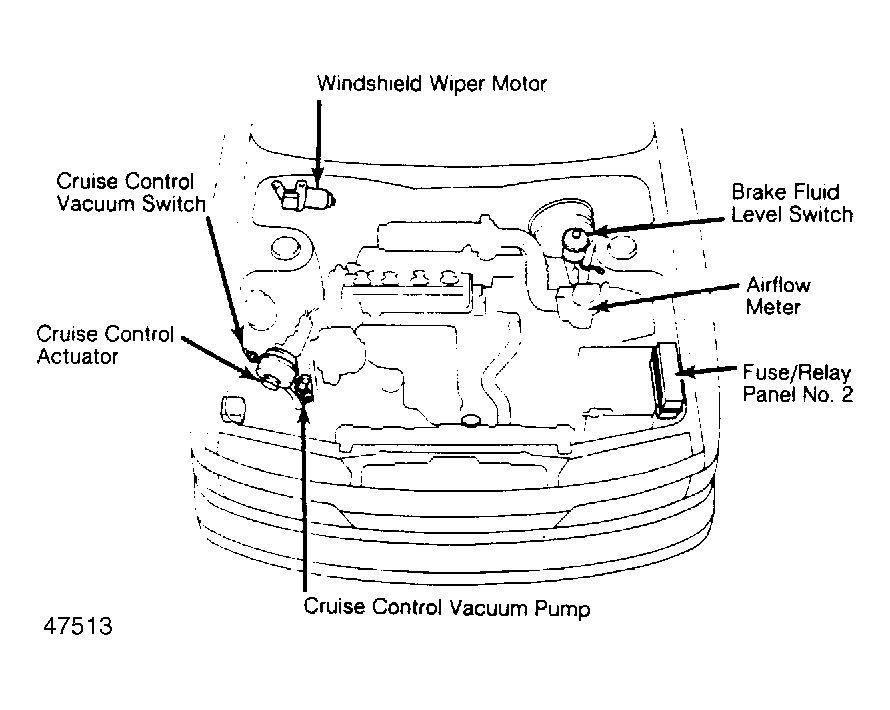

No. 2 On left inner fender panel. See Figure.
No. 3 Under right side of dash. See Figure.
Circuit Breakers
Heater On fuse/relay panel No. 3, under right side of dash. See Figure.
Automatic Shoulder Belt On fuse/relay panel No. 1, under left side of dash. See Figure.
Power On fuse/relay panel No. 1, under left side of dash. See Figure.
Defogger On fuse/relay panel No. 1, under left side of dash. See Figure.
