Control Units

CONTROL UNITS LOCATION

Component Location

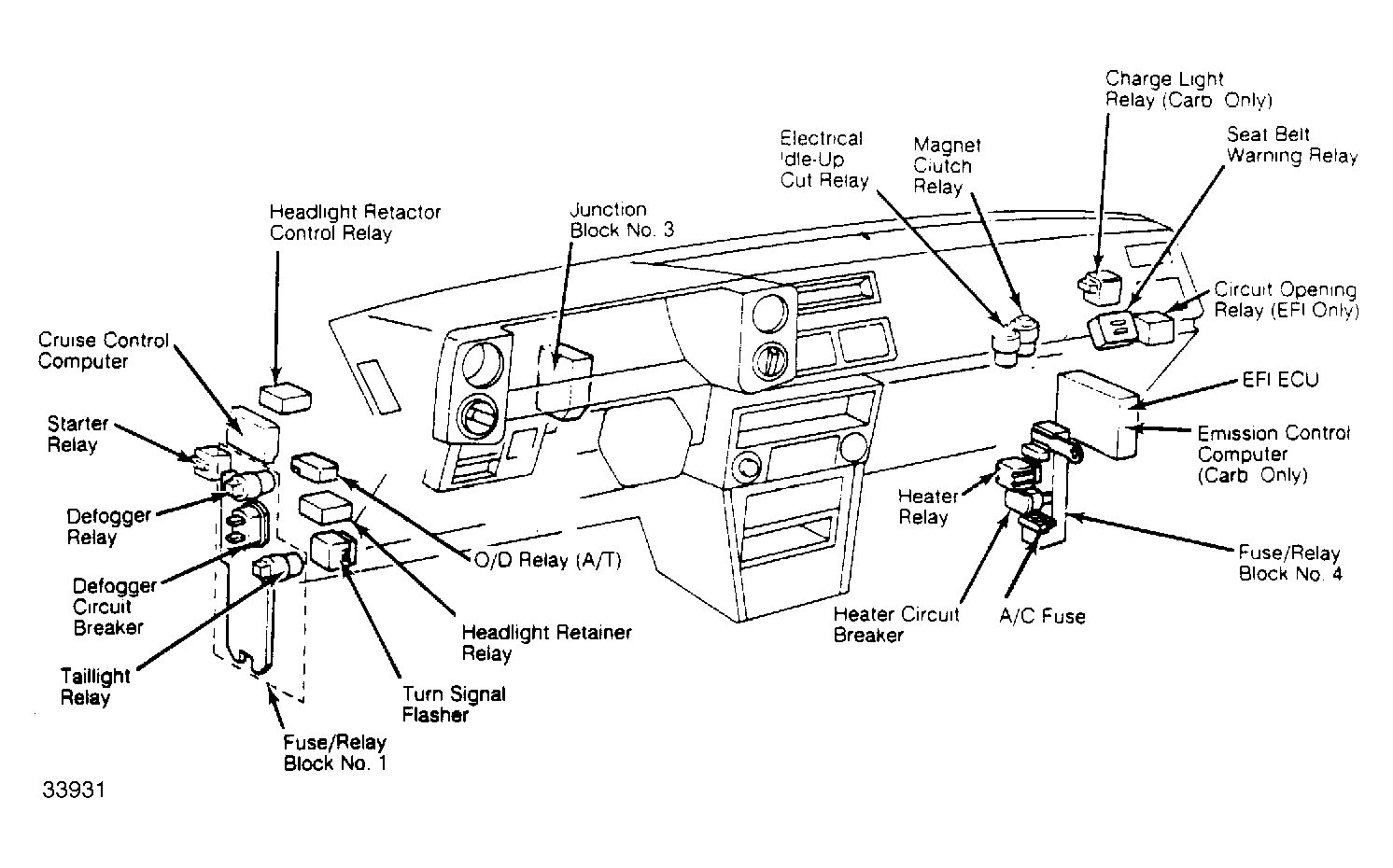

Cruise Control Computer Behind left kick panel, above fuse/relay block No. 1. See Figure.
Emission Control Computer (ECC) Under right side of dash, behind right kick panel. See Figure.
EFI Electronic Control Unit (ECU) Under right side of dash, behind right kick panel. See Figure.
