Trouble Code 22 Coolant Temperature Sensor

WARNING: This page is about a different car, the 1987 Toyota Cressida. However, it is still accessible from the selected car via links, so may be relevant.

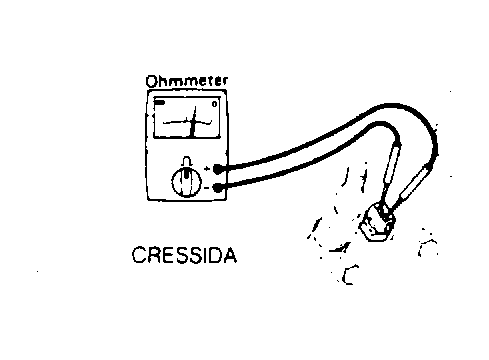

Fig 1: Trouble Code 22 Coolant Temperature Sensor (1 Of 2)
G62107Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

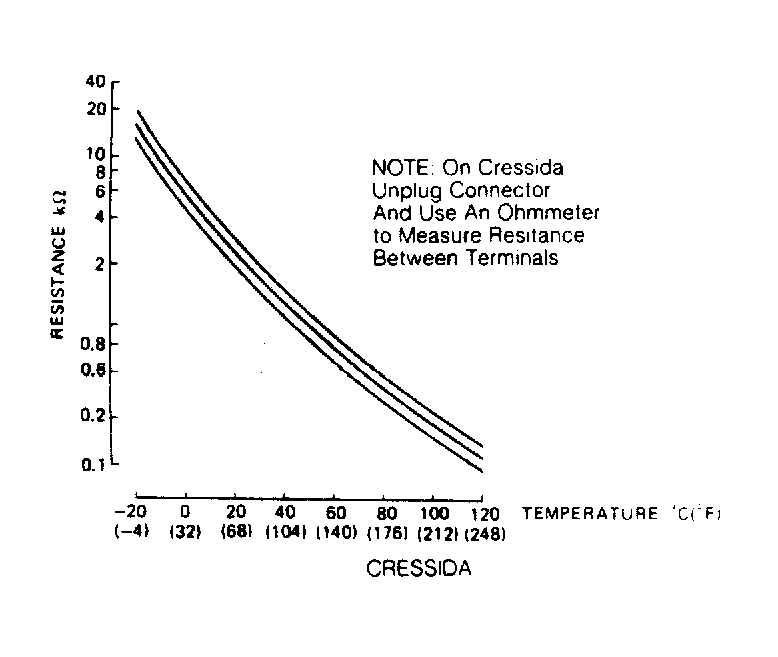

Fig 2: Trouble Code 22 Coolant Temperature Sensor (2 Of 2)
G62112Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
