No. 14 Test Cold Start Injector Circuit Test

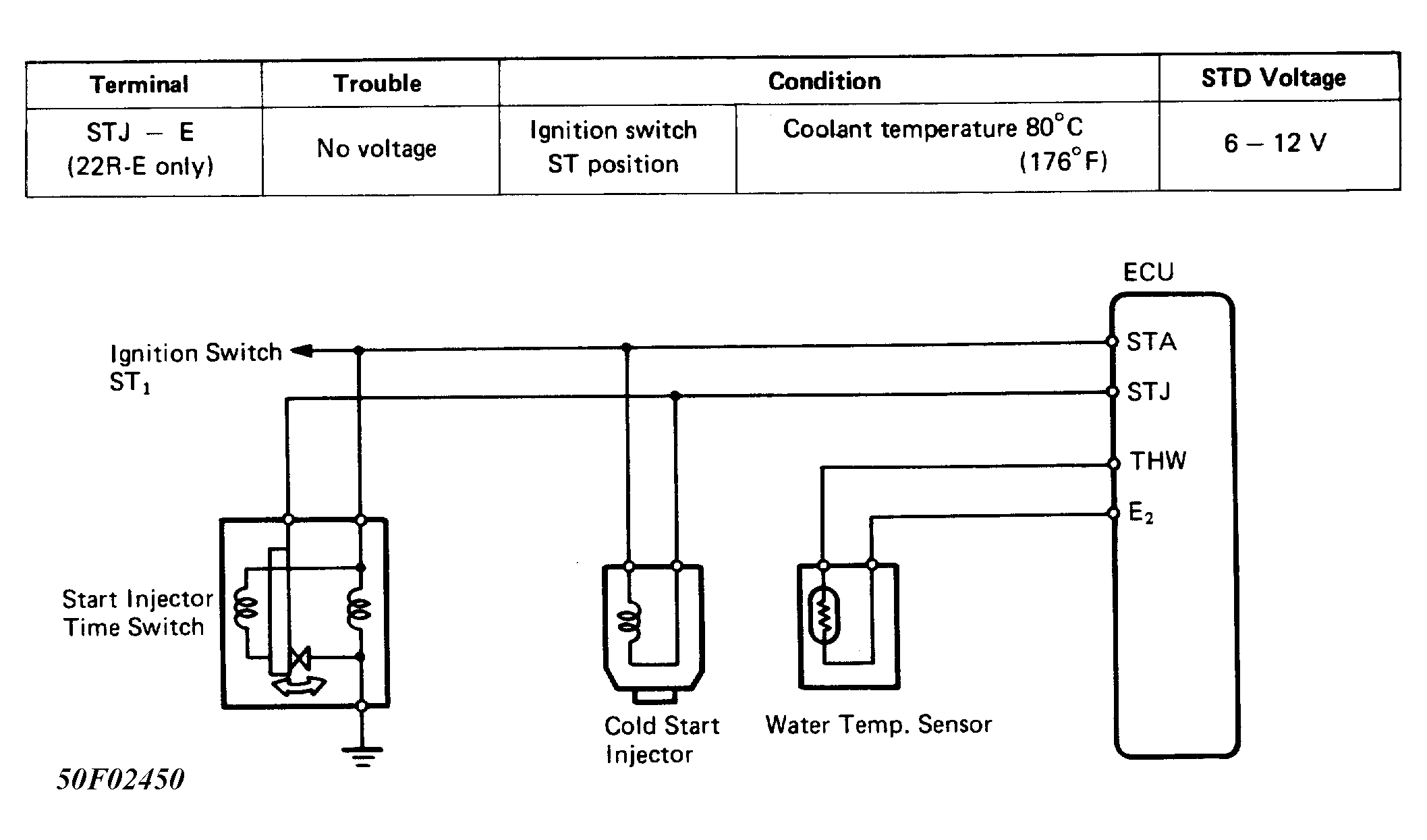

Fig 1: No. 14 Test Cold Start Injector Circuit Test, Schematic
G50F02450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

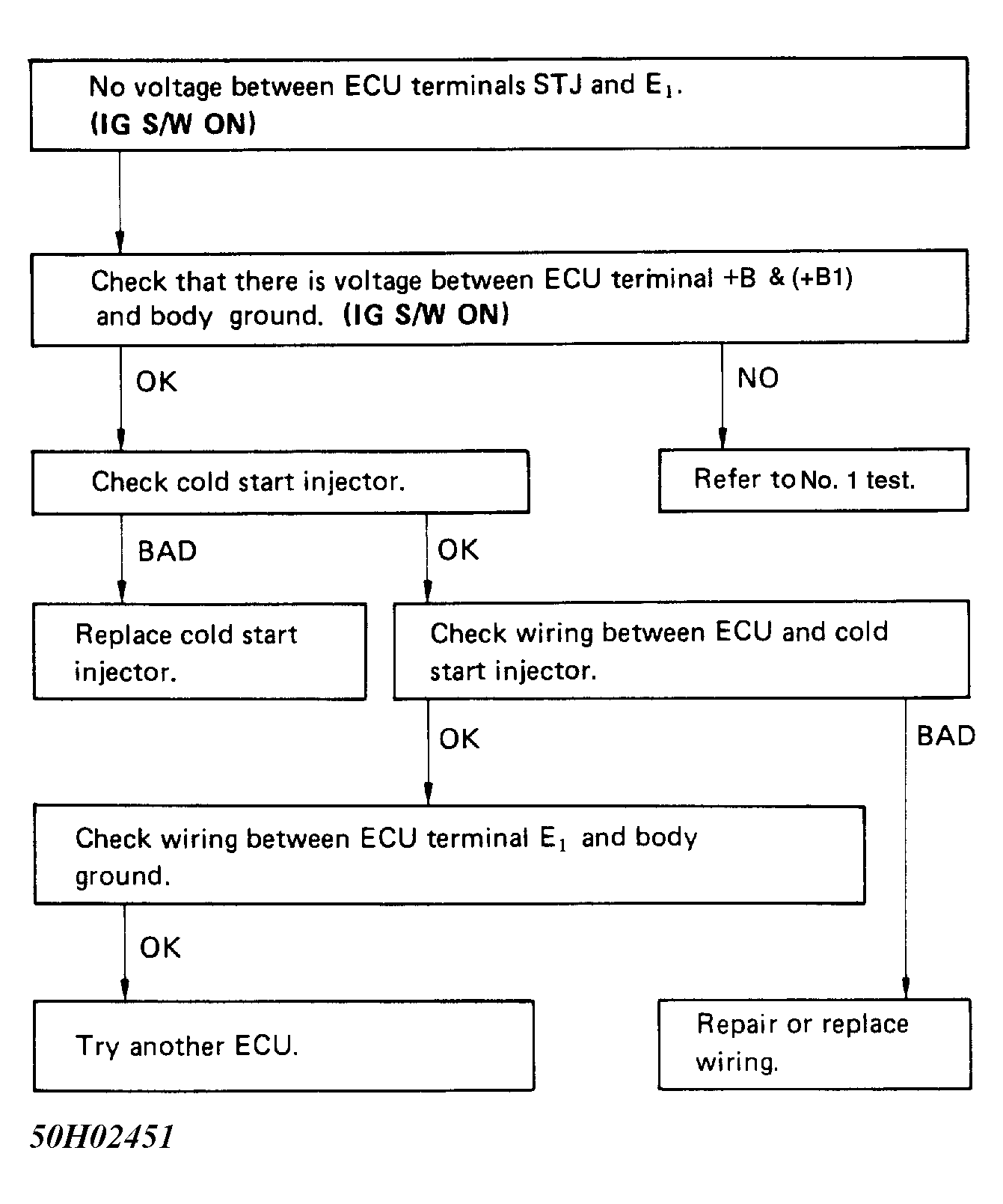

Fig 2: No. 14 Test Cold Start Injector Circuit Test, Flow Chart
G50H02451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
