No. 2 Test, Code 12, 13, 14, Ignition & Rpm Signal

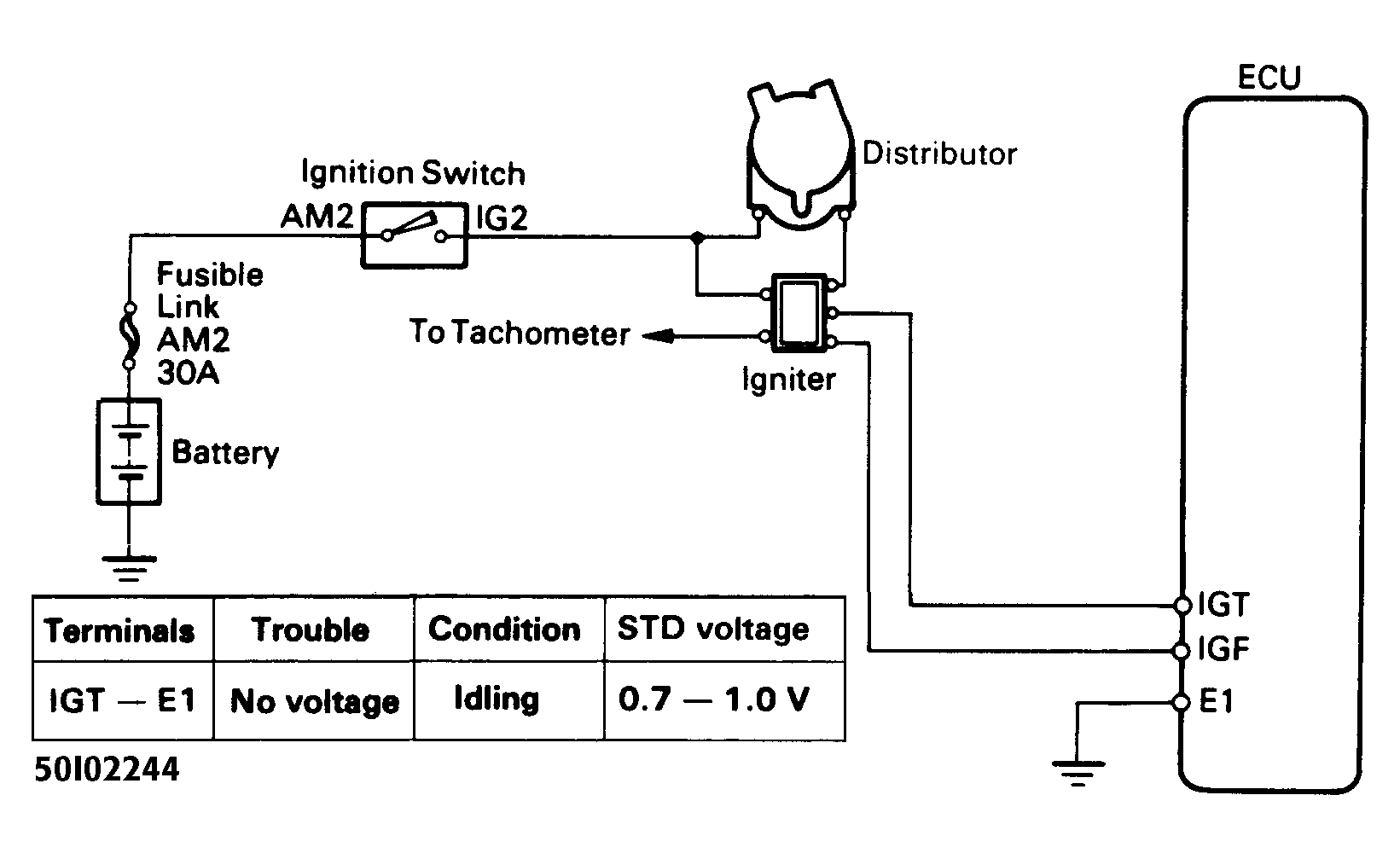

Fig 1: No. 2 Test (4-Cyl.) Code 12, 13, 14 Schematic, Ign & RPM Sig

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: No. 2 Test (V6) Code 12, 13, 14 Schematic, Ign & RPM Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

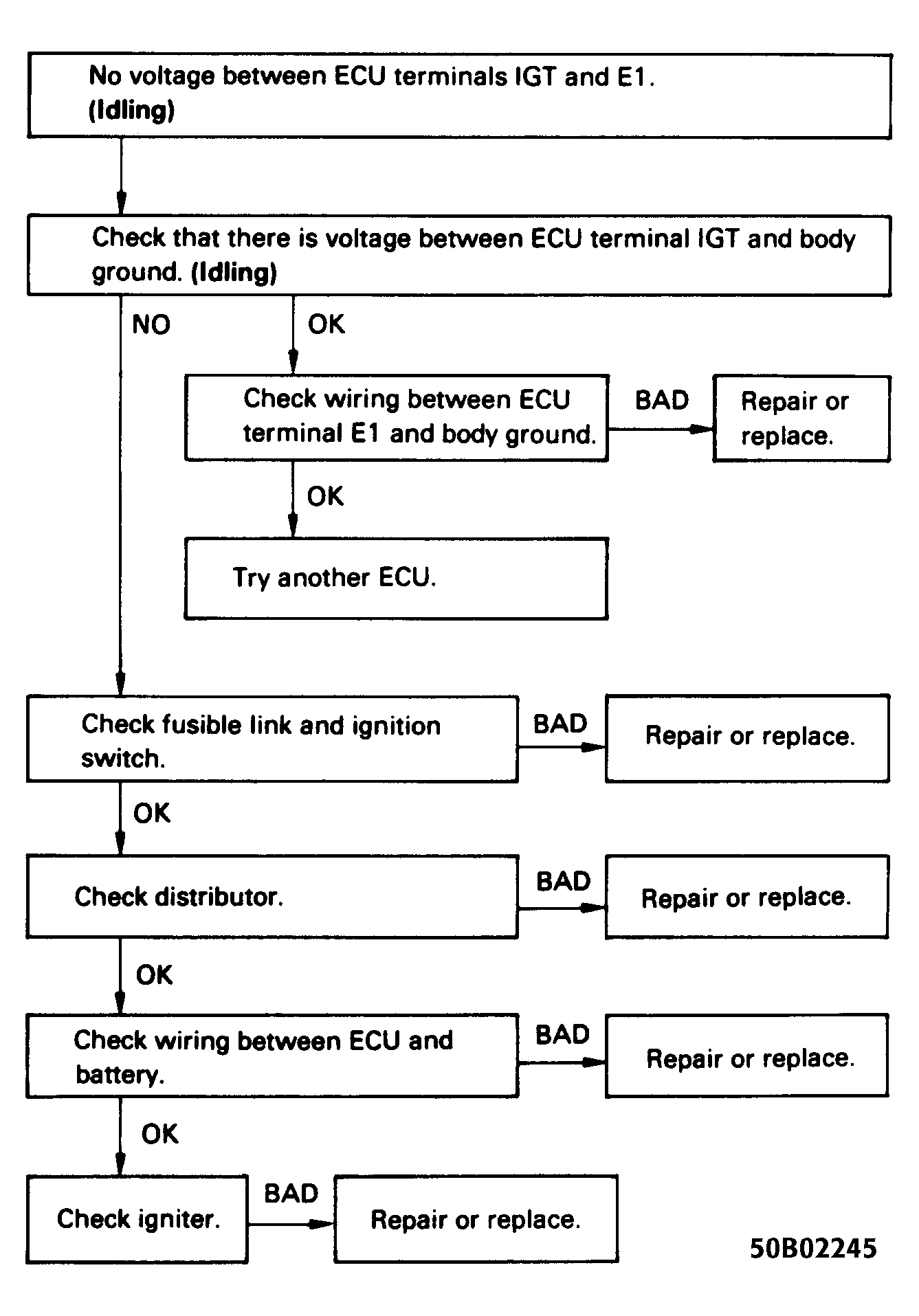

Fig 3: No. 2 Test, Code 12, 13, 14 Flow Chart, Ign & RPM Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
