No. 5 Test, Code 24, Air Temp. Sensor Circuit

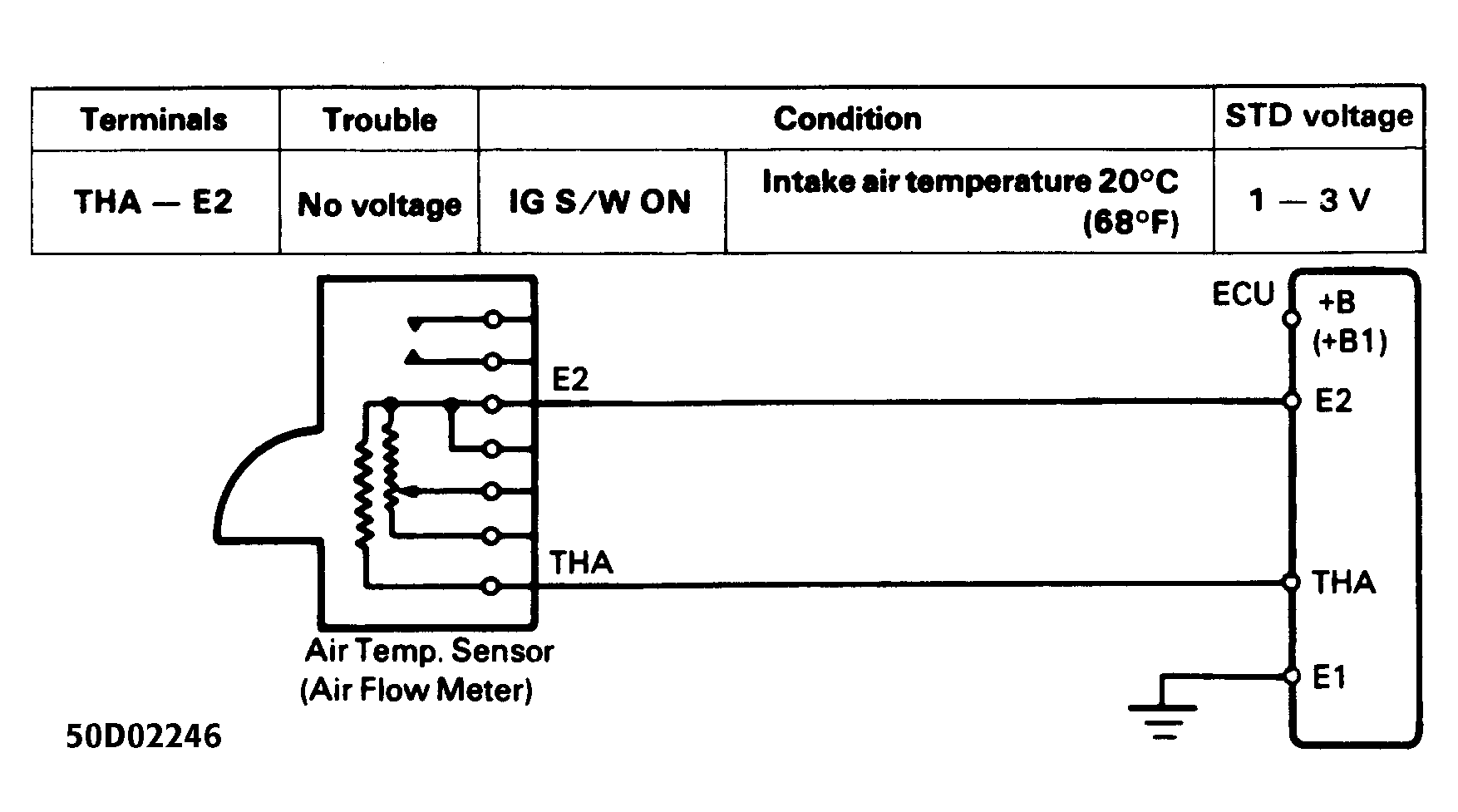

Fig 1: No. 5 Test, Code 24 Schematic, Air Temp. Sensor Circuit
G50D02246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

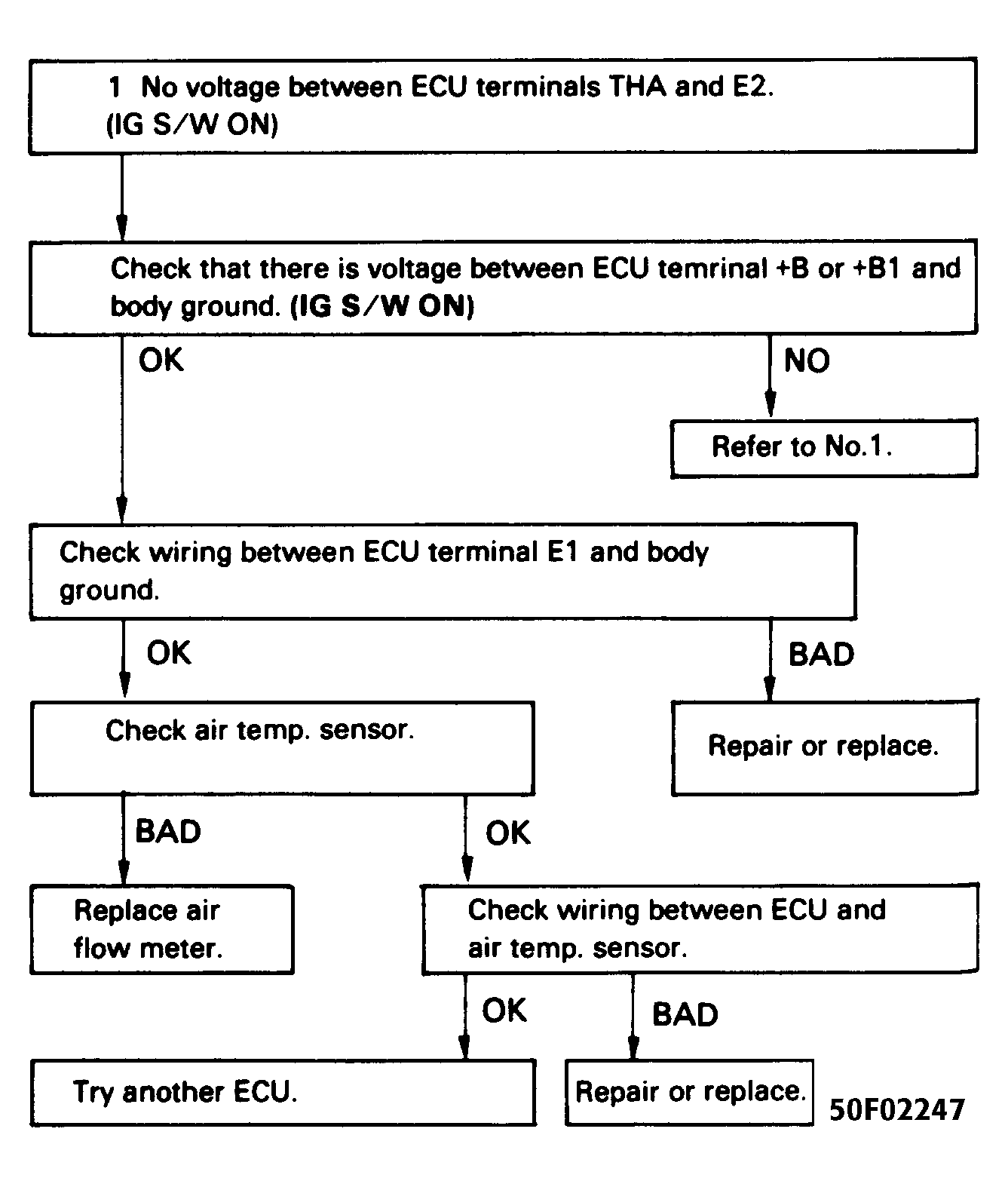

Fig 2: No. 5 Test, Code 24 Flow Chart, Air Temp. Sensor Circuit
G50F02247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

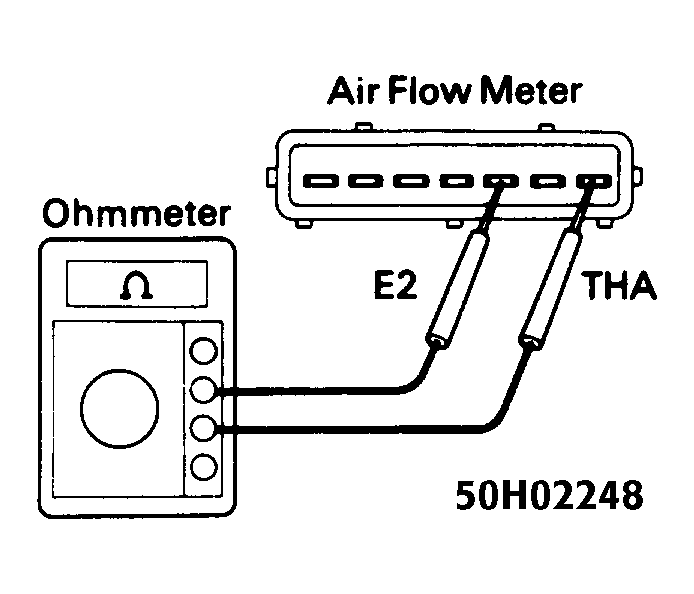

Fig 3: No. 5 Test, Code 24, Air Flow Meter Test
G50H02248Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
