No. 4 Test, Code 22, Coolant Temp. Sensor Signal

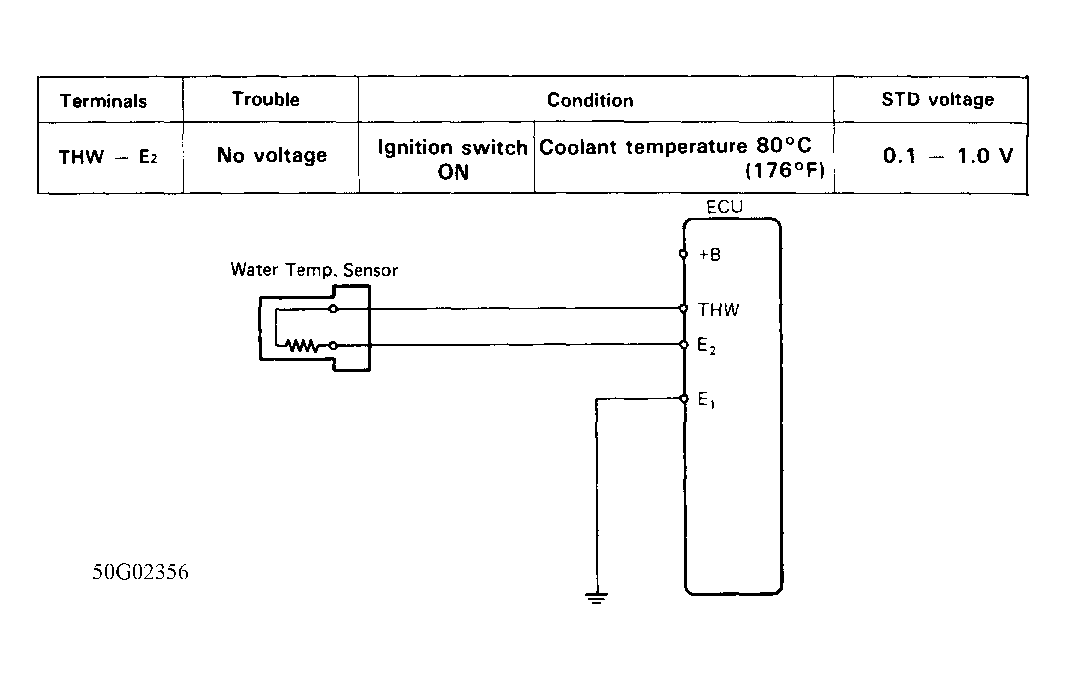

Fig 1: No. 4 Test, Code 22 Schematic, Coolant Temp. Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

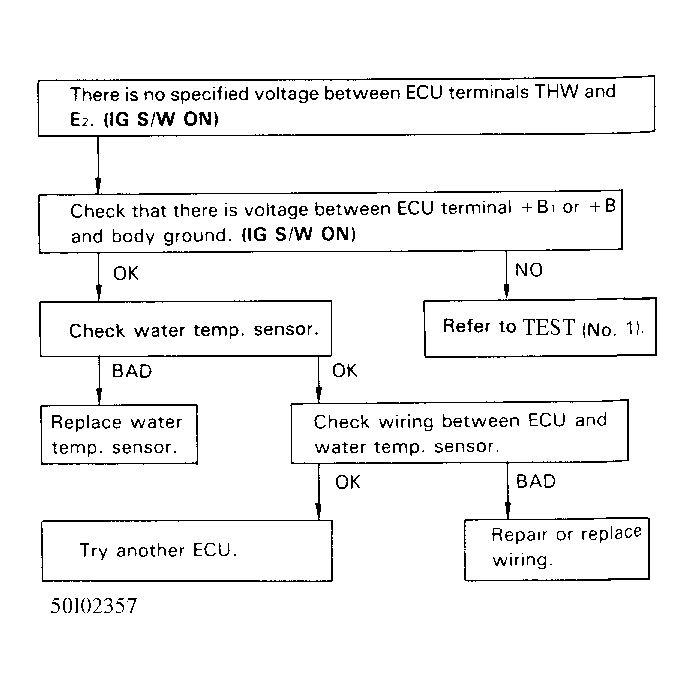

Fig 2: No. 4 Test, Code 22 Flow Chart, Coolant Temp. Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

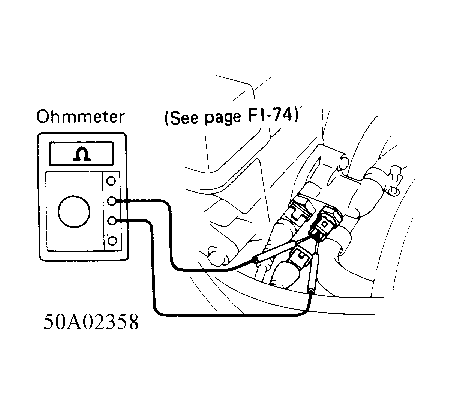

Fig 3: No. 4 Test, Code 22, Water Temp. Sensor Test

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
