No. 6 Test, Code 25, 26, O2 Sensor Signal

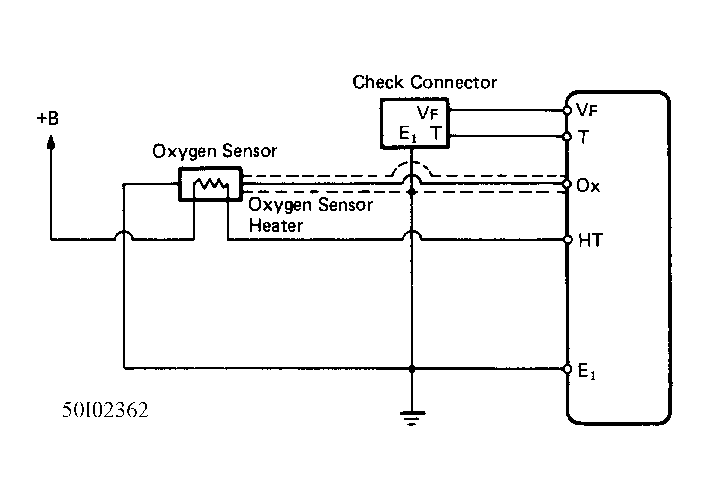

Fig 1: No. 6 Test, Code 25, 26 Schematic, O2 Sensor Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

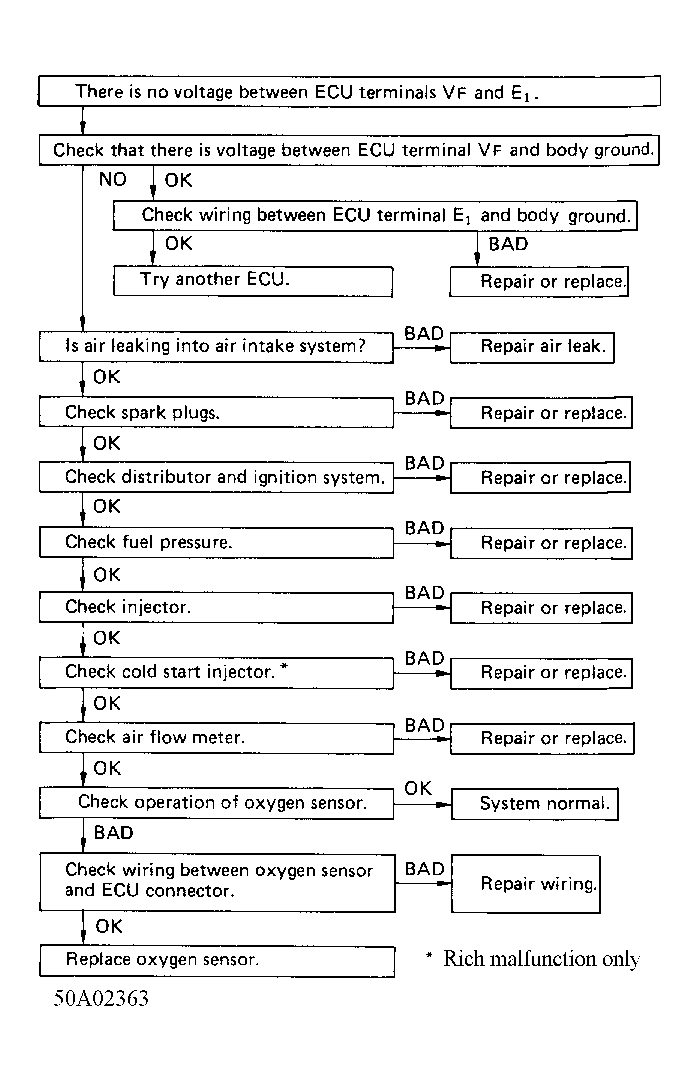

Fig 2: No. 6 Test, Code 25, 26 Flow Chart, O2 Sensor Signal

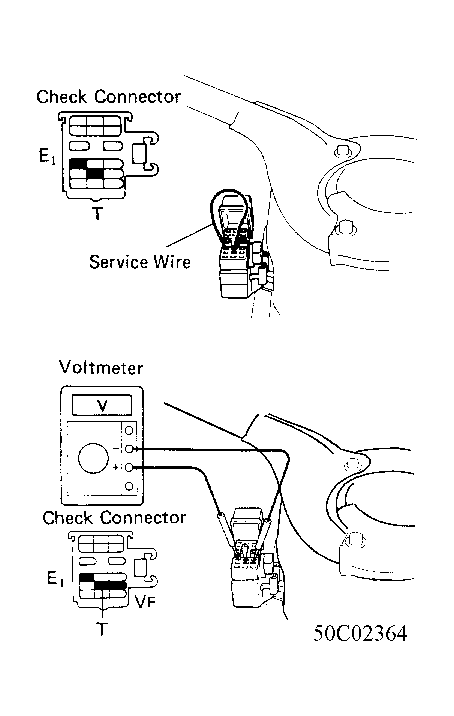

Fig 3: No. 6 Test, Code 25, 26, O2 Sensor Check
