No. 8 Test, Code 41, TPS Signal

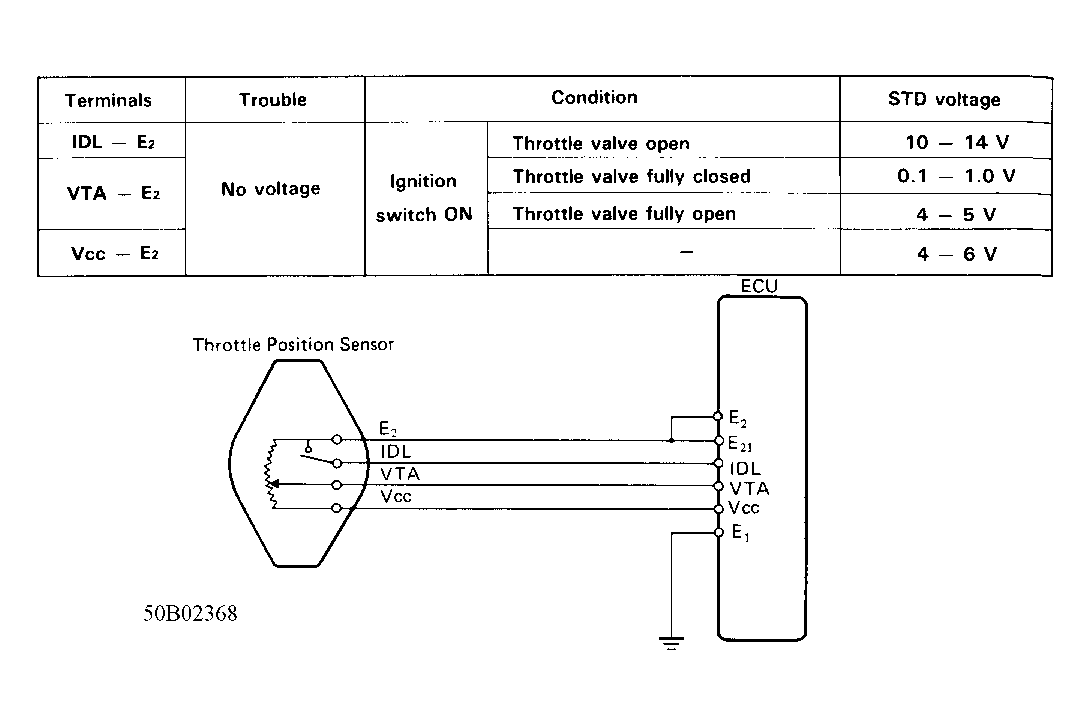

Fig 1: No. 8 Test, Code 41 Schematic, TPS Signal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

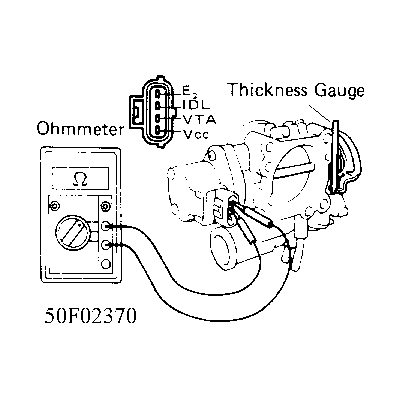

Fig 2: No. 8 Test, Code 41, TPS Sens. Check

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

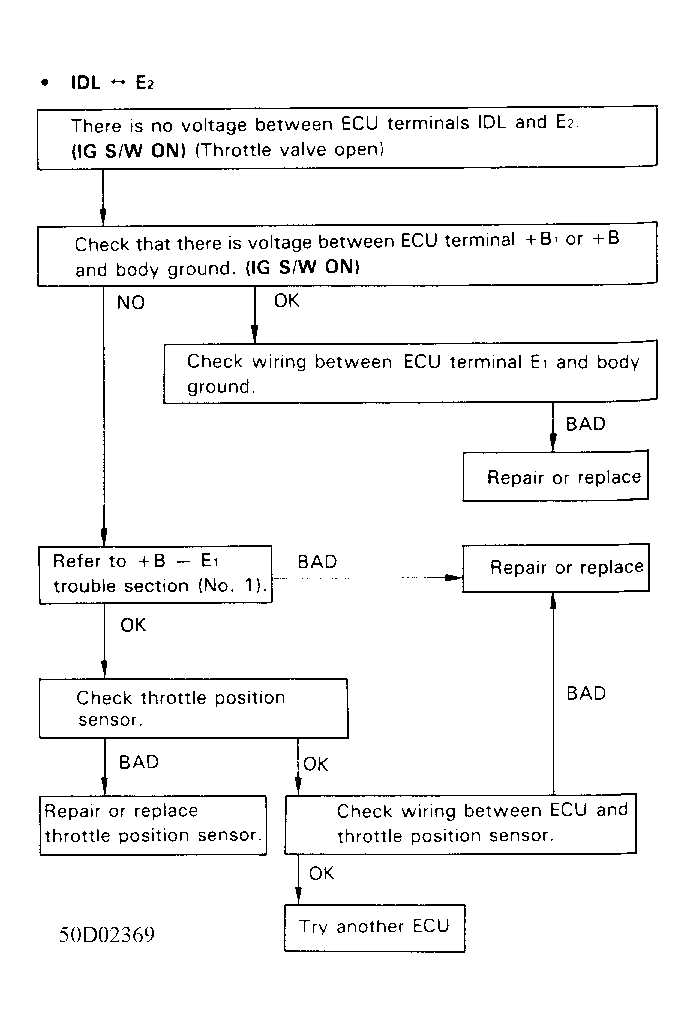

Fig 3: No. 8 Test, Code 41, TPS Signal, Flow Chart (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

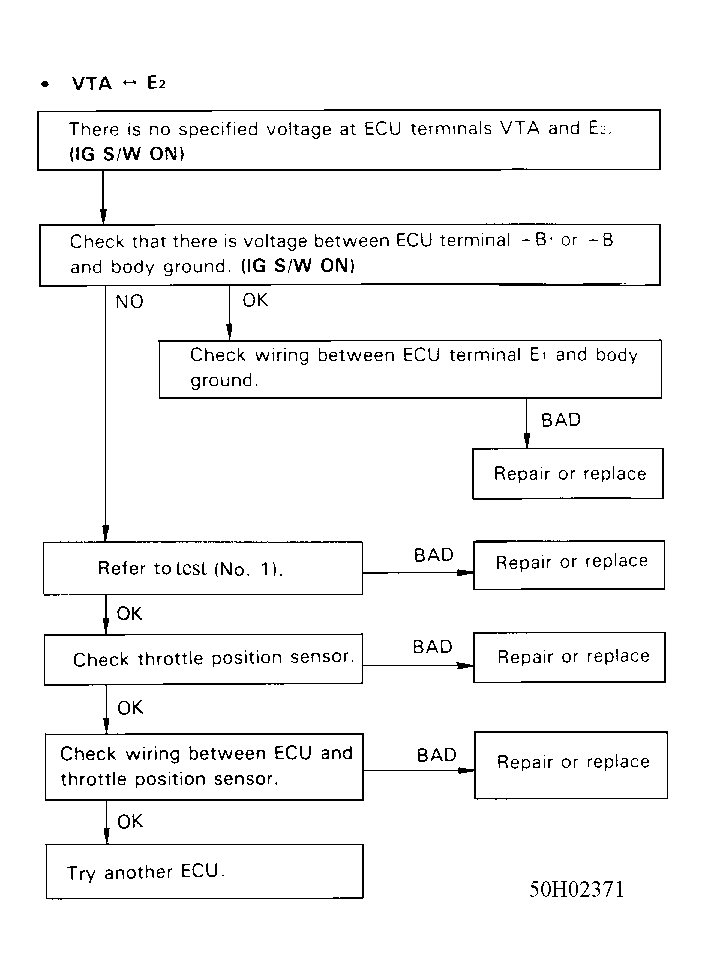

Fig 4: No. 8 Test, Code 41, TPS Signal, Flow Chart (2 of 3)

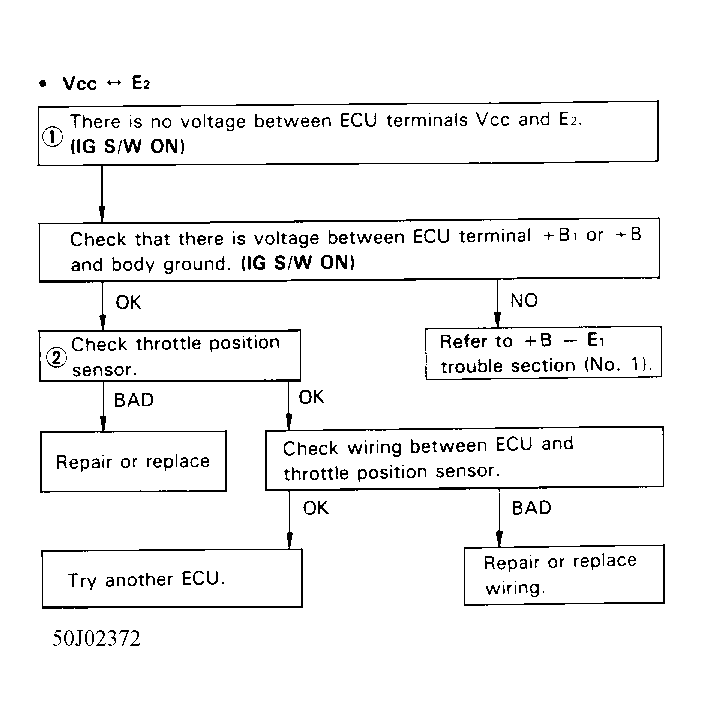

Fig 5: No. 8 Test, Code 41, TPS Signal, Flow Chart (3 of 3)
