Wiring Diagrams

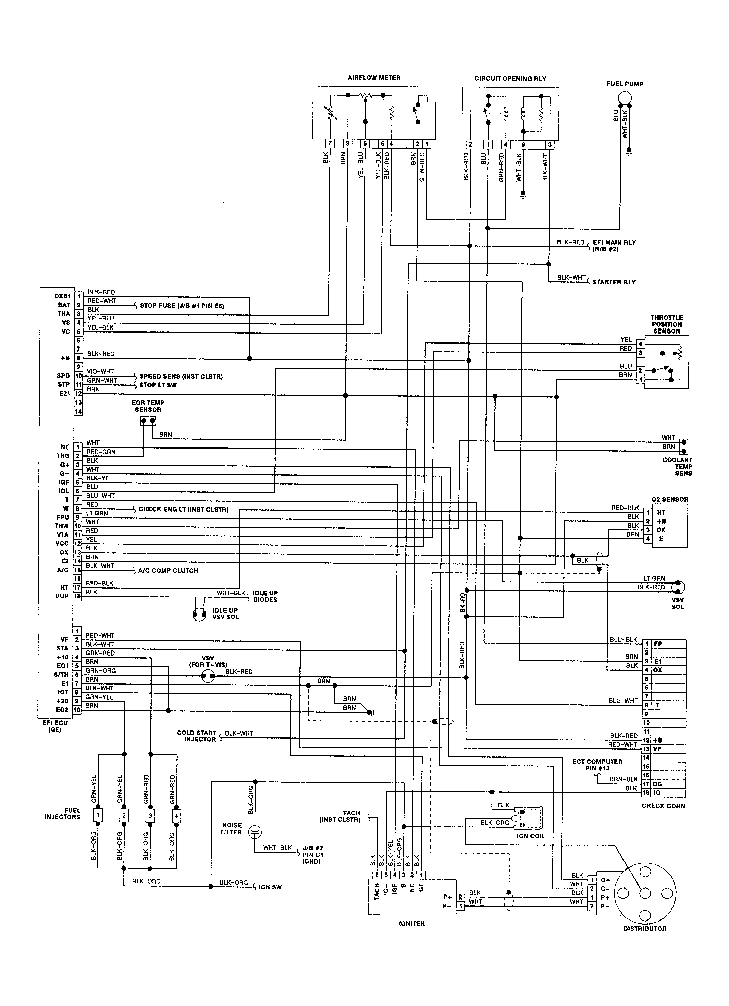

Fig 1: Exc. FX-16 Wiring Diagram
G95448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

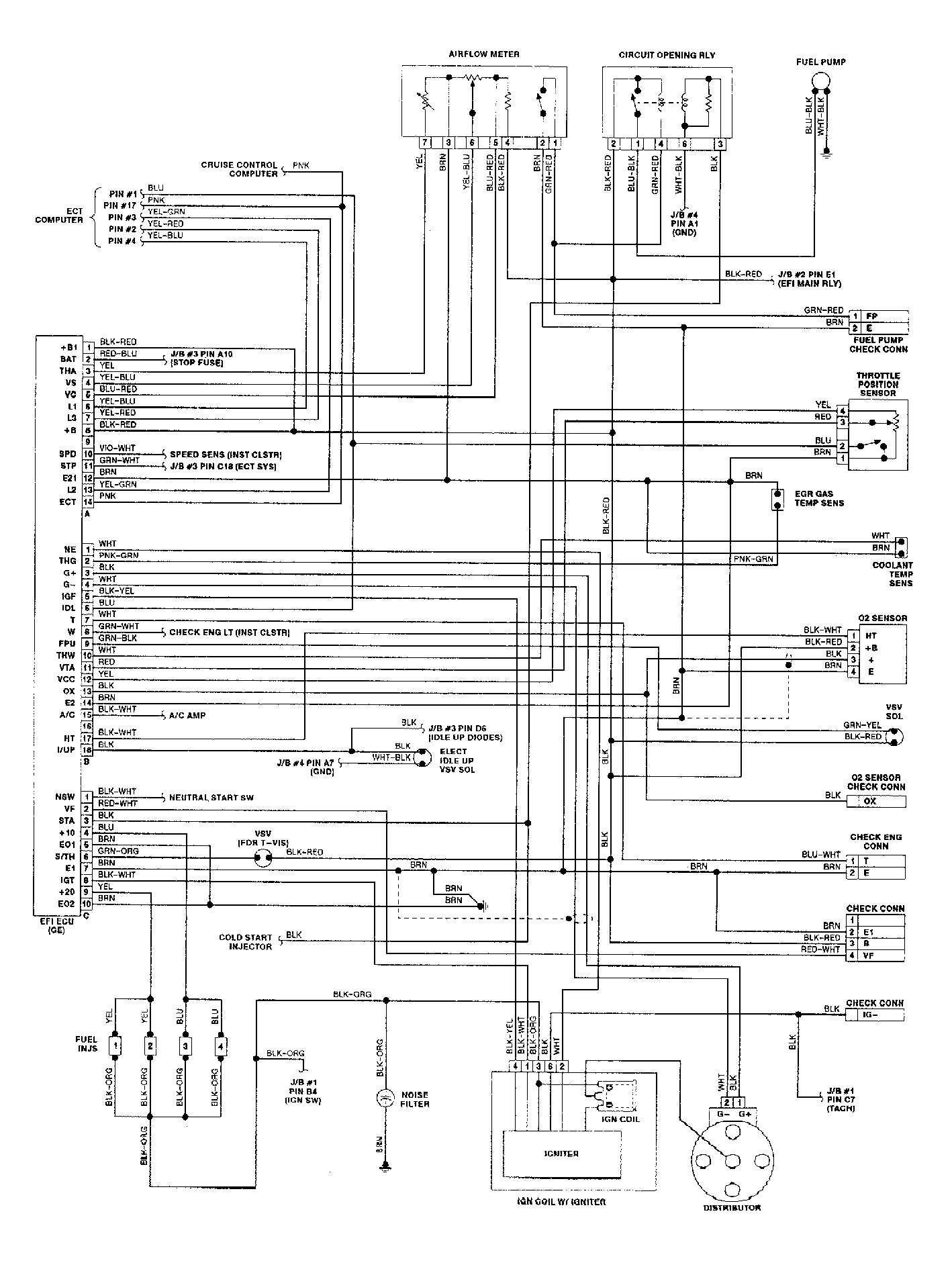

Fig 2: FX-16 Wiring Diagram
G95449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
