Ecu Connector I.D.

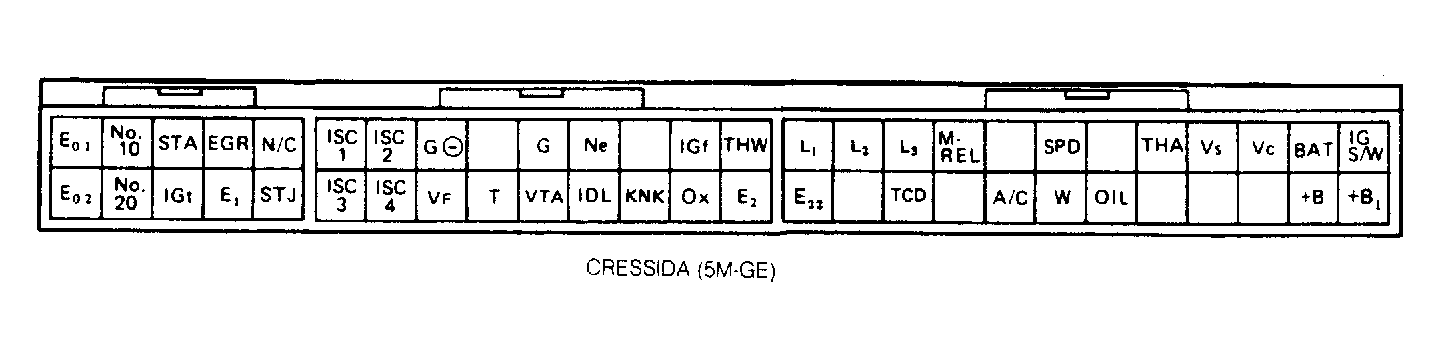

Fig 1: 5M-GE ECU Connector Pin Identification
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
