Injector Solenoid Resistor

  1. Turn ignition off. Unplug injector solenoid resistor. Check resistance between terminal + B and other terminals. See Fig 1. Resistance should be 2 Ohms.
  2. If resistance is not as specified, replace solenoid resistor. Solenoid resistor is located on left fenderwell.

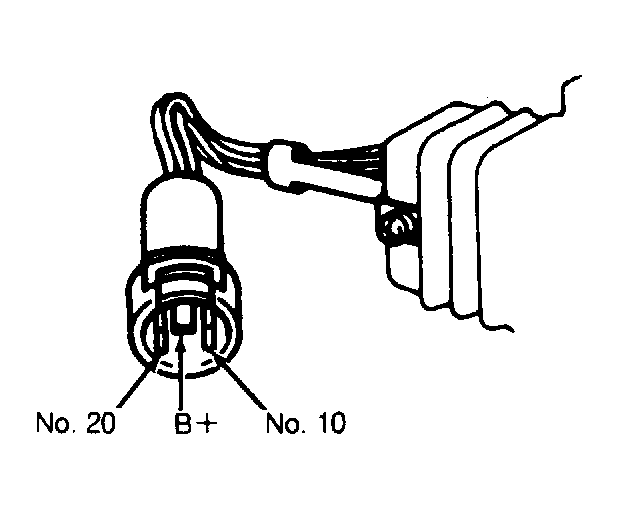

Fig 1: Injector Solenoid Connector I.D.
G95429Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
