Neutral/Start Switch Check

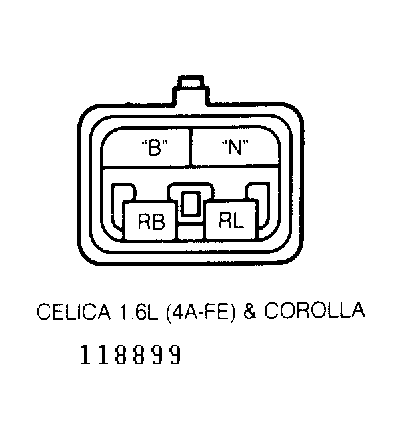

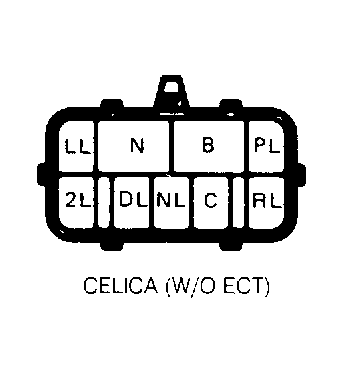

Unplug switch connector at transmission or transaxle. Note terminal identification. Using ohmmeter, check for continuity at specified terminals with gearshift in correct range. Refer to the NEUTRAL/START SWITCH SPECIFICATIONS table.
NEUTRAL/START SWITCH SPECIFICATIONS
| Gearshift Position | Continuity | |
|---|---|---|
| 3S-FE Engine | ||
| "R" | RB & RL | |
| "P" | N & B | |
| "N" | N & B | |
| 3S-GE Engine | ||
| "P" | B & N, PL & C | |
| "R" | C & RL | |
| "N" | B & N, NL & C | |
| "D" | C & DL | |
| "2" | C & 2L | |
| "L" | C & LL | |
