Master Switch

Inspect switch between terminals. See Fig 1. If continuity is not as specified, replace the master switch.

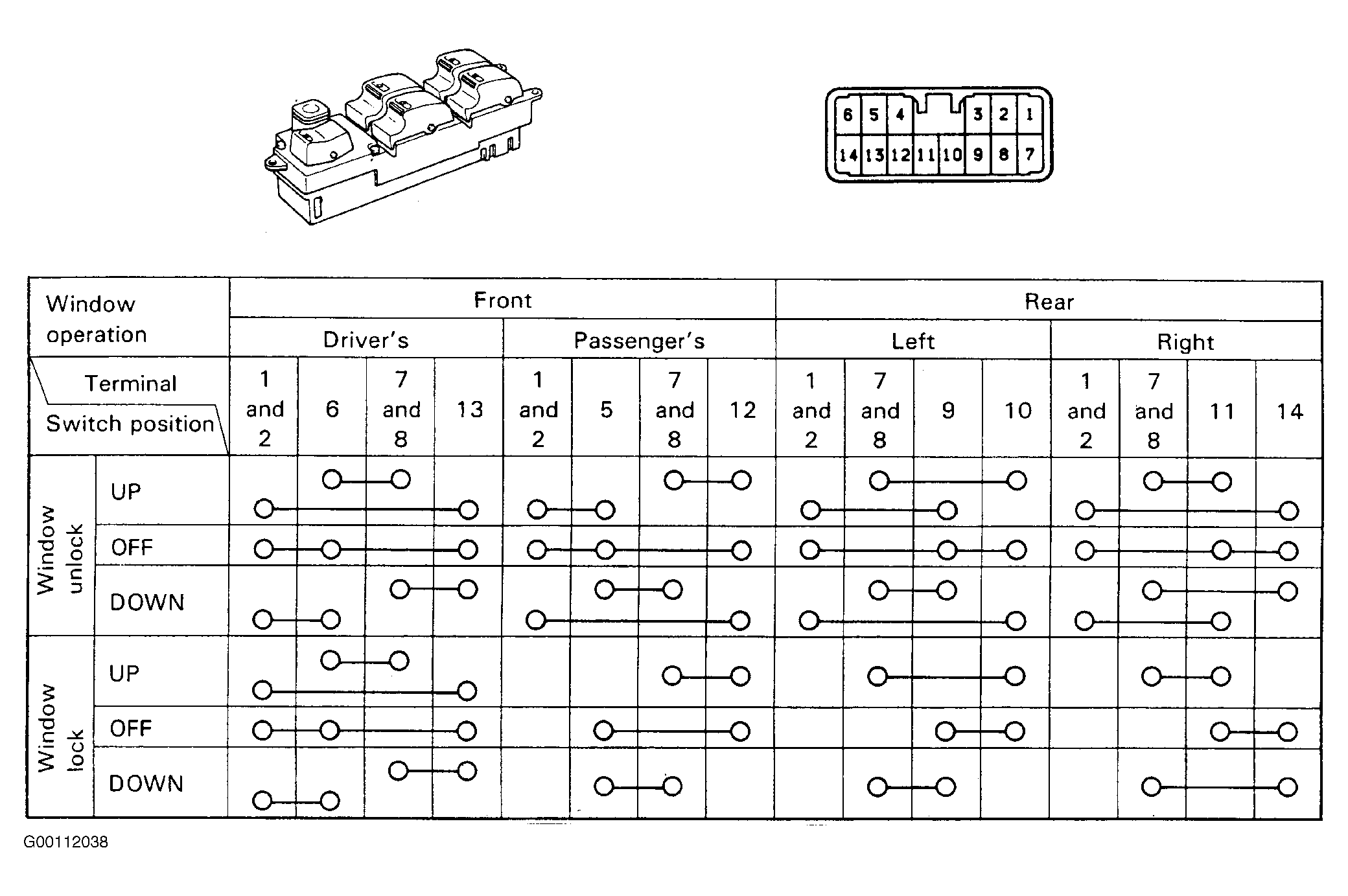

Fig 1: Testing Master Switch Continuity
G00112038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
