Passenger Window Control Switch

Inspect the switch continuity between specified terminals. See Fig 1. If continuity is not as specified, replace the switch.

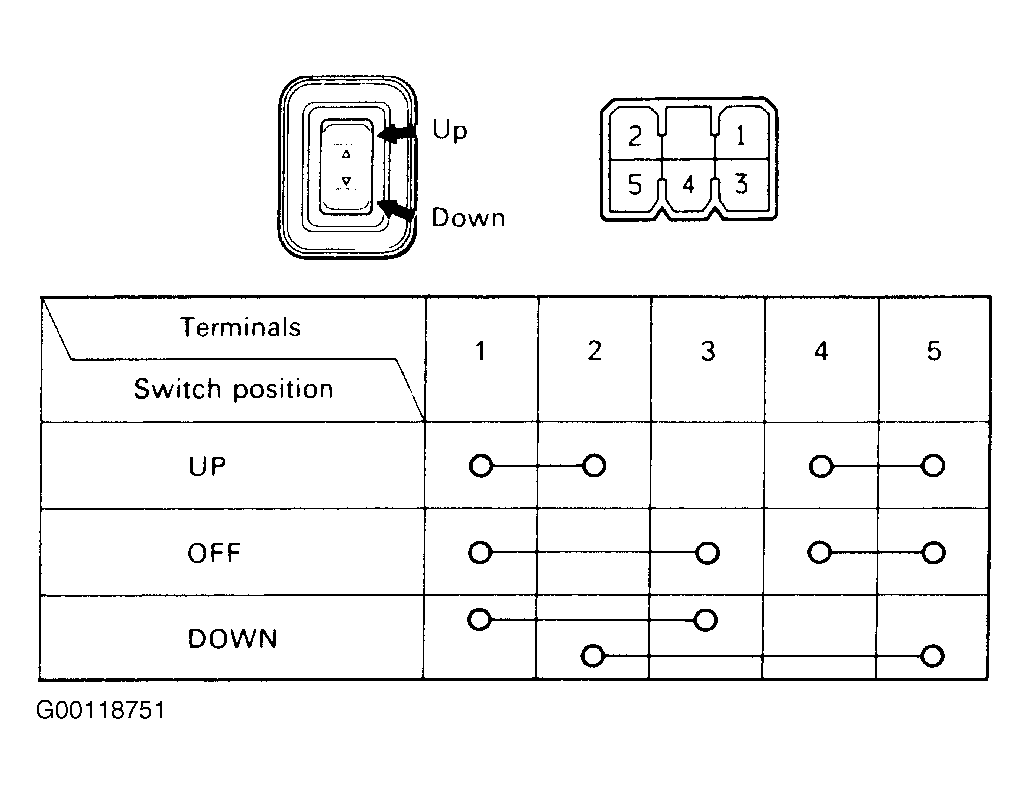

Fig 1: Testing Passenger Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
