Ignition Timing

IGNITION TIMING - Degrees BTDC @ RPM

Application Base Timing (1) Advance Timing
1.6L 10 @ Idle 5-15 @ Idle
2.0L 10 @ 750 14-19 @ Idle
2.2L 10 @ 700 13-22 @ Idle
(1) With check connector terminals TE1 and E1 jumpered.

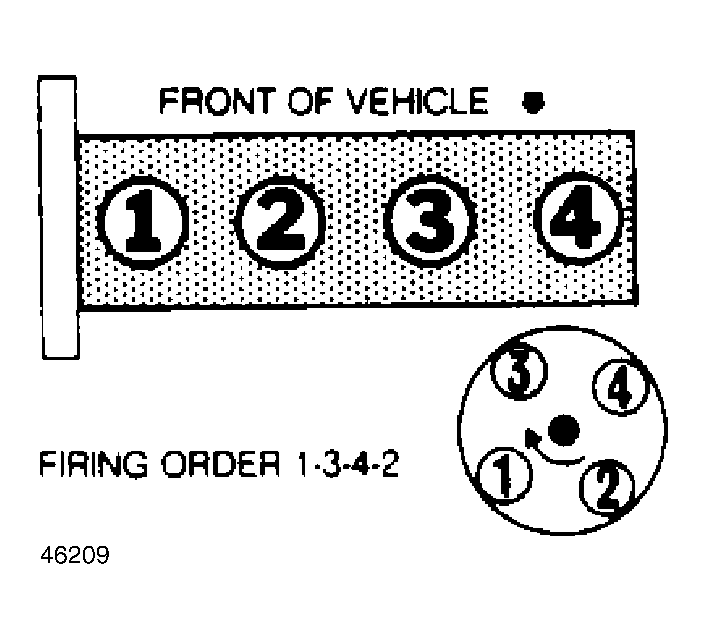

Fig 1: Firing Order & Distributor Rotation
G46209Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
