Ignition Timing

IGNITION TIMING - Degrees BTDC @ RPM

Application

Base Timing ⁽¹⁾

Advance Timing

4A-FE

10 @ 800

5-15 @ Idle

4A-GE

10 @ 800

16 @ Idle

⁽¹⁾	With check connector terminals TE1 and E1 jumpered.

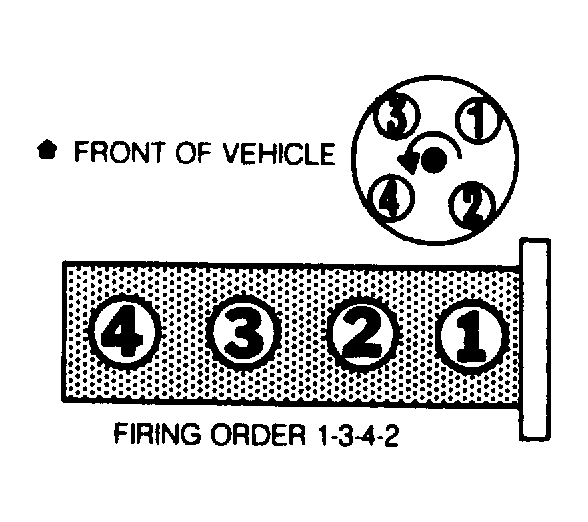

Fig 1: Firing Order & Distributor Rotation
