Power Main Relay

Inspect power main relay continuity between specified terminals. See Fig 1. If continuity is not as specified, replace relay.

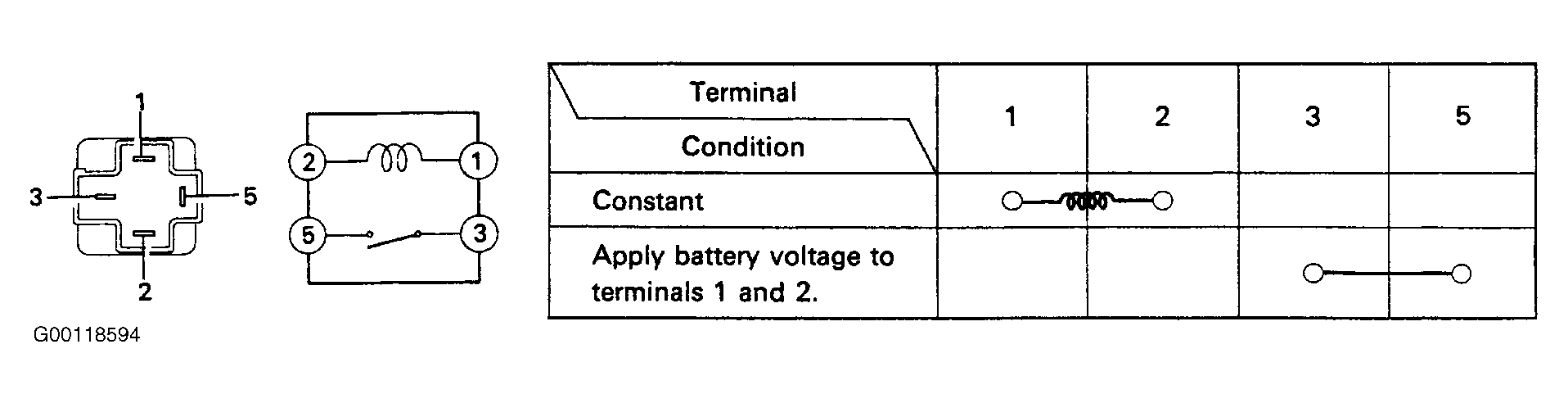

Fig 1: Testing Power Main Relay Continuity
G00118594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
