Master Switch Illumination

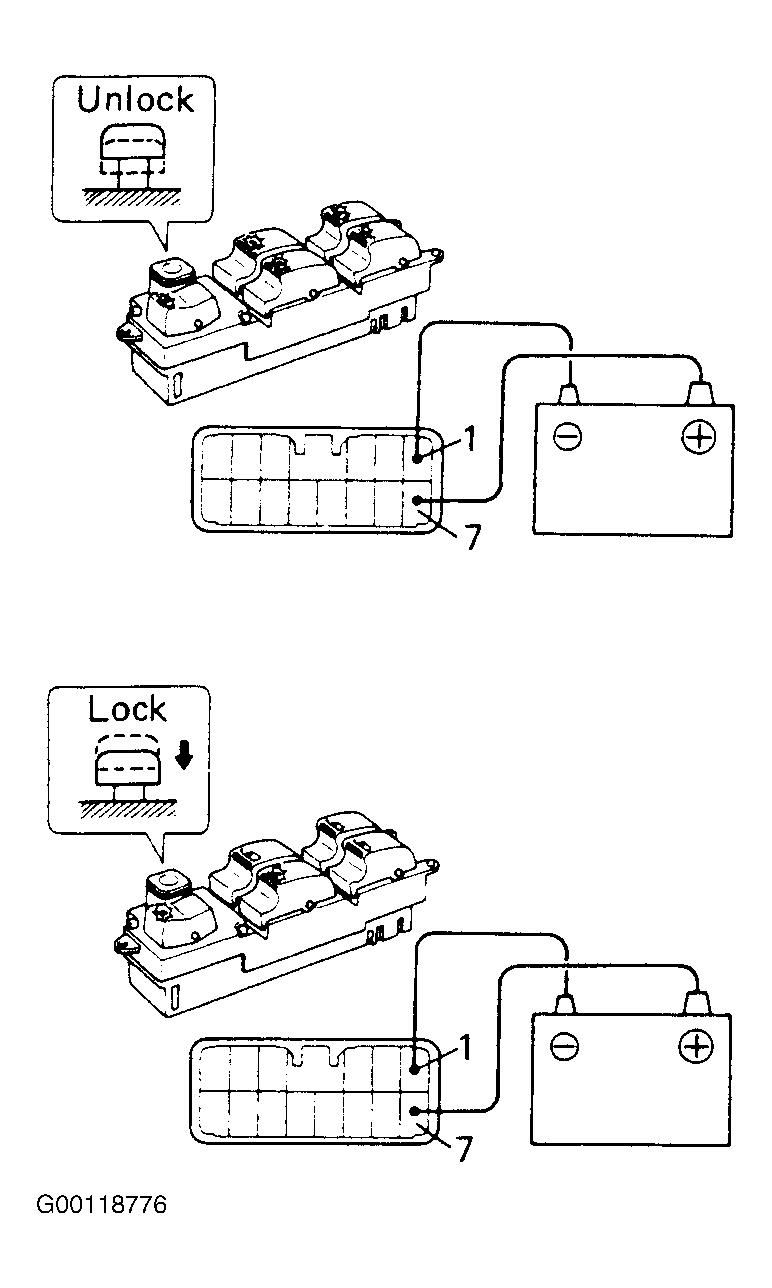

Set window lock switch to unlock position. Connect a lead from the positive terminal of the battery to switch terminal No. 7 and ground to terminal No. 1. See Fig 1. Ensure window control switches illuminate. Ensure that when window lock switch is depressed, illumination on passenger window control switches go off. If illumination is not as specified, replace switch.
