Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

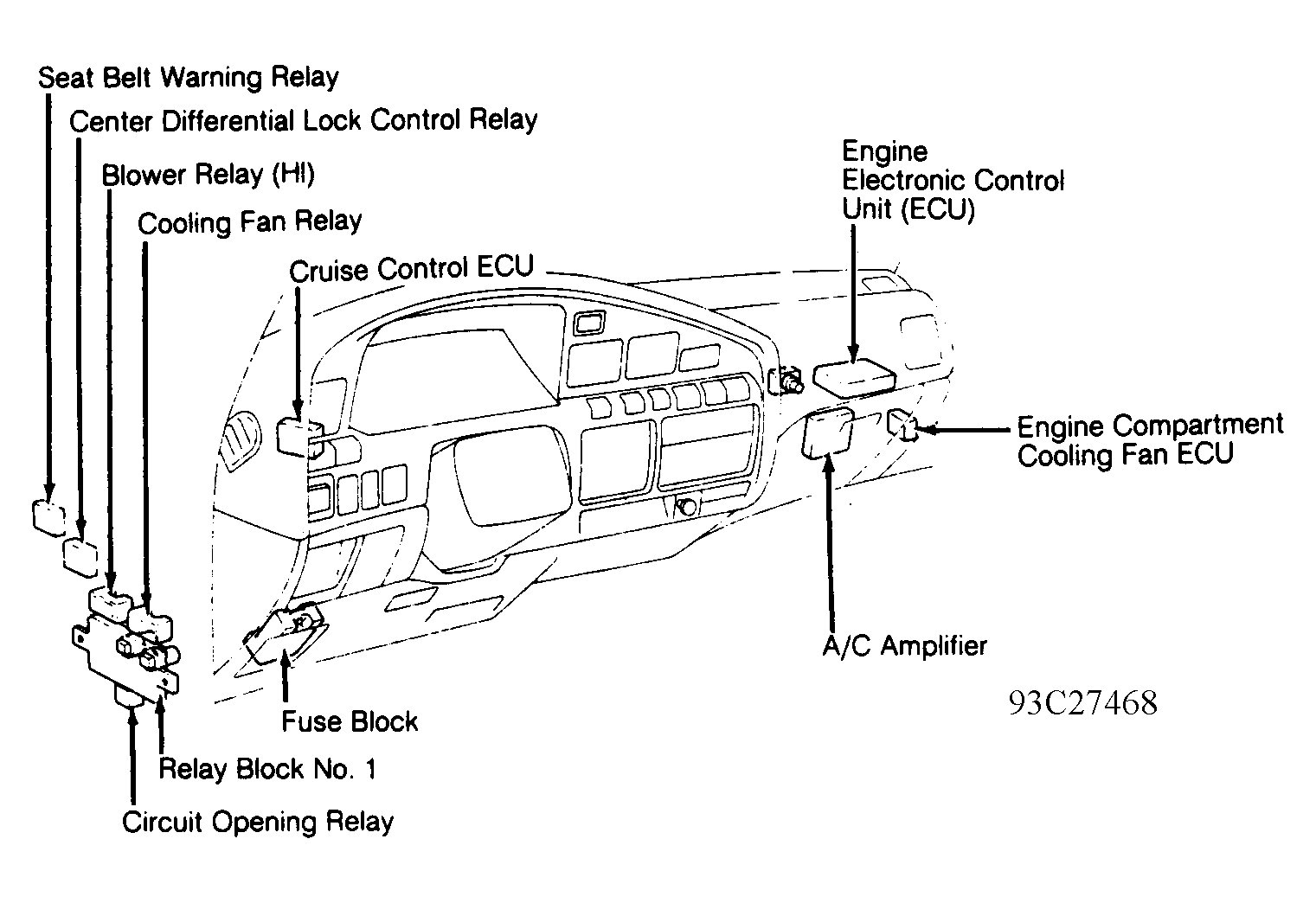

| Cruise Control ECU | Behind left side of instrument panel, left of cluster. See Figure. |

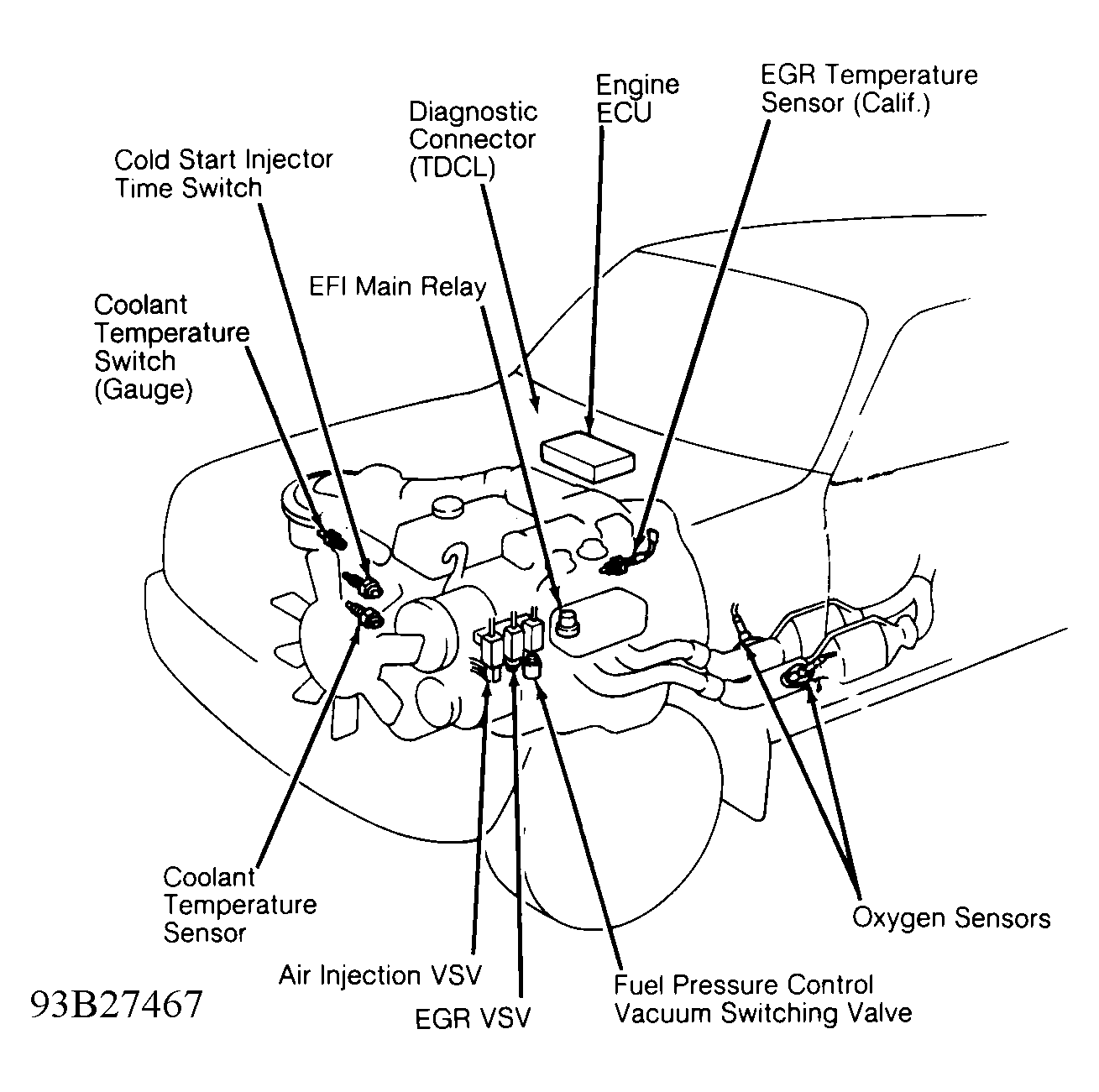

| Engine Electronic Control Unit (ECU) | Above glove box. See Figure & Figure . |
| Engine Compartment Cooling Fan Control Unit | At right side of glove box. See Figure. |
| Shift Lock ECU (A/T) | Under center console, near gearshift lever. |
