System Operation Check

After identifying power window problem, perform appropriate component test. See COMPONENT TESTS .

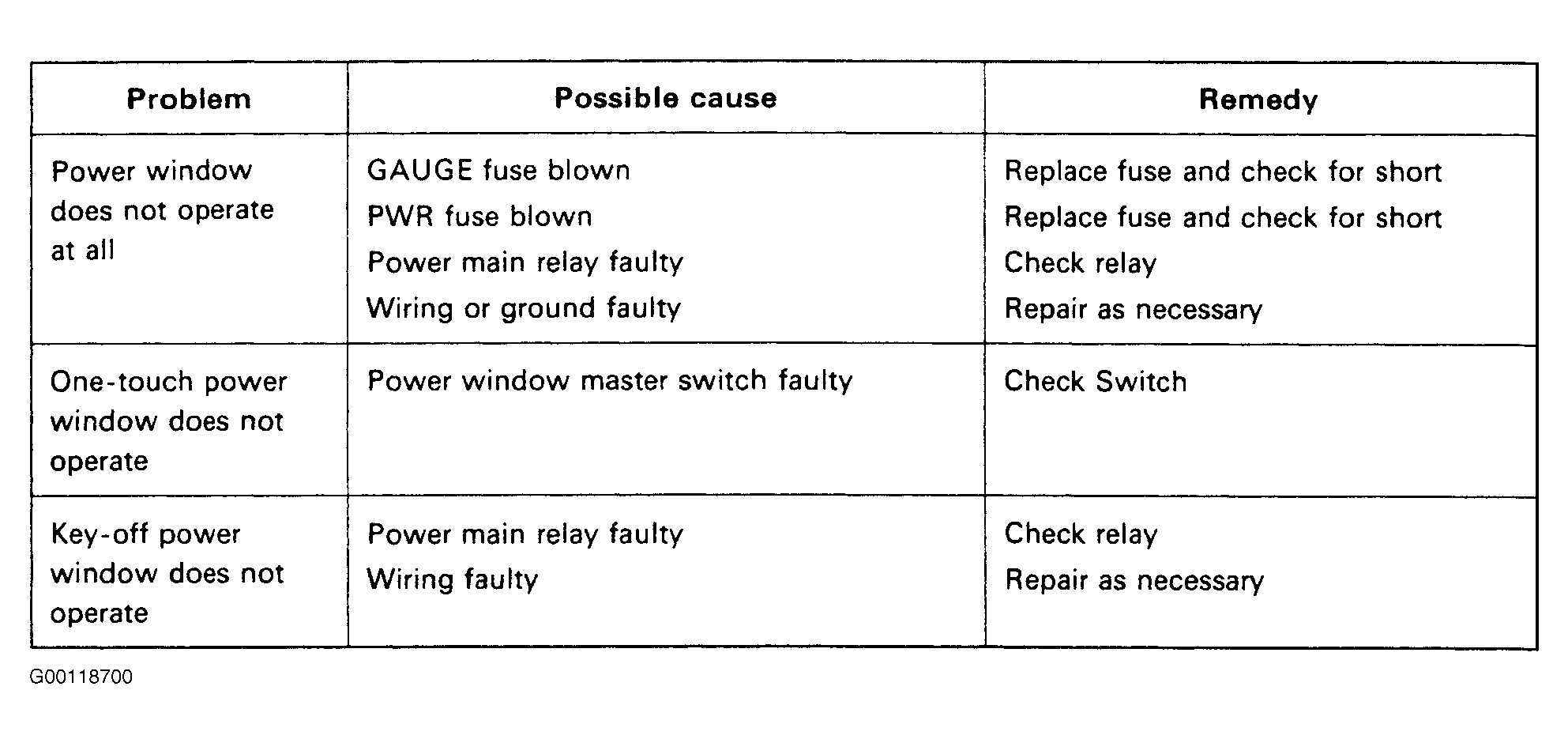

Fig 1: Trouble Shooting Power Window System
G00118700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
