Pick-Up Coil Air Gap

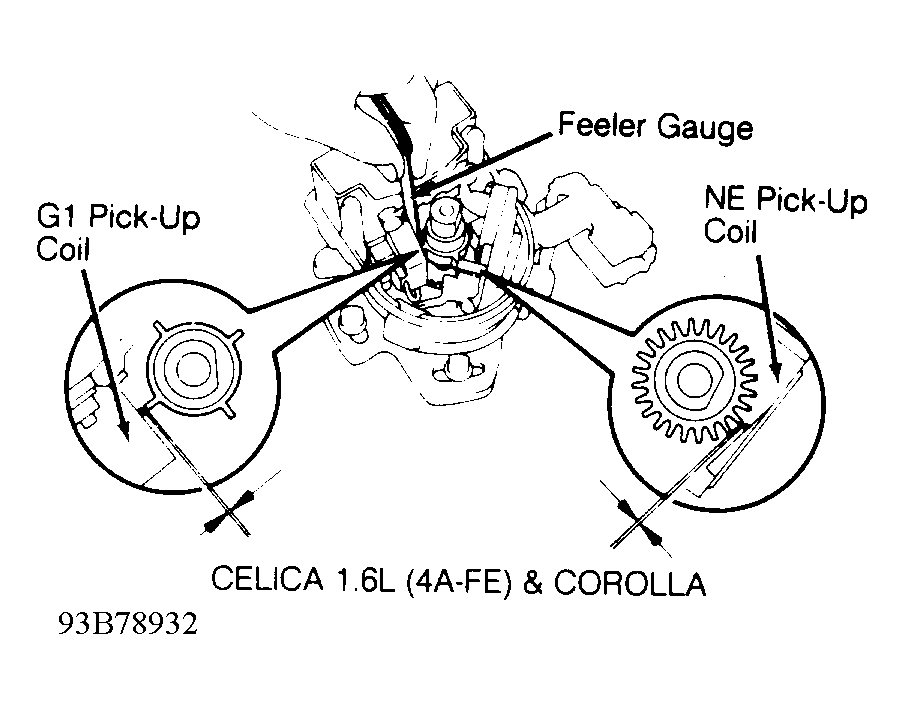

- Using a flat, non-magnetic feeler gauge, check air gap between signal rotor and pick-up coil projection. See Fig 1.
- Replace distributor assembly if pick-up coil air gap is not within specification. See PICK-UP COIL AIR GAP SPECIFICATIONS table.
PICK-UP COIL AIR GAP SPECIFICATIONS
| Application | In. (mm) |
|---|---|
| Corolla | .008-.016 (.20-.40) |
