DTC 14 - Ignition Signal

DTC 14 - IGNITION SIGNAL TROUBLE

Terminal	Trouble	Condition	STD Voltage
IGT-E1	No Voltage	Idling	Pulse Generation

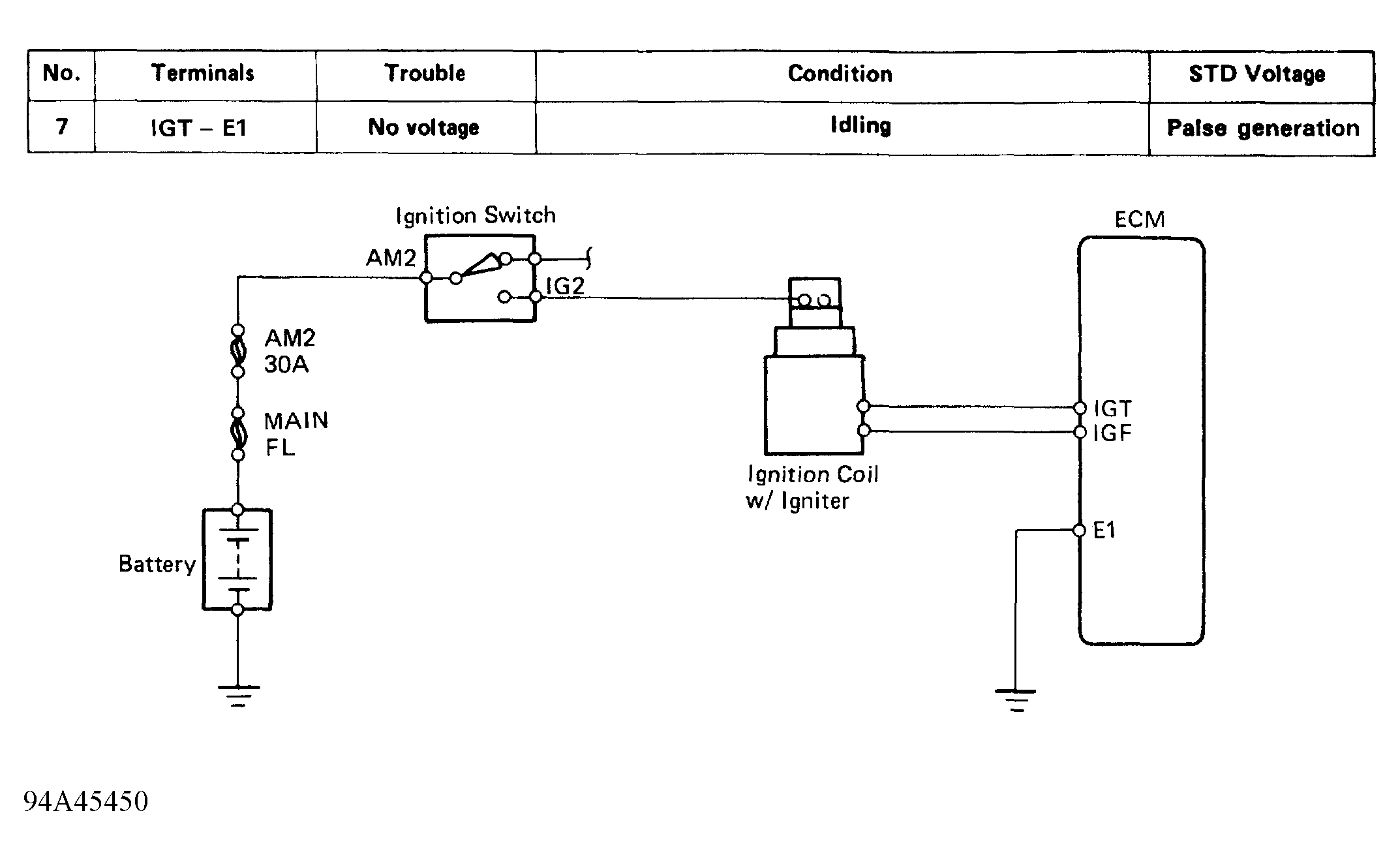

Fig 1: DTC 14 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

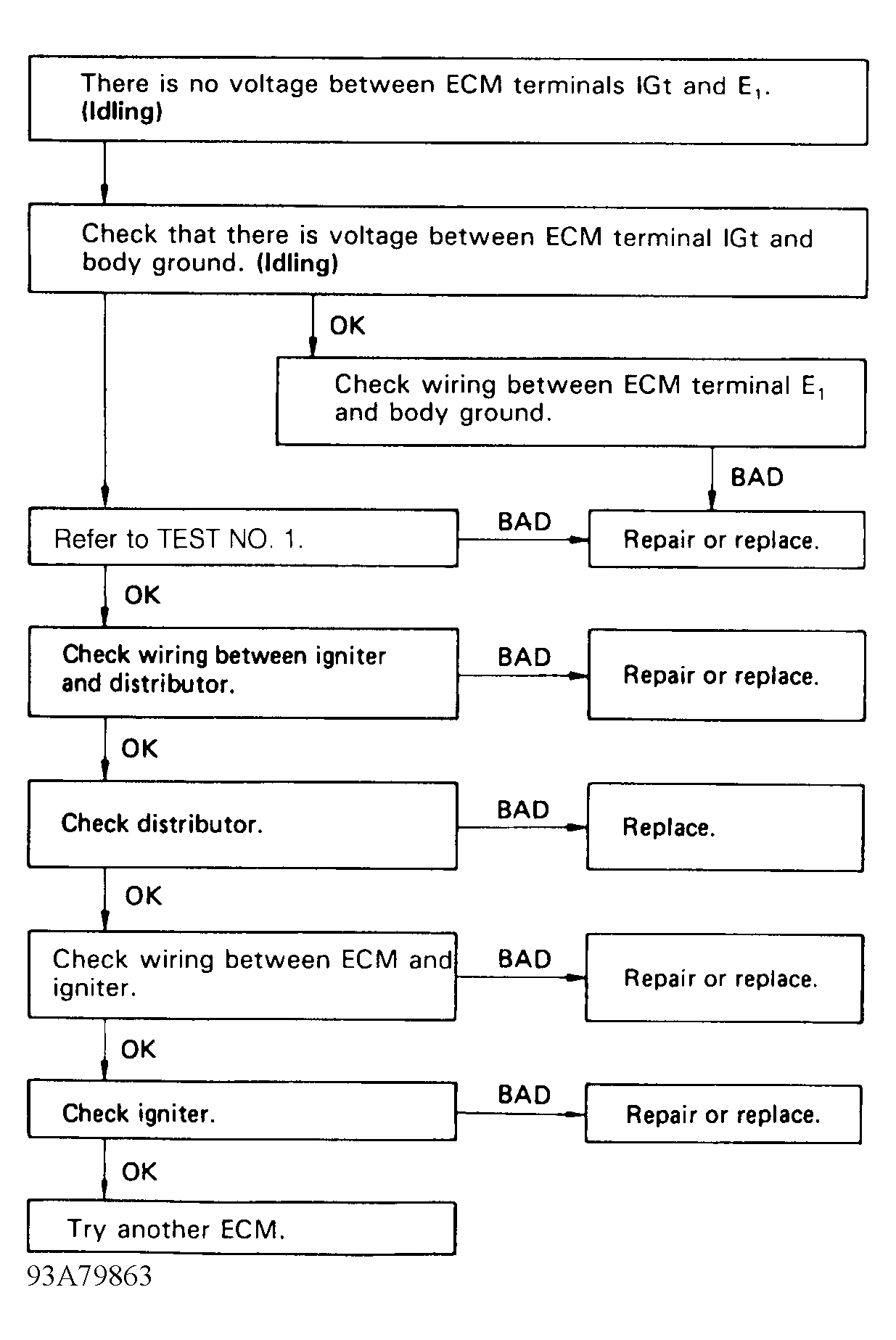

Fig 2: DTC 14 - Diagnostic Flowchart
