DTC 41 - Throttle Position Sensor

DTC 41 - THROTTLE POSITION SENSOR TROUBLE

Terminal	Trouble	Ignition Switch	Condition	STD Voltage
IDL-E1(E21)	No Volts	ON	Throttle Valve open	9-14V
Vc-E1 (E21)	"	ON	All	4.5-5.5V
VTA-E1(E21)	"	ON	Throttle valve fully closed	0.3-0.8V
"	"	ON	Throttle valve fully open	3.2-4.9V

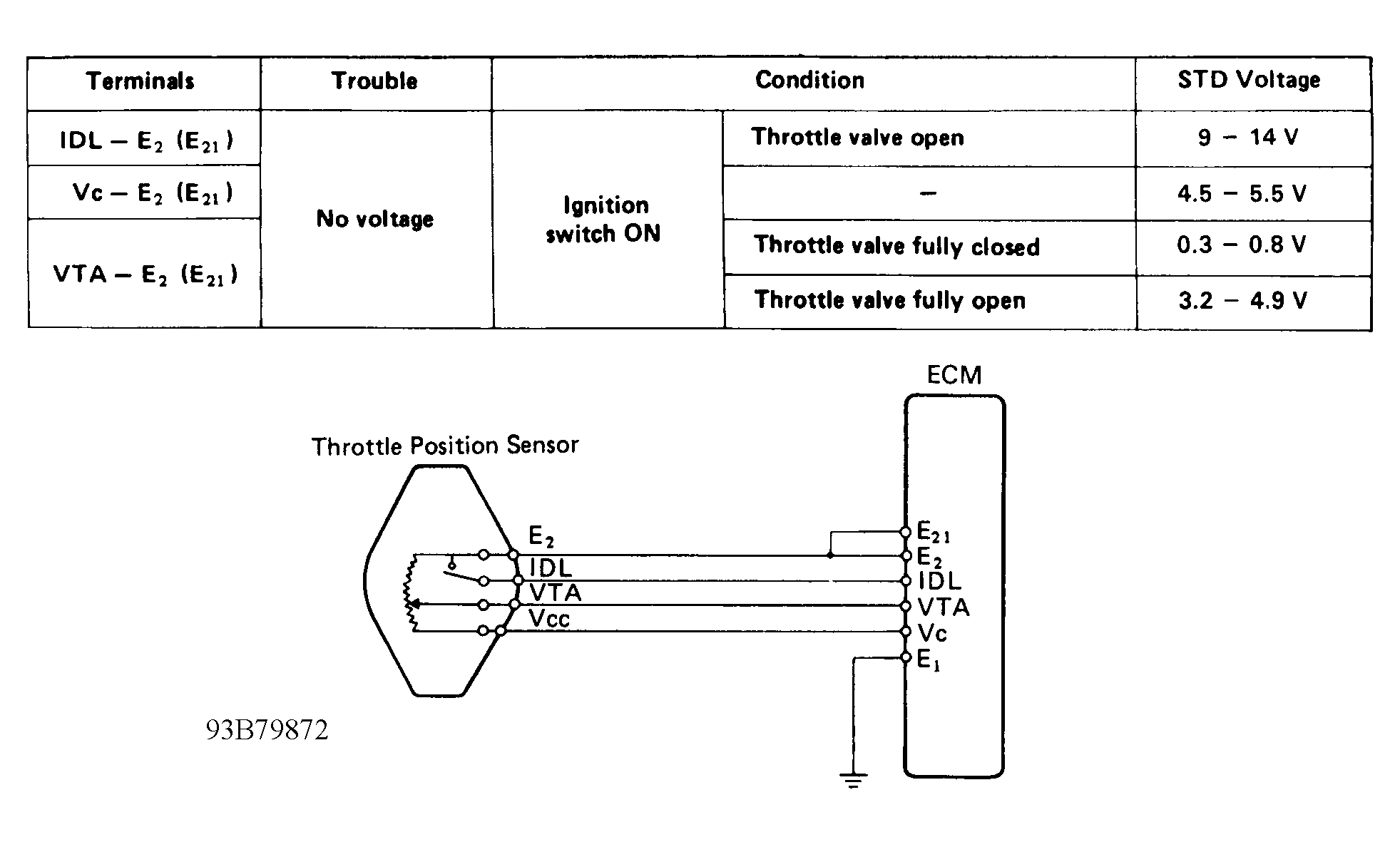

Fig 1: DTC 41 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

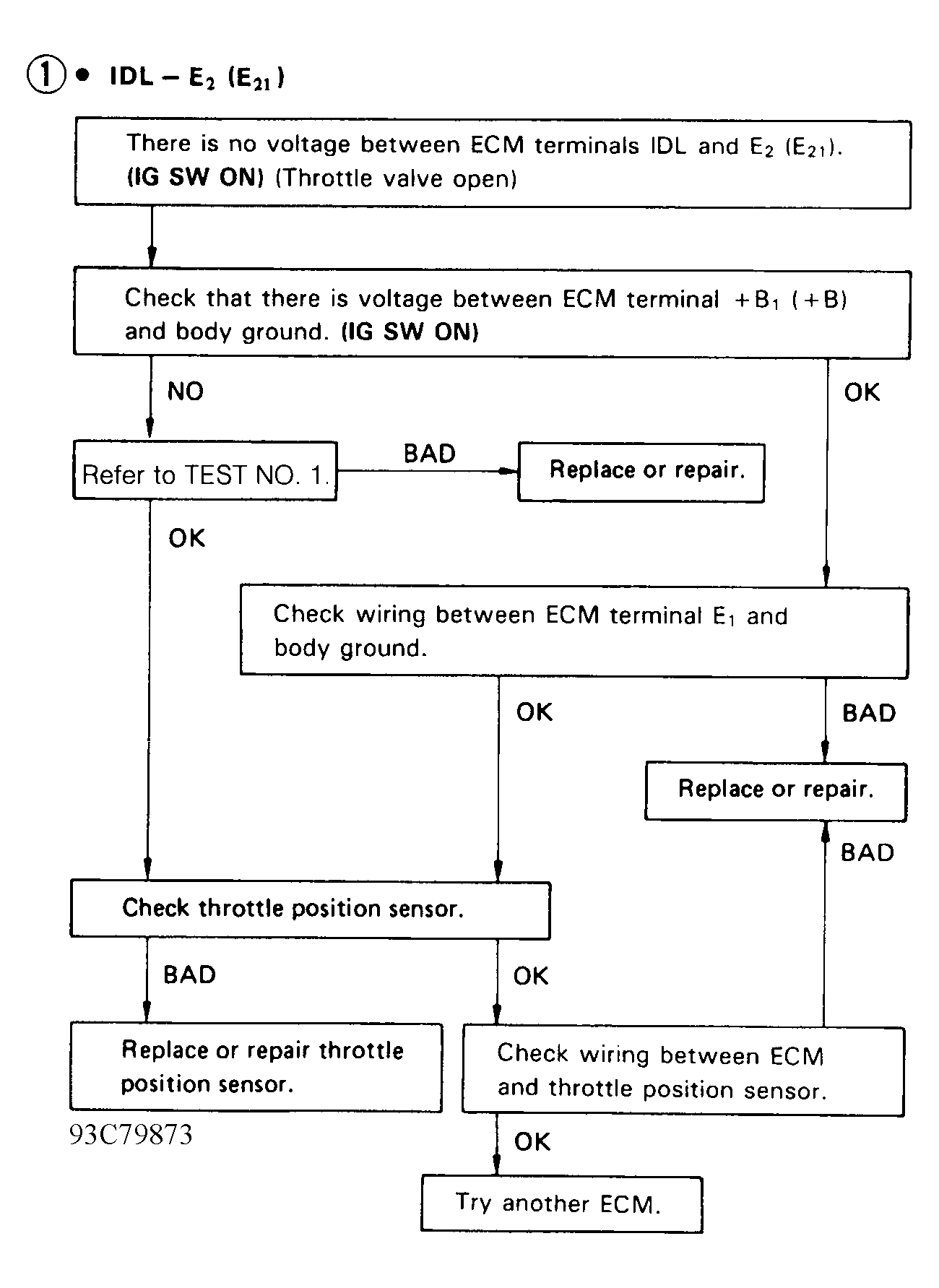

Fig 2: DTC 41 - Diagnostic Flowchart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

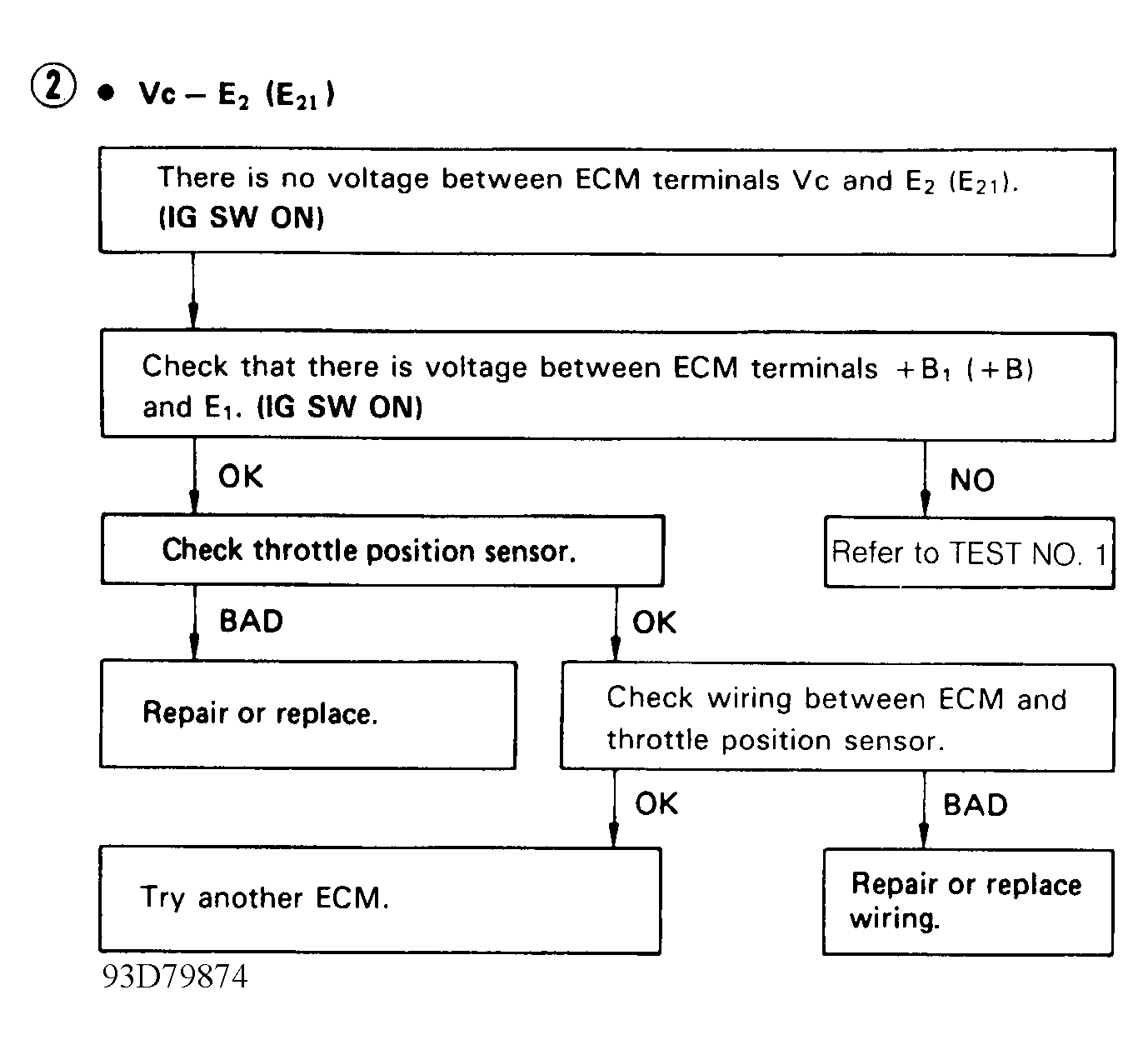

Fig 3: DTC 41 - Diagnostic Flowchart (2 Of 3)

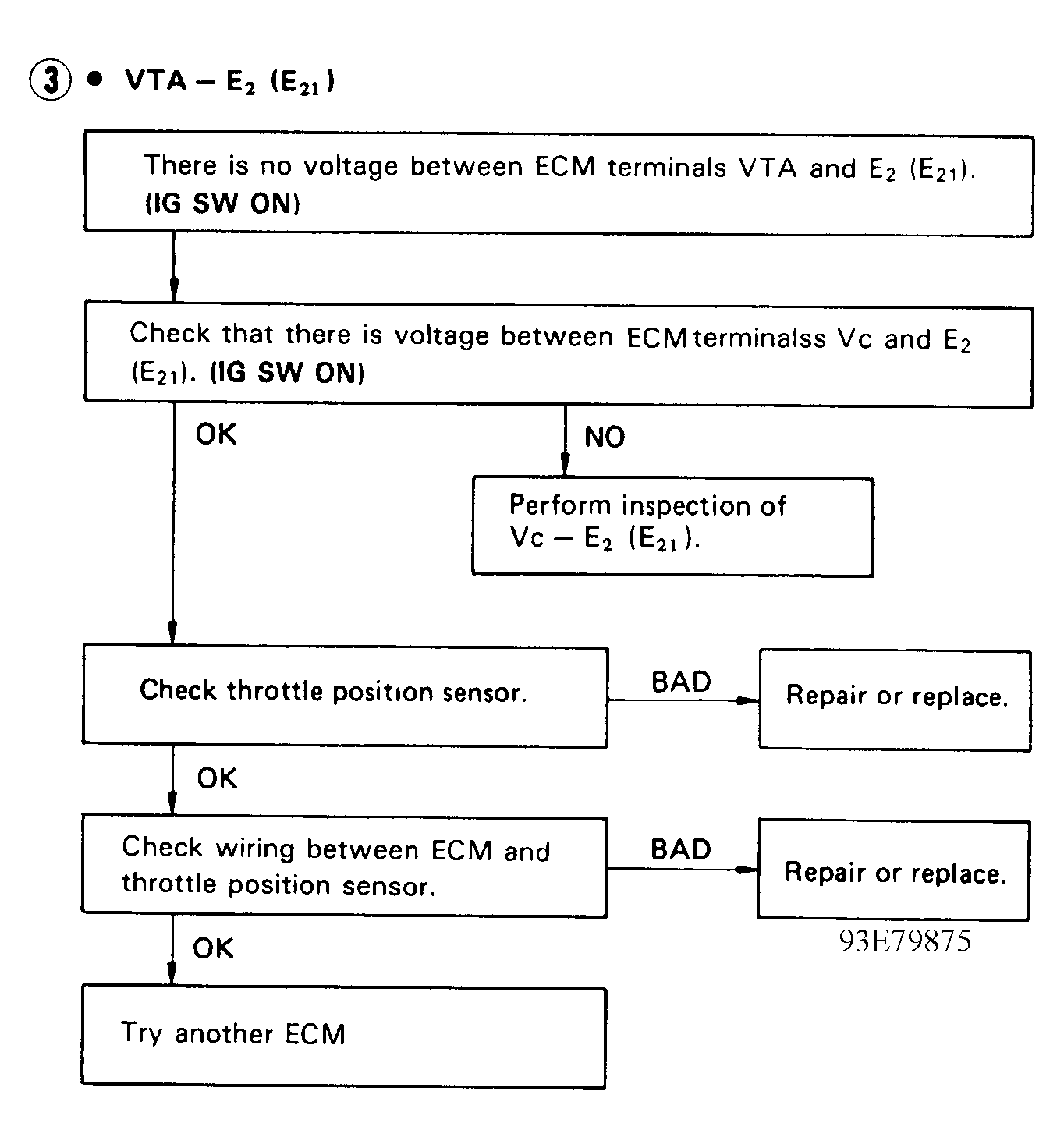

Fig 4: DTC 41 - Diagnostic Flowchart (3 Of 3)
