Exhaust Gas RECIRCULATION (EGR): Notes
NOTE:

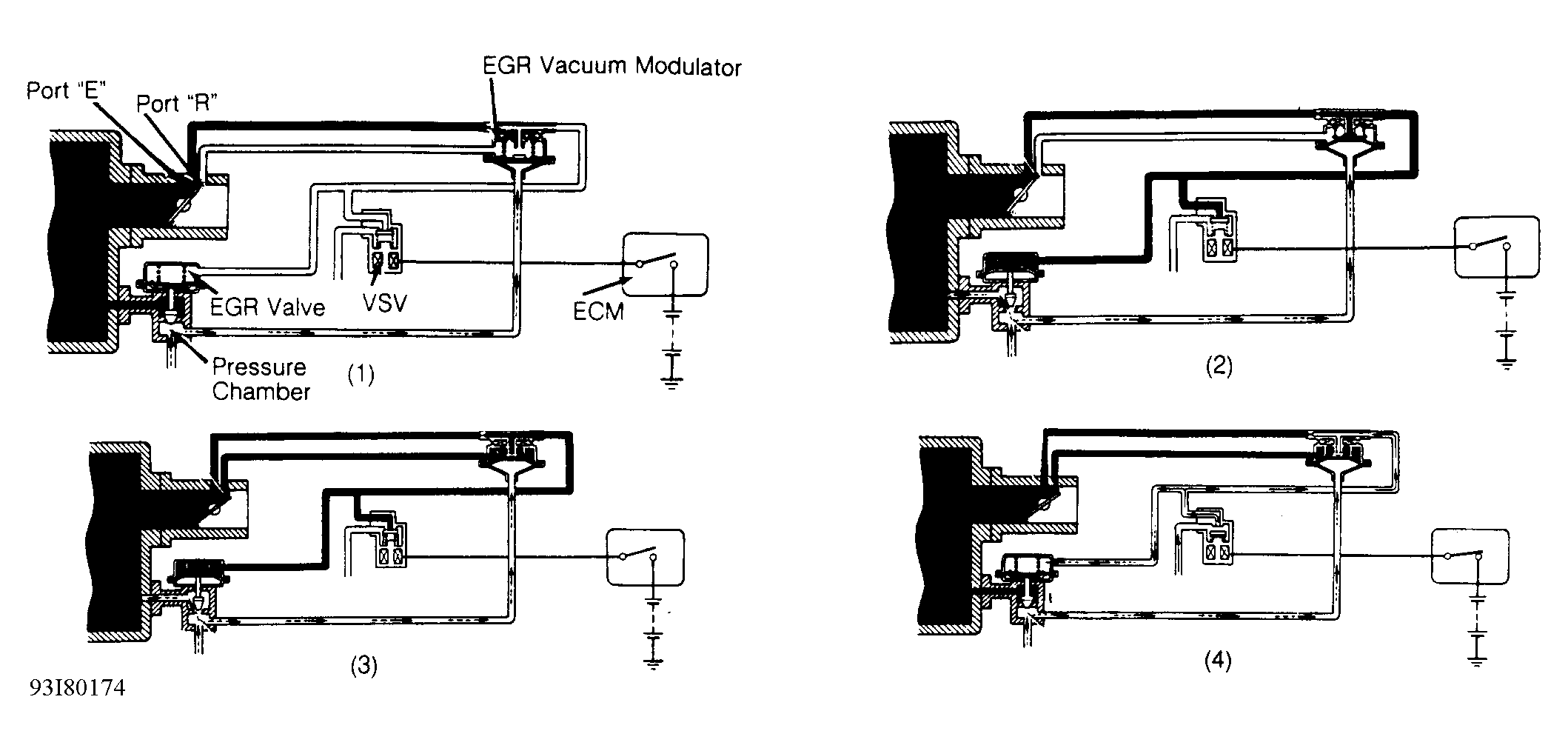

EGR systems contain different components and have different operating parameters depending on application. See Figure-24. When testing EGR system and components, use proper illustration to determine component location.
