ECM Power Source Circuit Check

When ignition switch is turned on, battery positive voltage is applied to ignition coil, closing contacts in EFI main relay and supplying power to terminals +B and +B1 of ECM.

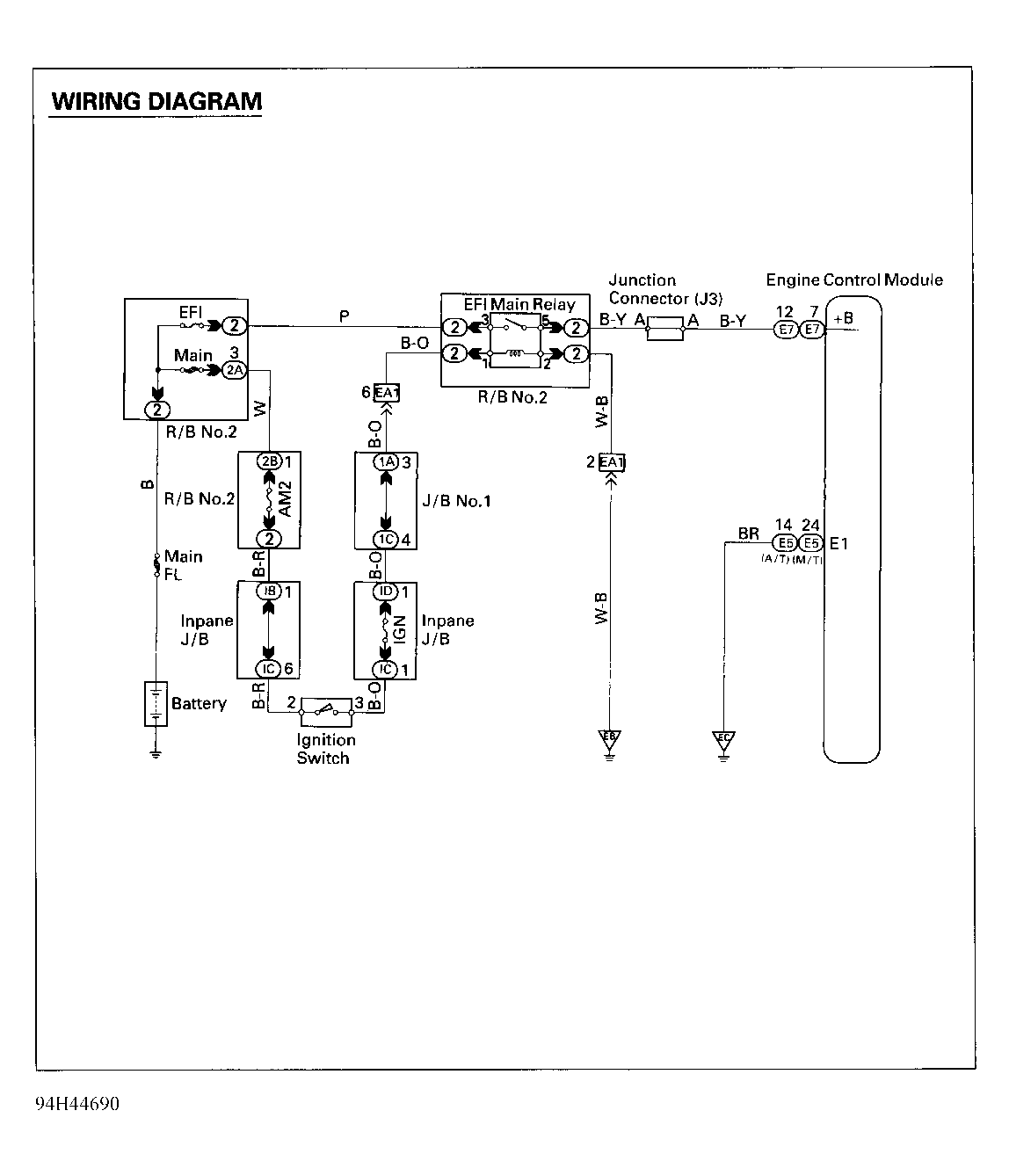

Fig 1: ECM Power Source Circuit Check - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

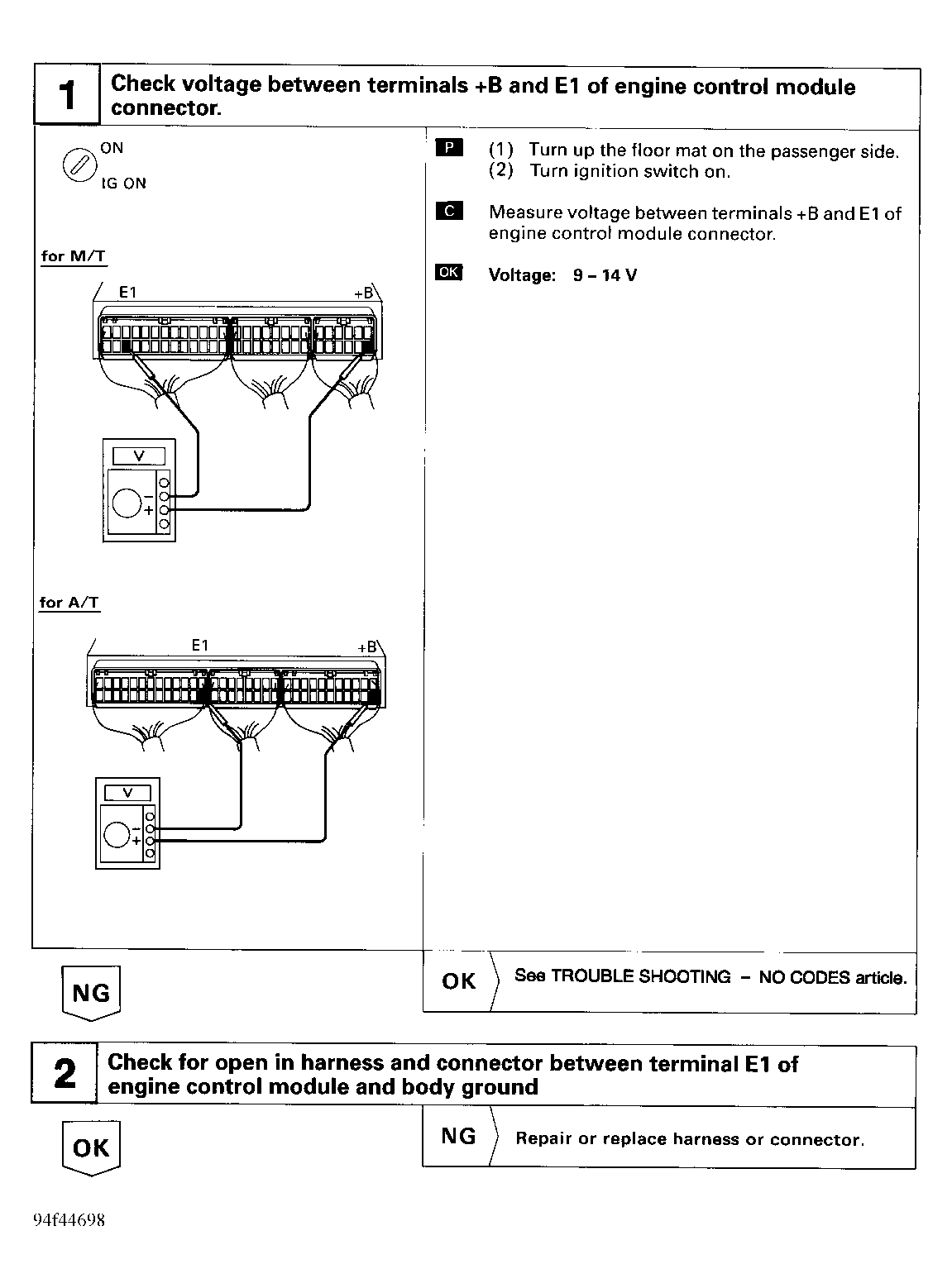

Fig 2: ECM Power Source Circuit Check - Diagnostic Flowchart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

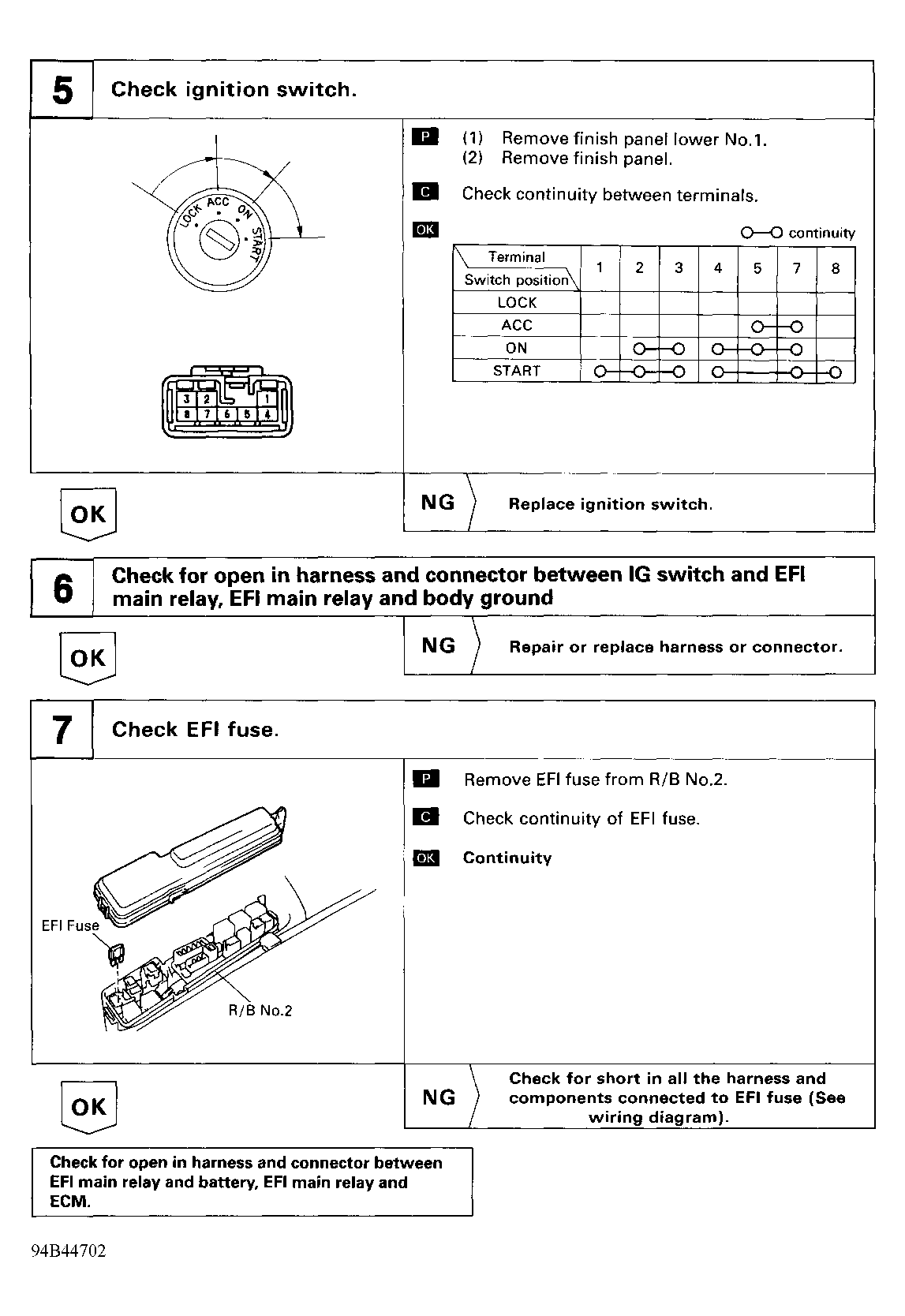

Fig 3: ECM Power Source Circuit Check - Diagnostic Flowchart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

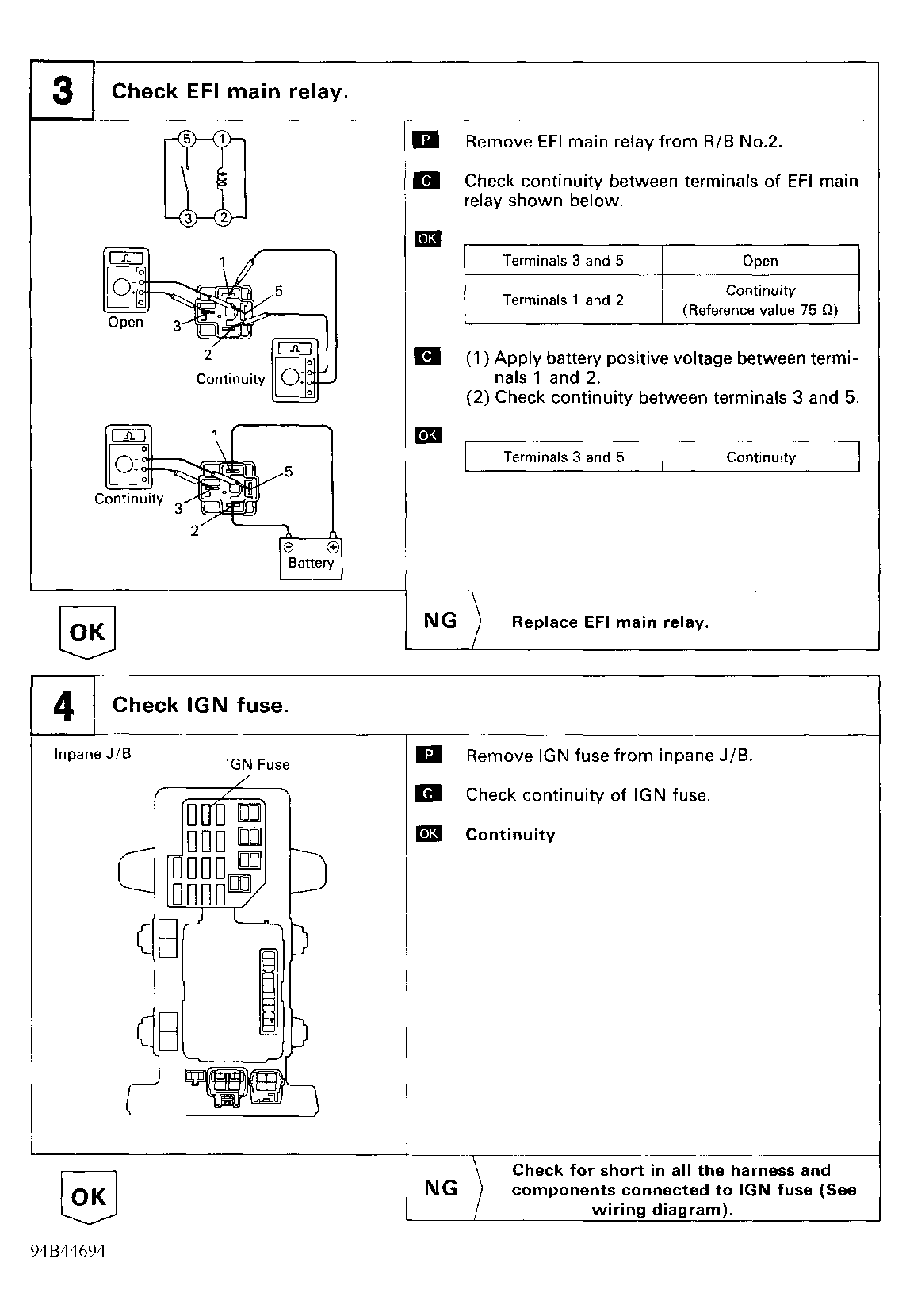

Fig 4: ECM Power Source Circuit Check - Diagnostic Flowchart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
