ECM (+B) Circuit Check

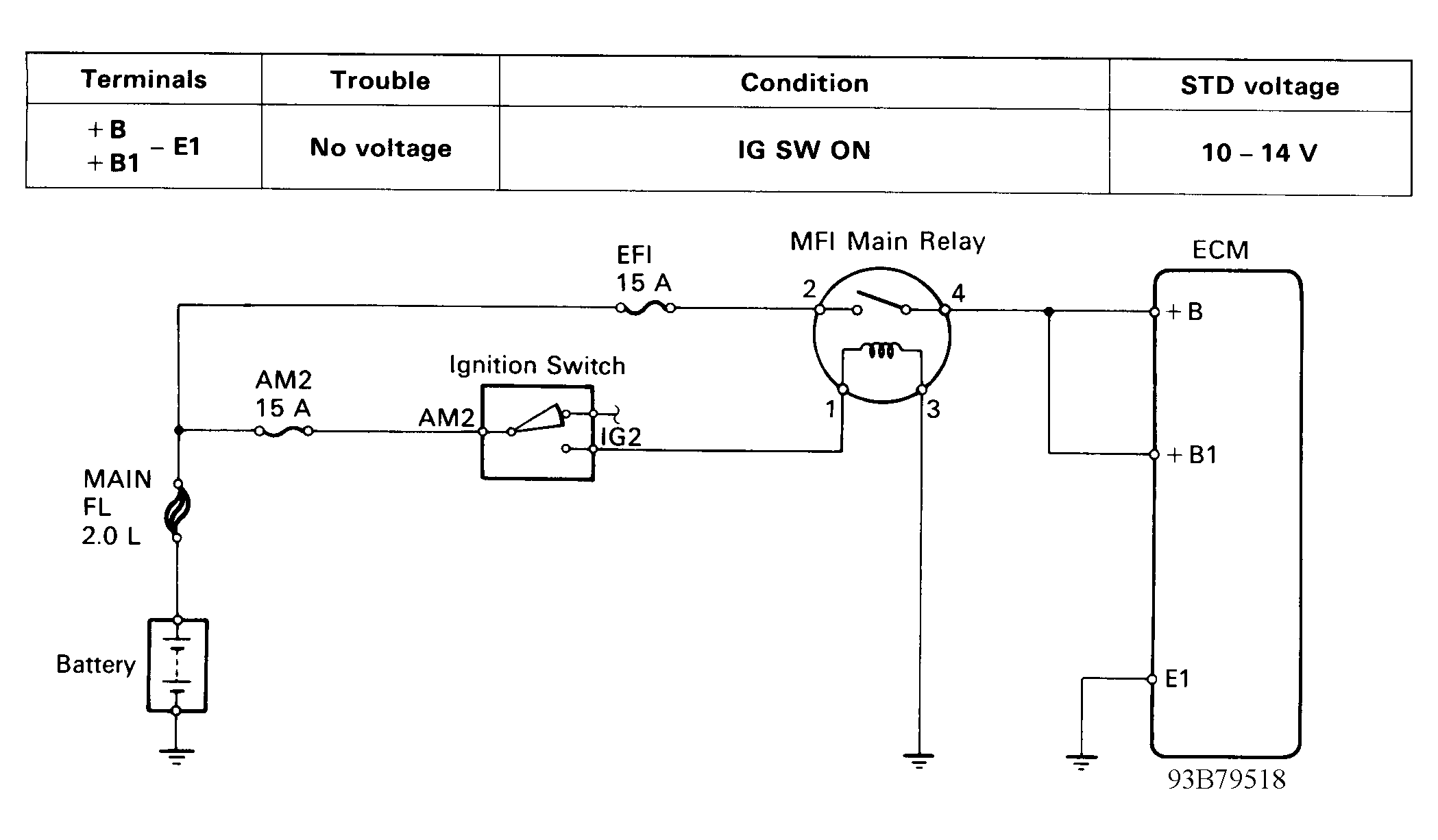

Fig 1: ECM (+B) Circuit Check - Schematic
G93B79518Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

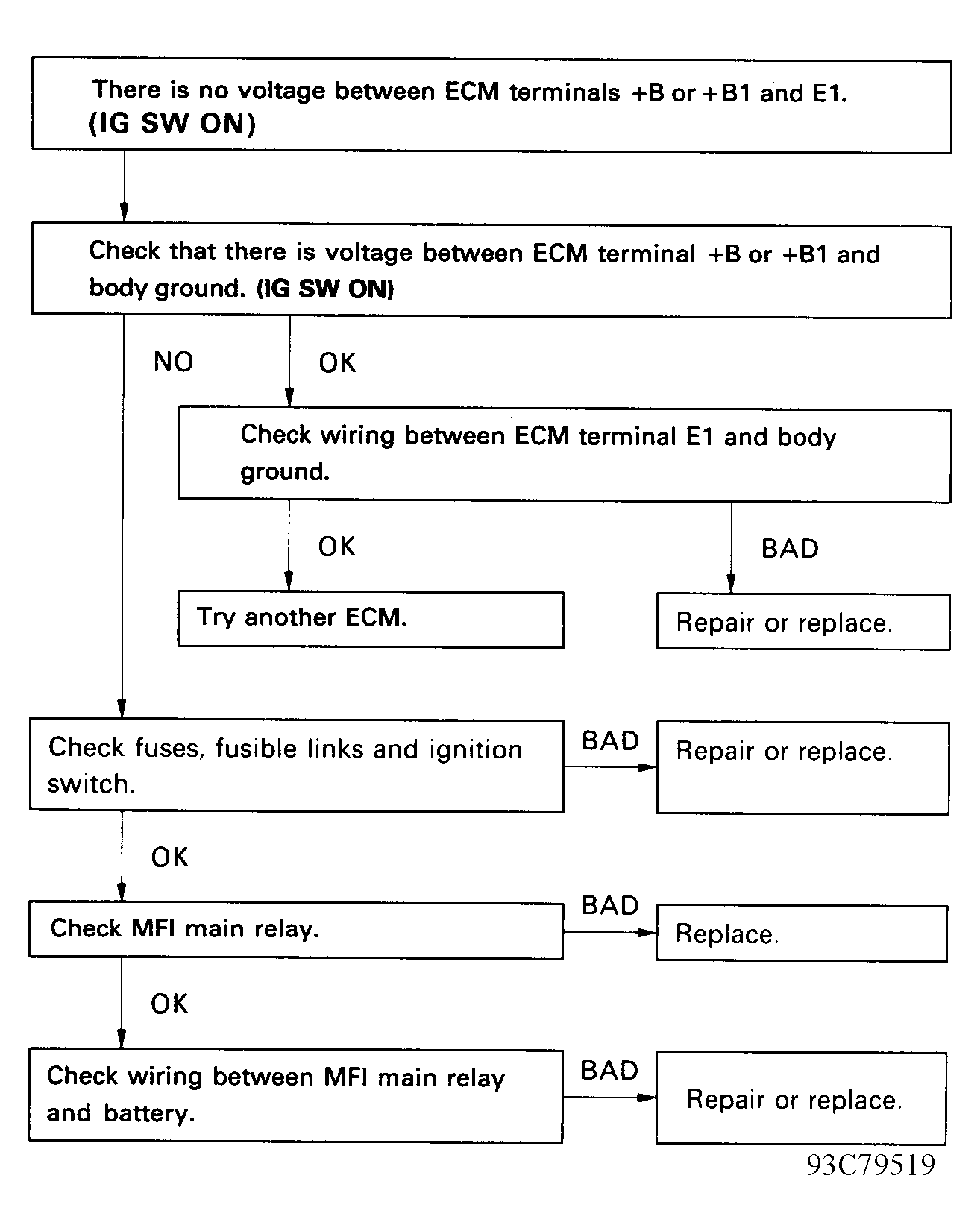

Fig 2: ECM (+B) Circuit Check - Diagnostic Flowchart
G93C79519Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
