Pick-Up Coil Resistance

Note pick-up coil terminal identification on the distributor. See Fig 1 and Fig 2. Using ohmmeter, measure resistance between specified terminals. See PICK-UP COIL RESISTANCE SPECIFICATIONS table. Replace distributor assembly if pick-up coil resistance is not within specification.

PICK-UP COIL RESISTANCE SPECIFICATIONS

Application

Pick-Up Coil Terminals

⁽¹⁾ Ohms

2.4L (2TZ-FZE) ⁽²⁾

⁽³⁾

135-220

2.4L (2TZ-FE) ⁽⁴⁾

G1 & G-

125-200

2.4L (2TZ-FE) ⁽⁴⁾

G2 & G-

125-200

2.4L (2TZ-FE) ⁽⁴⁾

NE & G-

155-250

⁽¹⁾	Specification is with pick-up coil temperature of 14-122°F (-10-50°C).

⁽²⁾	Supercharged model.

⁽³⁾	Measure resistance between terminals on pick-up coil.

⁽⁴⁾	Non-supercharged model.

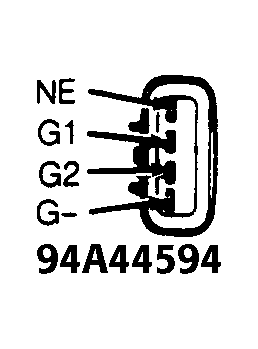

Fig 1: Identifying Pick-Up Coil Terminals (Non-Supercharged)

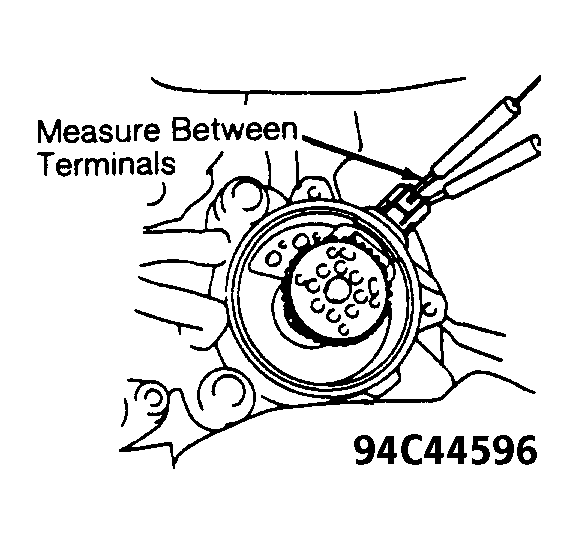

Fig 2: Identifying Pick-Up Coil Terminals (Supercharged)
