Power & Ground Circuits
For testing of power and ground circuits, see information in PIN VOLTAGE CHARTS article. See ECM LOCATION table for identifying ECM mounting locations.
ECM LOCATION
| Model | Location |
|---|---|
| Previa | Below Driver's Seat |
NOTE:

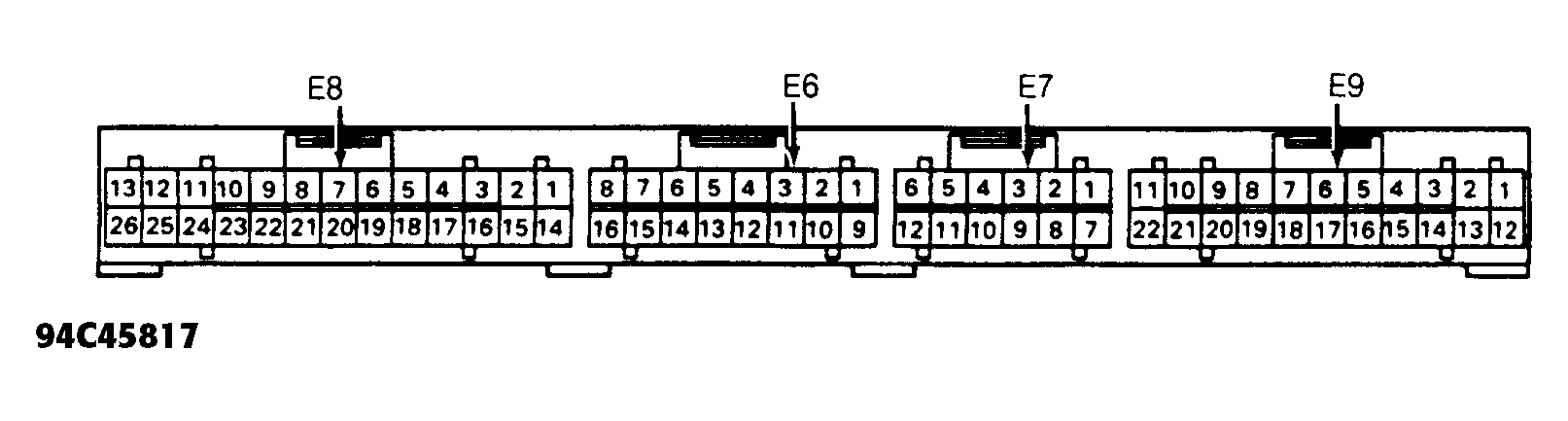

For ECM terminal identification on Non-Supercharged model, see PIN VOLTAGE CHARTS
article.
