Anti-Lock Brake System: Description

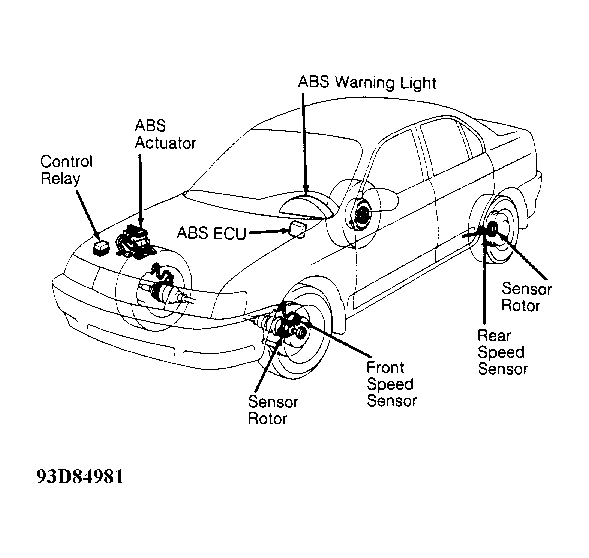

Anti-Lock Brake System (ABS) consists of an ABS Electronic Control Unit (ECU), control relay, actuator, and 4 speed sensors. See Fig 1.
An ABS indicator light is located on the instrument cluster. Indicator light comes on for 3 seconds as a bulb test when ignition is first turned on. A primary check is performed after each engine start, and initial vehicle speed exceeds 4 MPH. If brake pedal is depressed before vehicle exceeds 4 MPH, primary check will not occur until brake pedal is released.
NOTE:
For more information on brake system, see appropriate BRAKE SYSTEM
article in this section.
