Torque Specifications
WARNING: This page is about a different variant/trim than selected.
TORQUE SPECIFICATIONS
| Application |
Ft. Lbs. (N.m) |
| Air Intake Chamber Bolt/Nut |
13 (18) |
| Air Intake Chamber Support Brace Bolt/Nut |
|
| ECT Sensor |
|
| EGR Gas Temperature Sensor |
|

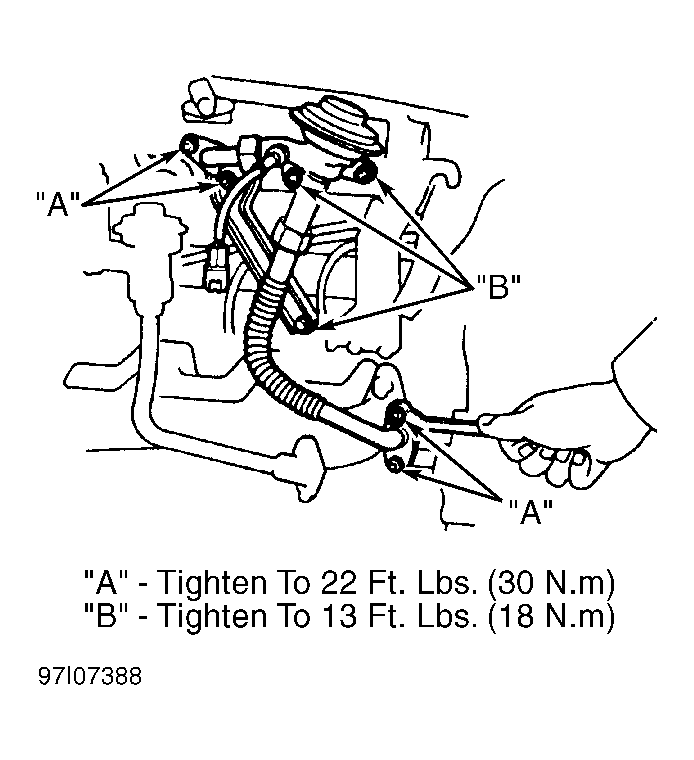

| EGR Valve & EGR Pipe Bolt/Nut |
|
| Fuel Line-To-Cold Start Injector Union Bolt |
13 (18) |
| Fuel Outlet Line-To-Fuel Pump Mounting Bracket |
22 (30) |
| Fuel Pressure Regulator Lock Nut |
22 (30) |
| No. 2 Fuel Pipe Union Bolt |
25 (34) |
| No. 3 Fuel Pipe Union Bolt |
25 (34) |
| Throttle Body Bolt |
13 (18) |
| INCH Lbs. (N.m) |
| Cold Start Injector Retaining Nut |
69 (7.8) |
| Fuel Pump Mounting Bracket-To-Fuel Tank Bolt |
35 (4.0) |
| Fuel Rail-To-Intake Manifold Nut |
115 (13.0) |
| PNP Switch Retaining Bolt |
115 (13.0) |
| PNP Switch Retaining Nut |
61 (6.9) |
