Component Location

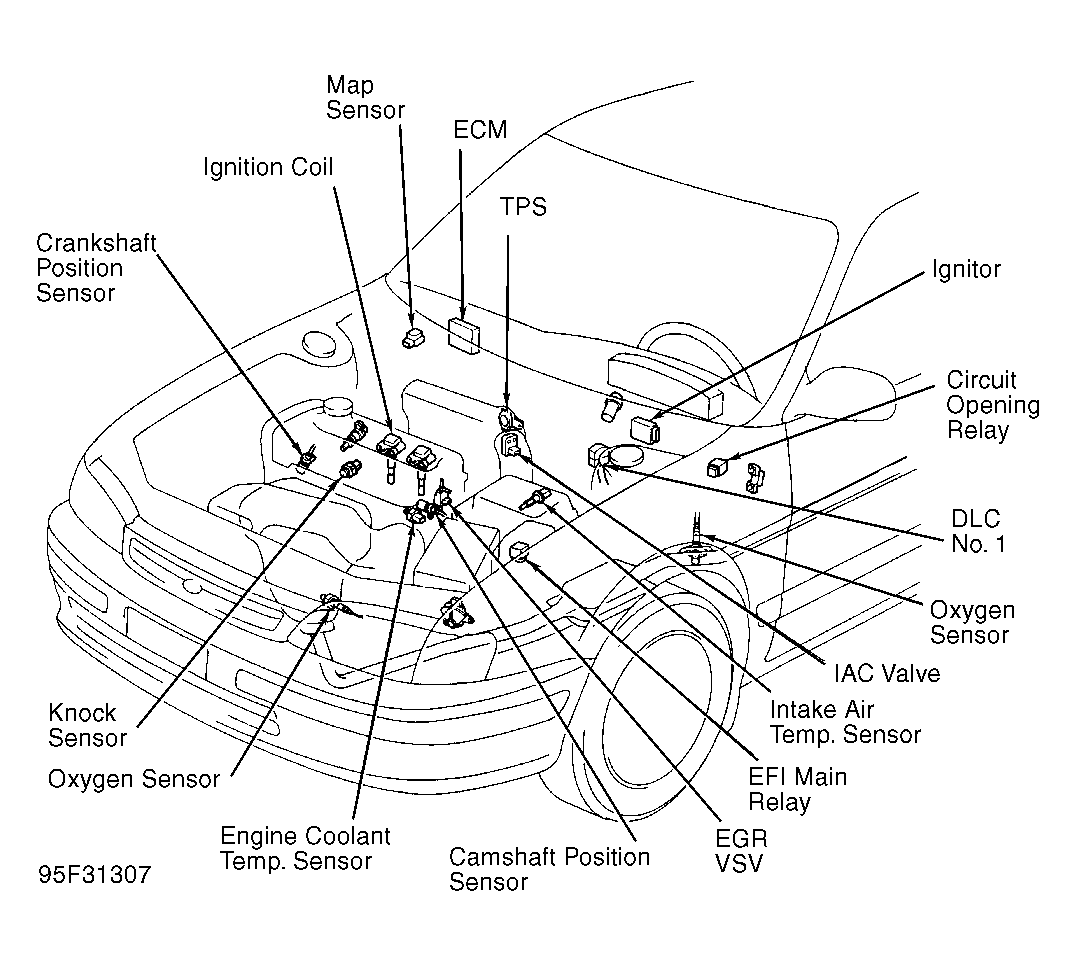

Fig 1: Component Locations
G95F31307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECM LOCATION

Model Location
Tercel Behind Glove Box
