Shock Absorber

Compress and extend the shock absorber rod and check that there is abnormal resistance or unusual operation sounds. See Fig 1. If there is any abnormality, replace the shock absorber with a new one.

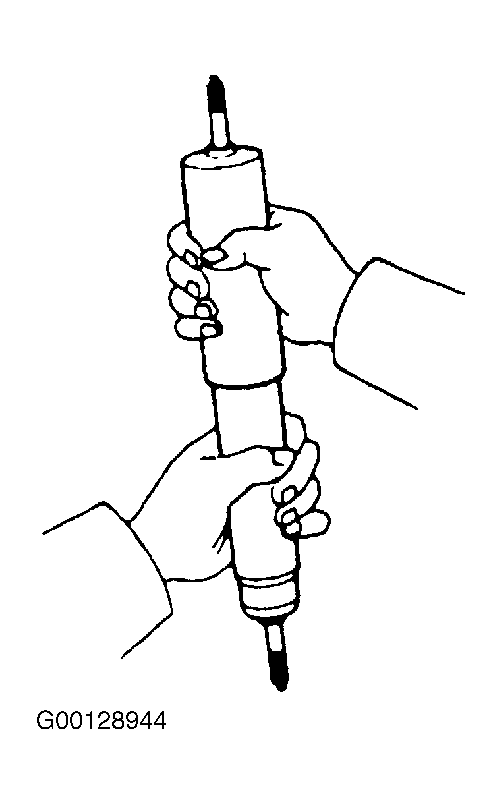

Fig 1: Testing Shock Absorber
G00128944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
