Supercharger Relay
NOTE:
Supercharger relay may also be referred to as magnetic clutch relay.
- Ensure ignition is off. Remove supercharger relay, located on passenger's side of underhood compartment, near wiper motor and contains a Black 4-pin electrical connector. See Figure.

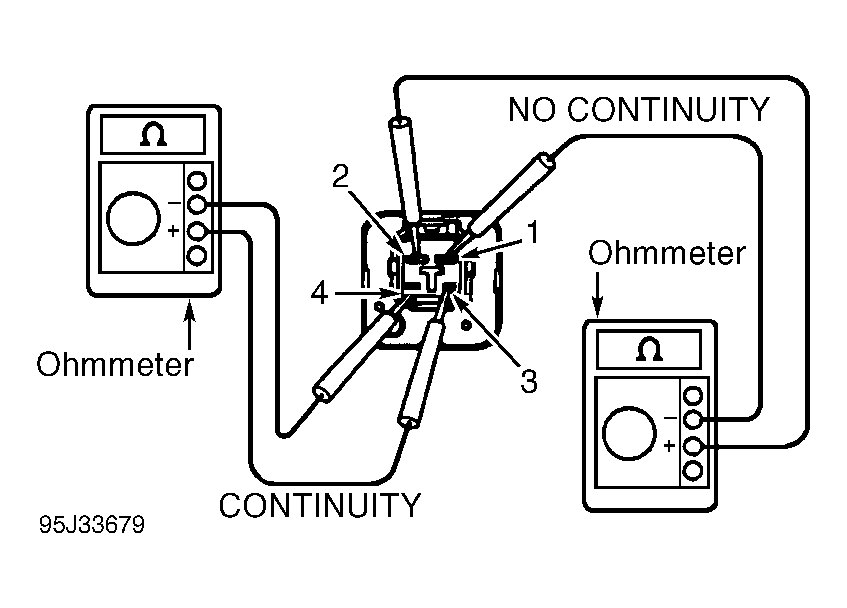

- To test supercharger relay continuity, using ohmmeter, check continuity between specified terminals. See Fig 1 and Fig 2.

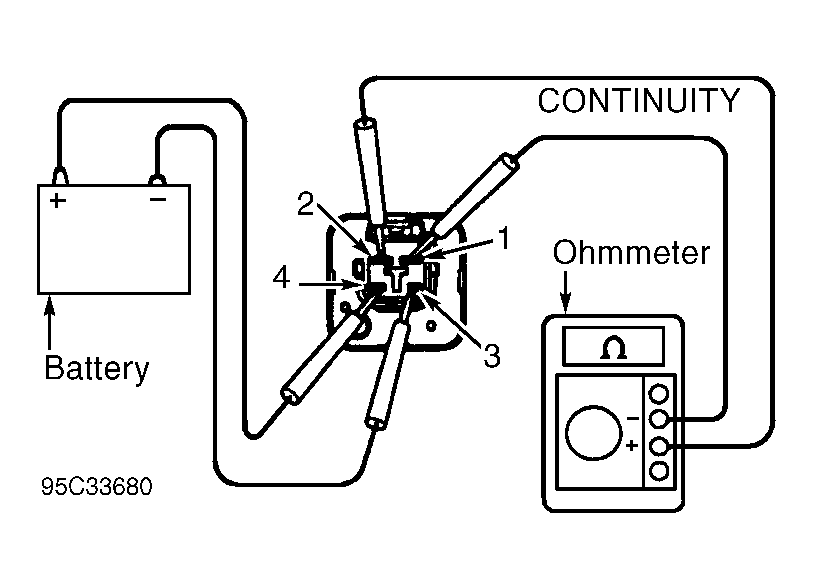

- To test supercharger relay operation, apply battery voltage and ground to relay and use ohmmeter to check continuity between specified terminals. See Fig 1 and Fig 2. Replace supercharger relay if defective.
