EFI Main Relay

NOTE: EFI main relay may also be referred to as EFI relay.
  1. Ensure ignition is off. Remove EFI main relay. See EFI MAIN RELAY LOCATION  table.
    NOTE: The EFI main relay may also be identified using appropriate illustration in THEORY/OPERATION article.
    EFI MAIN RELAY LOCATION

    Application Location
    Previa (1) Behind Instrument Cluster, In Relay Block Located Above Accelerator Pedal Area

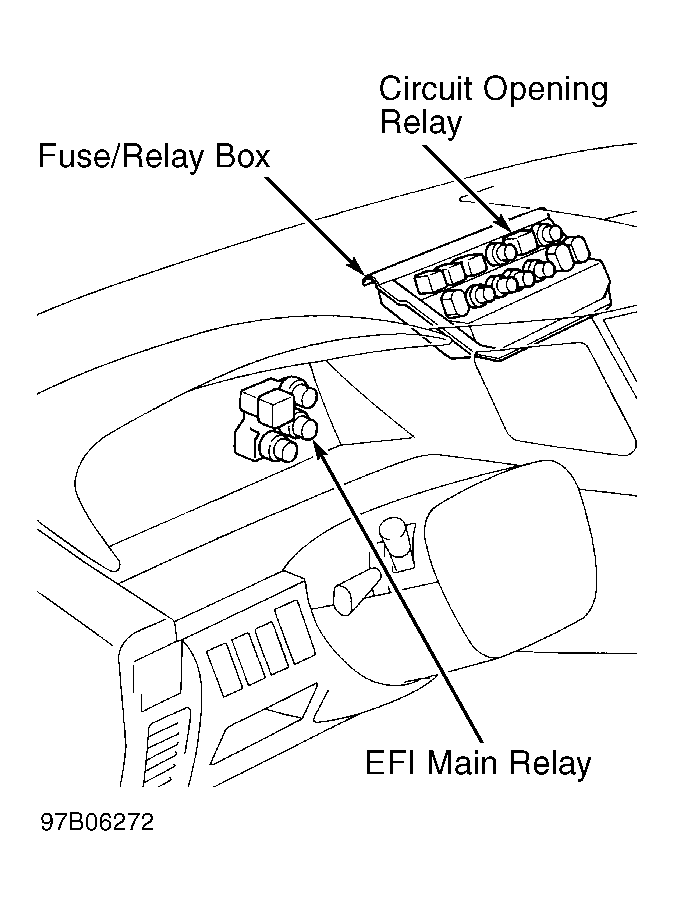

    (1) EFI main relay is a round relay at lower right corner of relay block. See Figure.
  2. To check EFI main relay continuity, use ohmmeter to check continuity between specified terminals. See Fig 1.
  3. To check EFI main relay operation, apply battery voltage and ground to relay and use ohmmeter to check continuity between specified terminals. See Fig 1. Replace EFI main relay if defective.

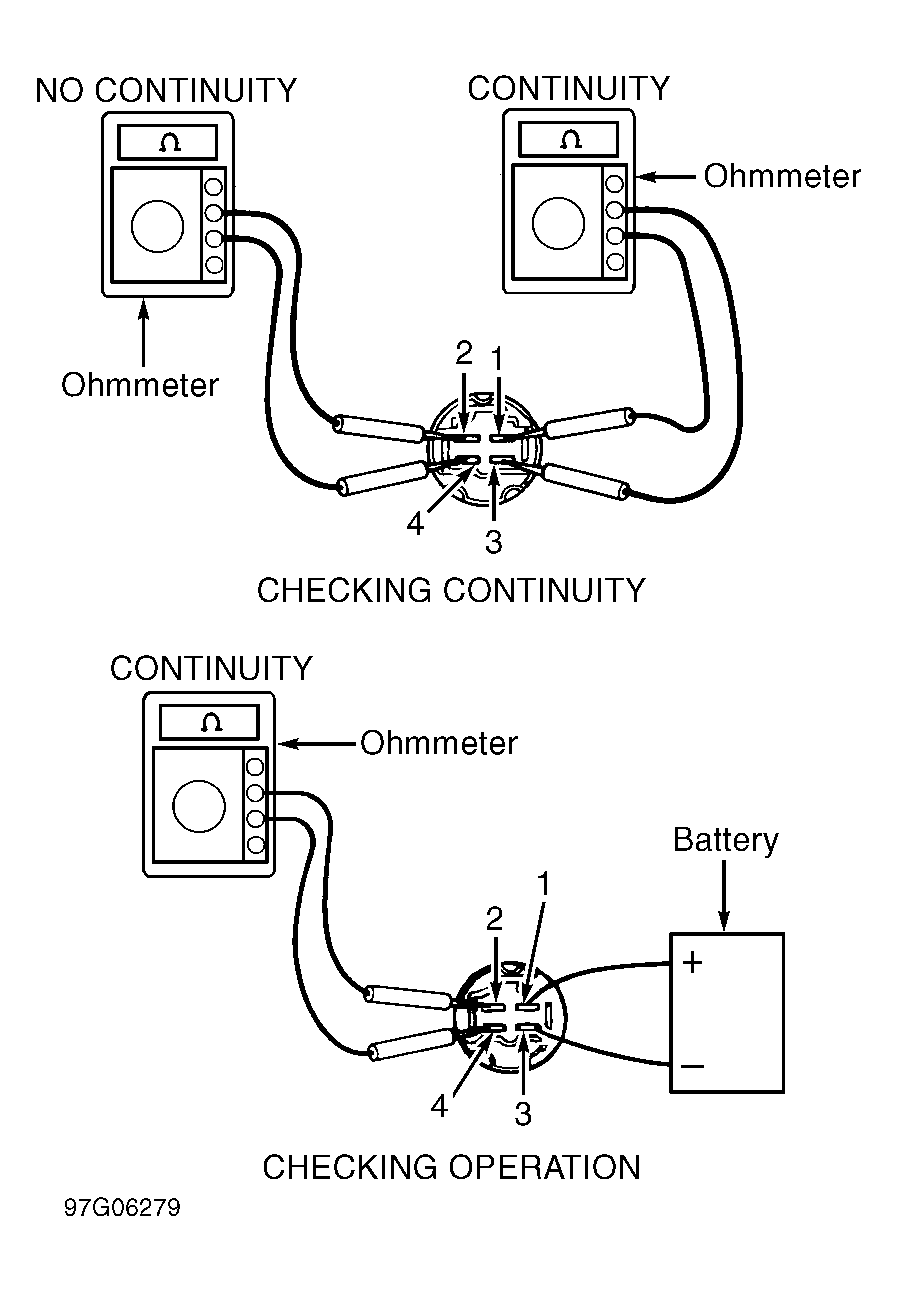

Fig 1: Testing EFI Main Relay
G97G06279Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
