Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| ABS Actuator & ECU | On left rear of engine compartment. See Figure. |
| ABS & BA & TRAC & VSC ECU | Behind right side of dash. See Figure. |
| A/C Blower Motor Linear Controller | Behind center of dash. |
| A/C Control Assembly (Automatic A/C) | Behind center of dash. See Figure. |
| Body ECU | Behind left side of dash. See Figure. |
| Center Air Bag Sensor Assembly | Below center of dash. See Figure. |
| Cruise Control ECU | Behind left center of dash. See Figure. |

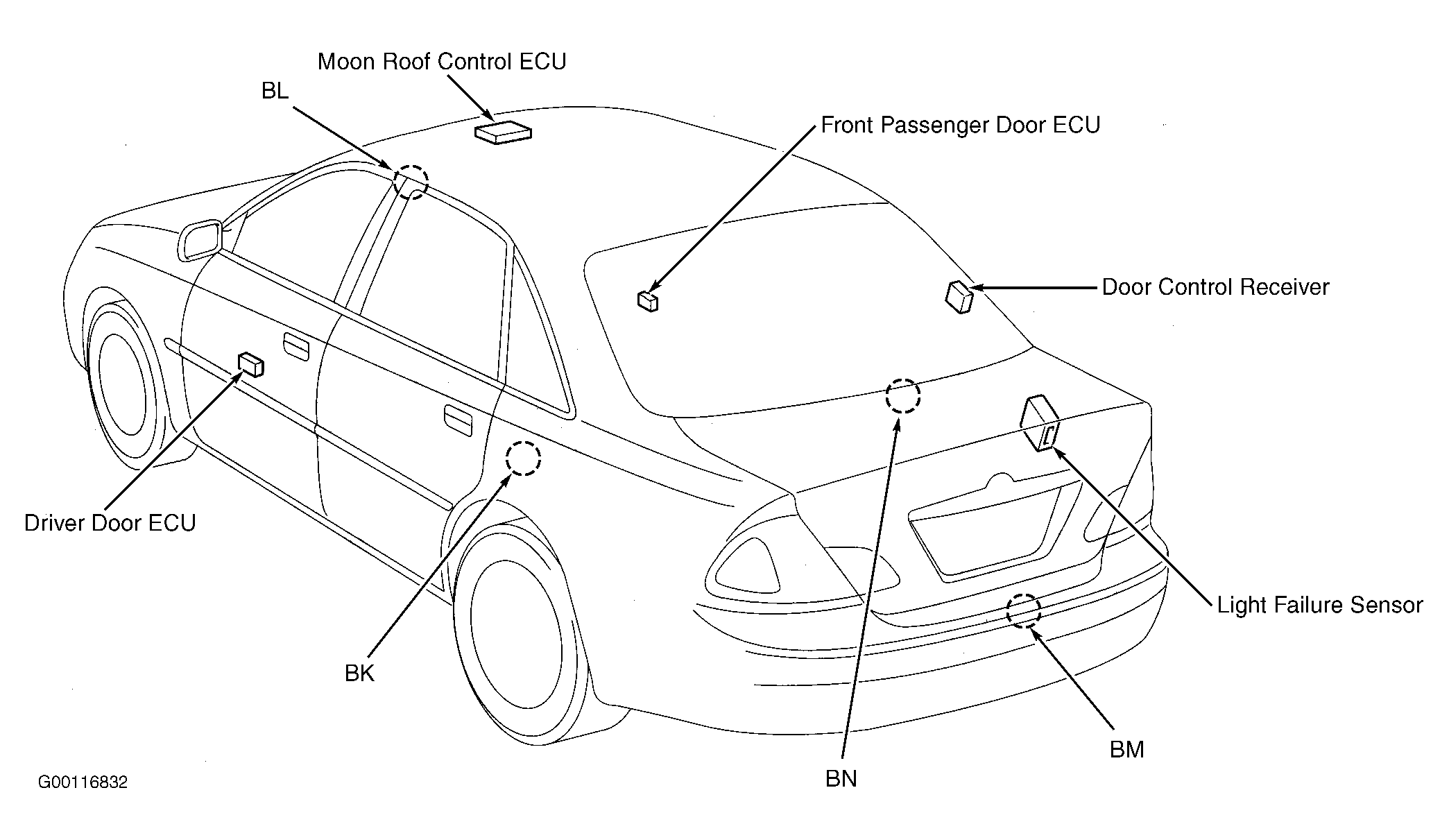

| Door Control Receiver | On right front side of trunk. See Figure. |
| Driver Door ECU | In driver's door. See Figure. |
| Engine Control Module | Behind right side of dash. See Figure. |
| Front Passenger Door ECU | In right front door. See Figure. |
| Moon Roof Control ECU | In front center of roof. See Figure. |
| Power Seat ECU | Under driver's seat. |
| Shift Lock ECU (Floor Shift) | Below center console, left of gear selector. See Figure. |
| Shift Lock ECU (Column Shift) | On underside of steering column. See Figure. |
| Theft Deterrent ECU | Behind right side of dash. See Figure. |
| Translate ECU | In right front kick panel. See Figure. |
| Transponder Key Amplifier | On left side of dash, on steering column. See Figure. |
