Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component | Component Location |
|---|---|

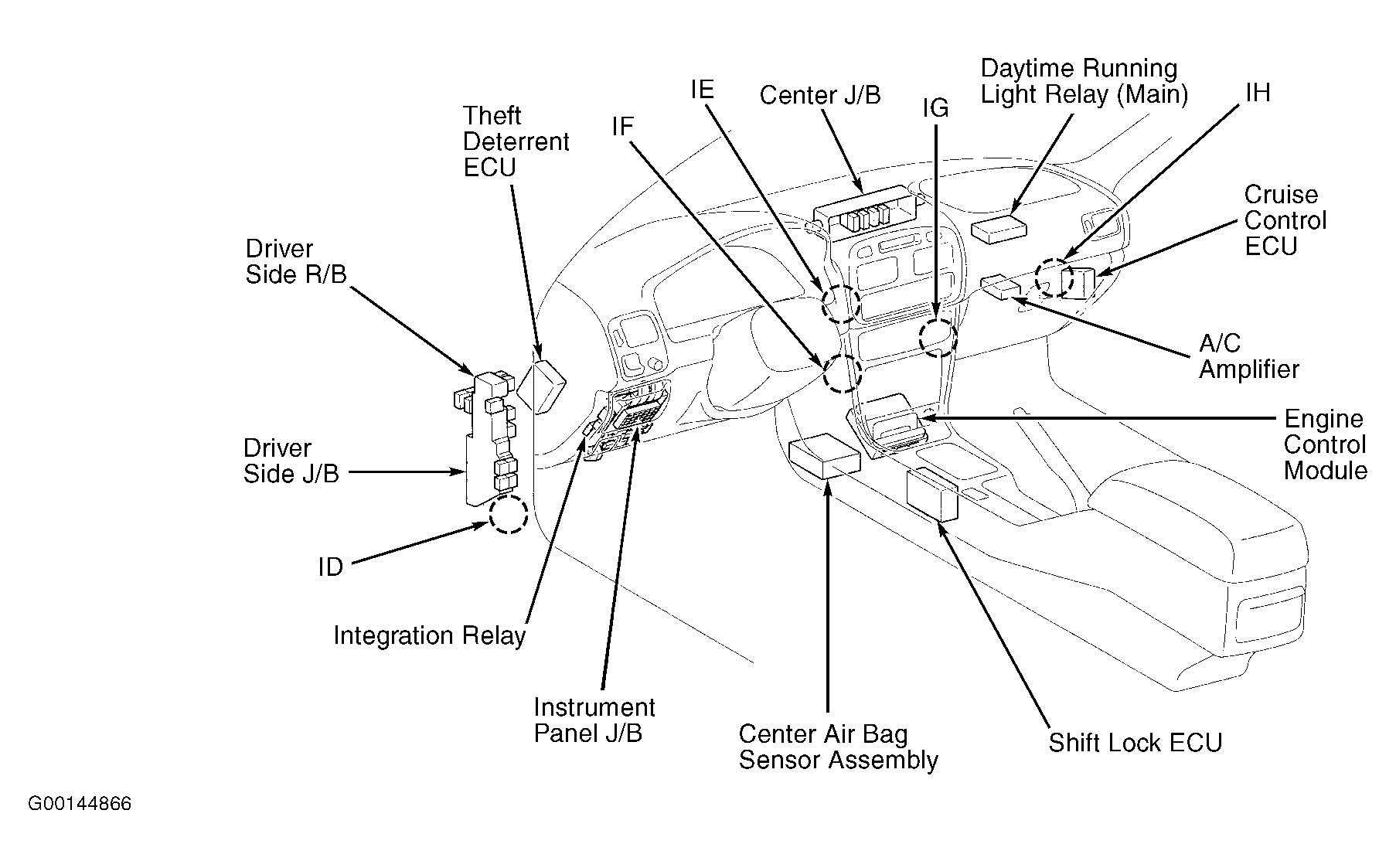

| Center J/B | Behind center of dash. See Figure. |
| Driver Side J/B | Behind left kick panel. See Figure. |
| Driver Side R/B | Behind left kick panel. See Figure. |

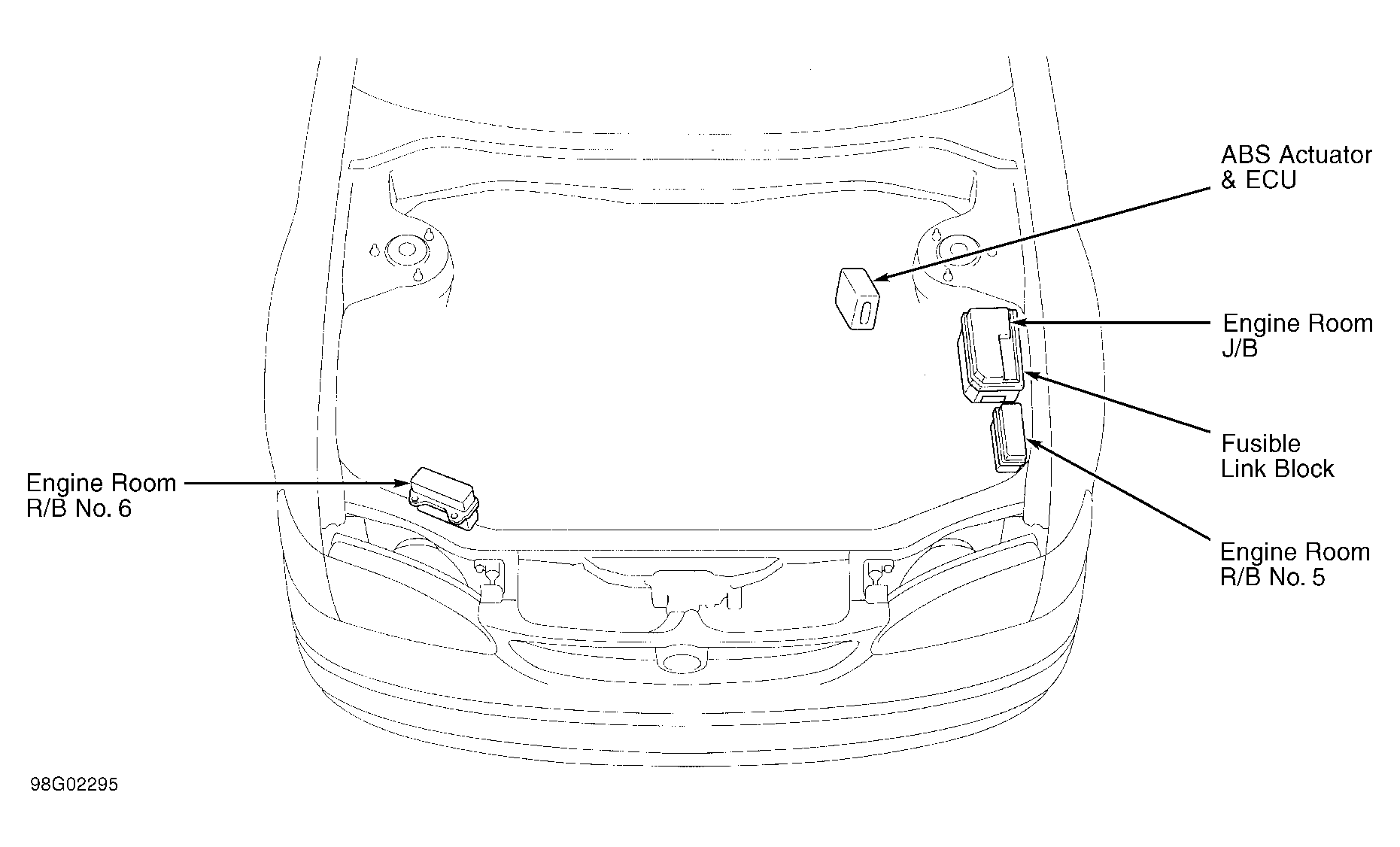

| Engine Room J/B | On left side of engine compartment. See Figure. |
| Engine Room R/B No. 5 | On left front of engine compartment. See Figure. |
| Engine Room R/B No. 6 | On right front of engine compartment, on radiator support. See Figure. |
| Fusible Link Block | On top left side of engine room J/B. See Figure. |
| Instrument Panel J/B | Behind left side of dash, at lower finish panel. See Figure. |
