Engine Control Module

Engine Control Module (ECM) monitors and controls vehicle emissions, fuel system, ignition system and other various systems by using input signals from various input devices. ECM processes input signals from input devices and delivers output signals to various components for controlling system operation to achieve optimum engine performance for all operating conditions. See INPUT DEVICES and OUTPUT SIGNALS . ECM contains a fail-safe function which is used in case of sensor or switch failure. Fail-safe function uses preprogrammed values to provide a limp-in mode for minimal driveability. If a failure exists, ECM will inform the driver by illuminating the MIL.

NOTE: MIL may also be referred to as CHECK ENGINE light. MIL is displayed as an engine icon on instrument cluster on instrument panel.

ECM contains a self-diagnostic system which may store a DTC if an electronic control system failure exists. DTC may be retrieved from ECM for system diagnosis by using a scan tool. See SELF-DIAGNOSTIC SYSTEMS . For ECM location, see Fig 1-Fig 15 .

Fig 1: Locating Engine Control Module (Avalon)

G99D52806

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

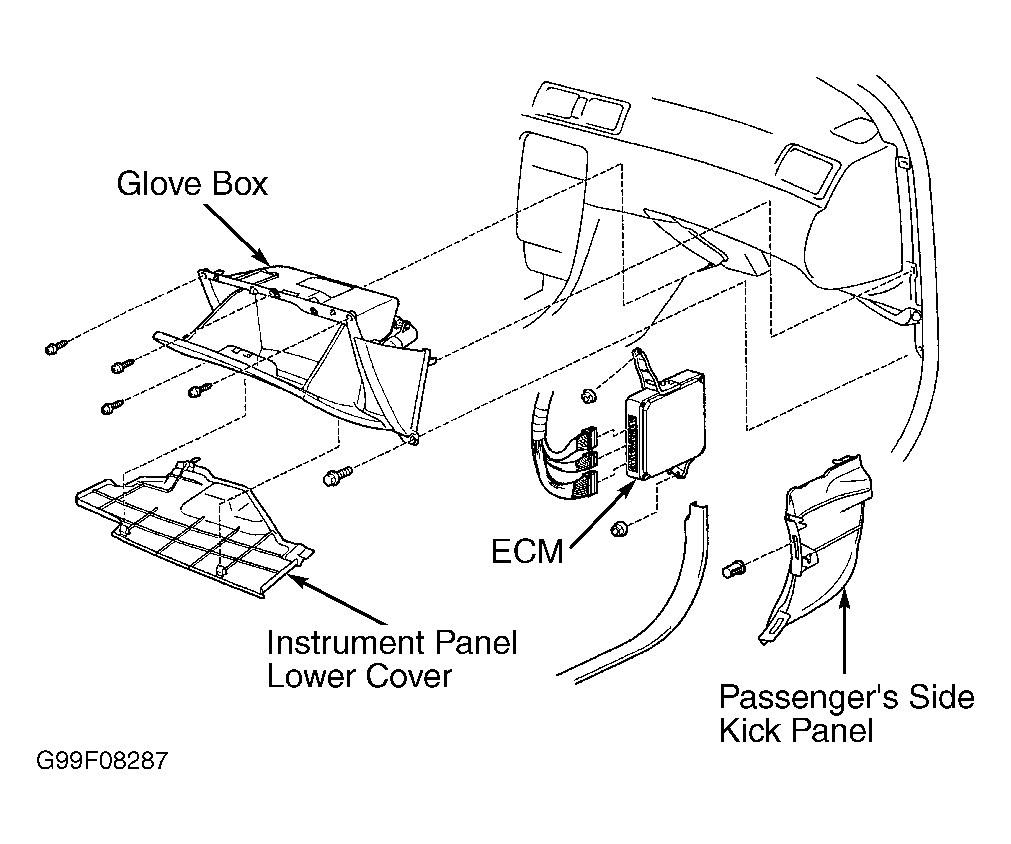

Fig 2: Locating Typical Engine Control Module (Camry 2.2L 4-Cyl. CNG & Gasoline Models, & Camry Solara 2.2L 4-Cyl.)

G99F08287

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

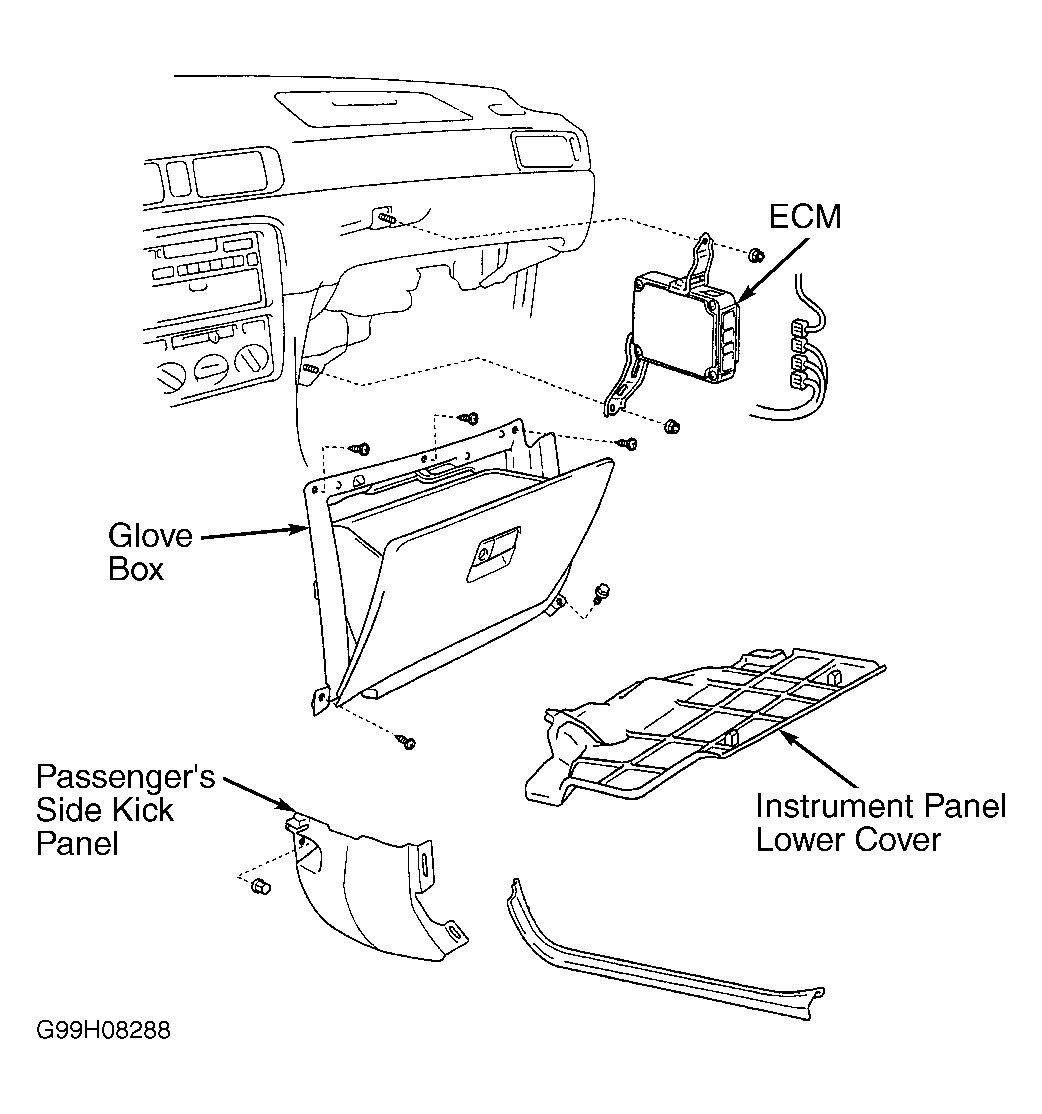

Fig 3: Locating Typical Engine Control Module (Camry 3.0L V6 & Camry Solara 3.0L V6)

G99H08288

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Locating Engine Control Module (Celica)

G99E52807

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 5: Locating Engine Control Module (Corolla)

G99B08290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Locating Engine Control Module (ECHO)

G99F52808

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 7: Locating Engine Control Module (Highlander)

G00028711

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 8: Locating Engine Control Module (Land Cruiser)

G99D08291

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 9: Locating Engine Control Module (MR2)

G00028715

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 10: Locating Engine Control Module (Prius)

G00028719

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 11: Locating Engine Control Module (RAV4)

G00028723

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 12: Locating Engine Control Module (Sequoia & Tundra)

G99E08296

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 13: Locating Engine Control Module (Sienna)

G99H08293

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 14: Locating Engine Control Module (Tacoma 2.4L 4-Cyl. & 2.7L 4-Cyl., & 4Runner)

G99J08294

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 15: Locating Engine Control Module (Tacoma 3.4L V6)

G99C08295

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
