Cylinder Block Specifications
WARNING: This page is about a different car, the 2000 Toyota Tundra, 2000 Toyota Land Cruiser, 2000 Lexus LX 470, 1999 Toyota Land Cruiser, and 1999 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.
CYLINDER BLOCK
| Application |
In. (mm) |

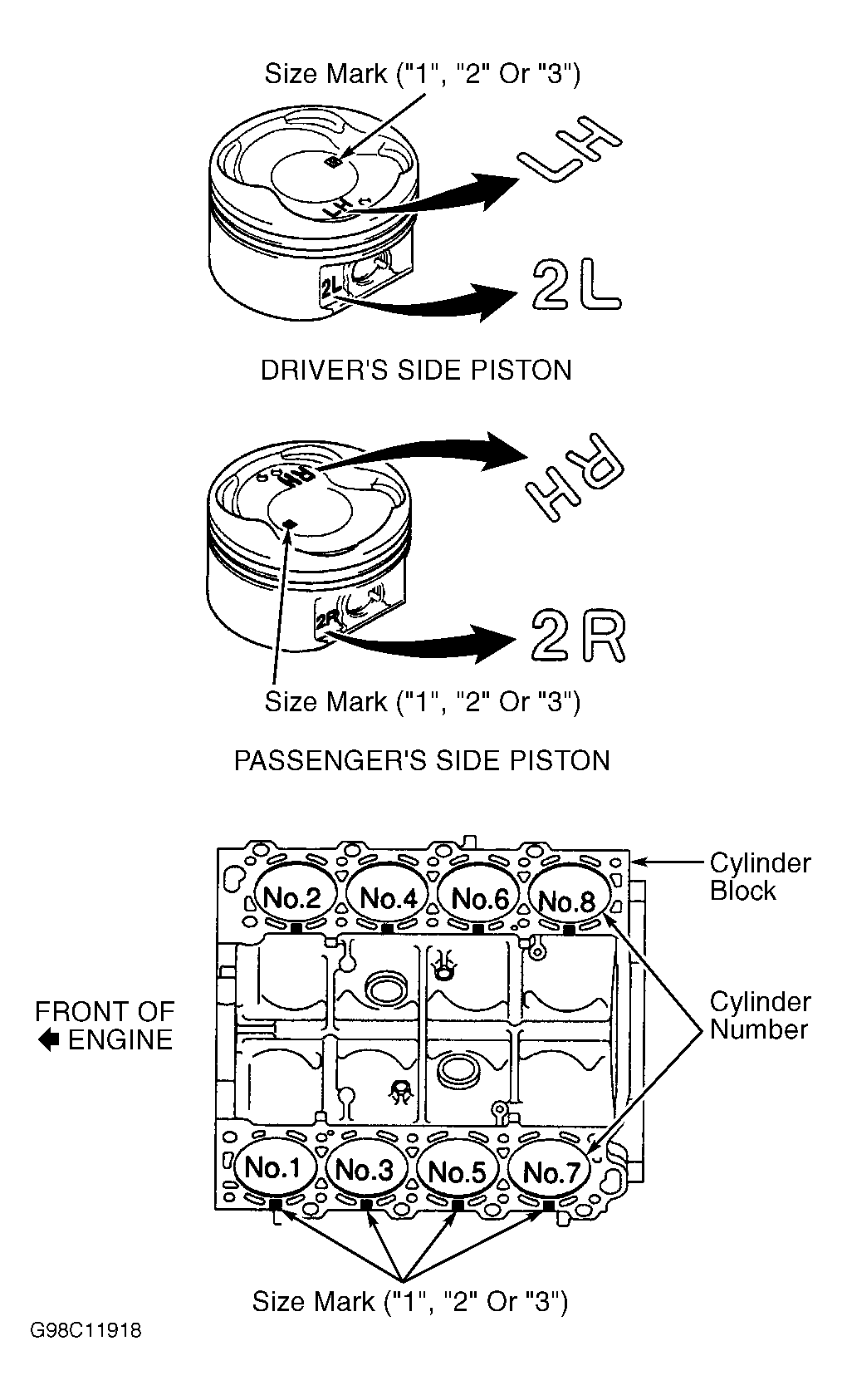

| Cylinder Bore |
| Standard Diameter |
| Size Mark "1" |
3.7009-3.7012 (94.002-94.010) |
| Size Mark "2" |
3.7012-3.7017 (94.010-94.023) |
| Size Mark "3" |
3.7017-3.7020 (94.023-94.031) |
| Maximum Deck Warpage |
.0028 (.070) |
| Maximum Main Bearing Cap Area Warpage |
.0028 (.070) |

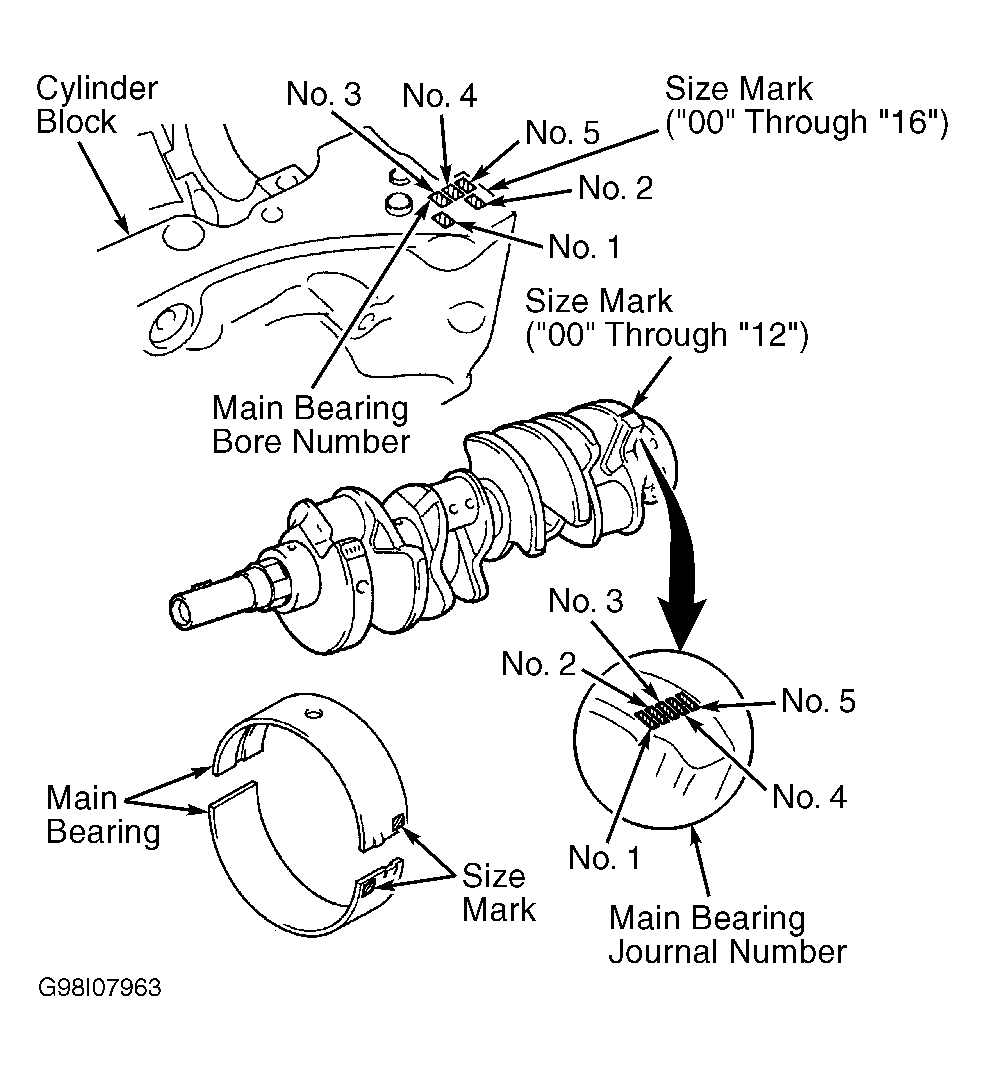

| Main Bearing Bore I.D. |
| Size Mark "00" |
2.83464 (72.0000) |
| Size Mark "01" |
2.83467 (72.0010) |
| Size Mark "02" |
2.83471 (72.0020) |
| Size Mark "03" |
2.83475 (72.0030) |
| Size Mark "04" |
2.83479 (72.0040) |
| Size Mark "05" |
2.83483 (72.0050) |
| Size Mark "06" |
2.83487 (72.0060) |
| Size Mark "07" |
2.83491 (72.0070) |
| Size Mark "08" |
2.83495 (72.0080) |
| Size Mark "09" |
2.83499 (72.0090) |
| Size Mark "10" |
2.83503 (72.0100) |
| Size Mark "11" |
2.83507 (72.0110) |
| Size Mark "12" |
2.83511 (72.0120) |
| Size Mark "13" |
2.83515 (72.0130) |
| Size Mark "14" |
2.83519 (72.0140) |
| Size Mark "15" |
2.83523 (72.0150) |
| Size Mark "16" |
2.83526 (72.0160) |
