Power Door Lock Control Switch

NOTE: Power door lock control switch may also be referred to as door lock control switch.

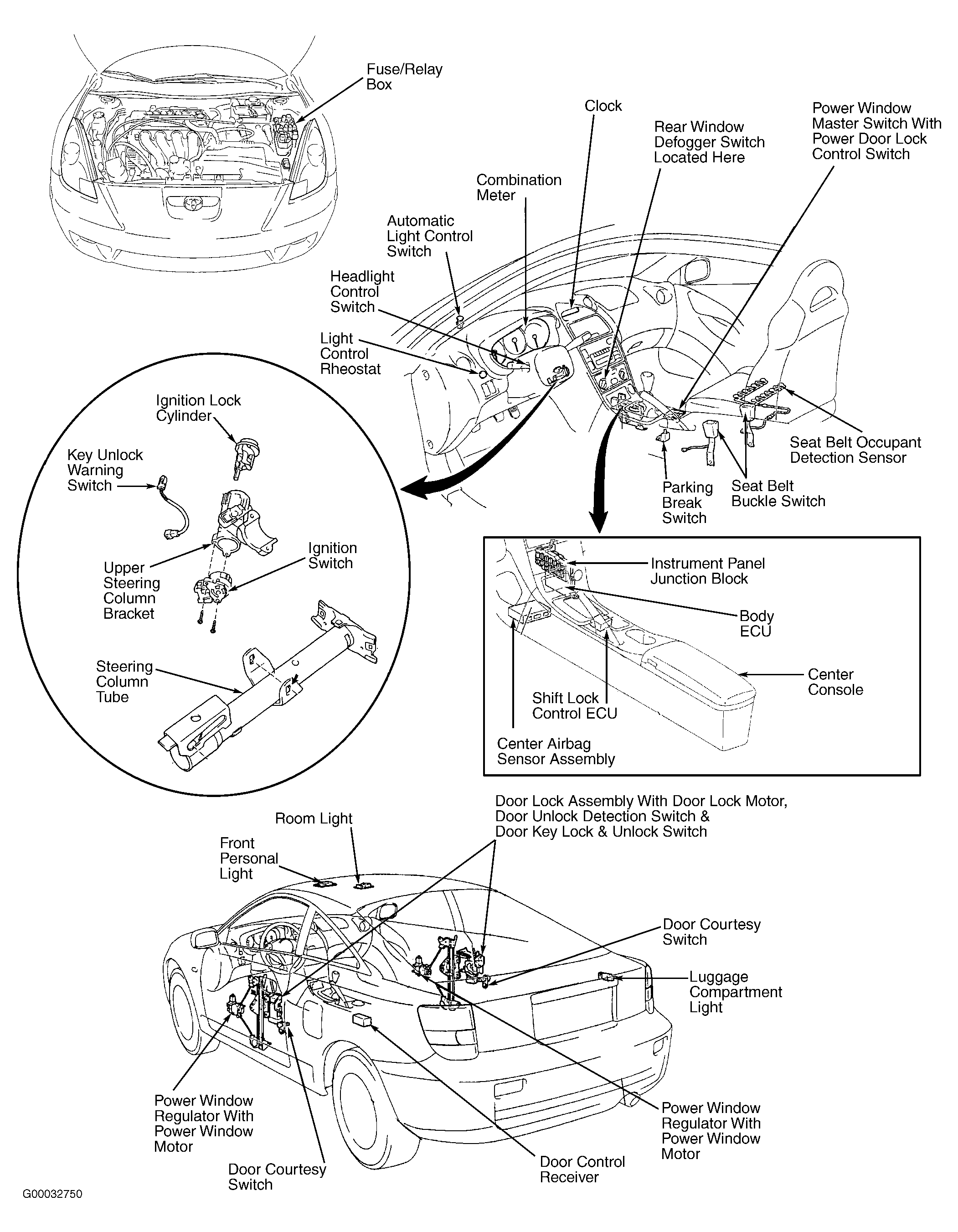

Power door lock control switch is located at center of power window master switch which is located on the center console. See Figure and Fig 1 . Disconnect 18-pin electrical connector from power window master switch. Note power window master switch electrical terminal identification. See Fig 1.

Using ohmmeter, check that continuity and no continuity is as specified between indicated power window master switch in relation to power door lock control switch position. See POWER DOOR LOCK CONTROL SWITCH CONTINUITY table. Replace power window master switch if power door lock control switch is defective.

POWER DOOR LOCK CONTROL SWITCH CONTINUITY

Switch Position

Switch Terminals

Specification

LOCK

5 & 17

Continuity

OFF

⁽¹⁾

UNLOCK

6 & 17

Continuity

⁽¹⁾	There should be no continuity between any terminals.

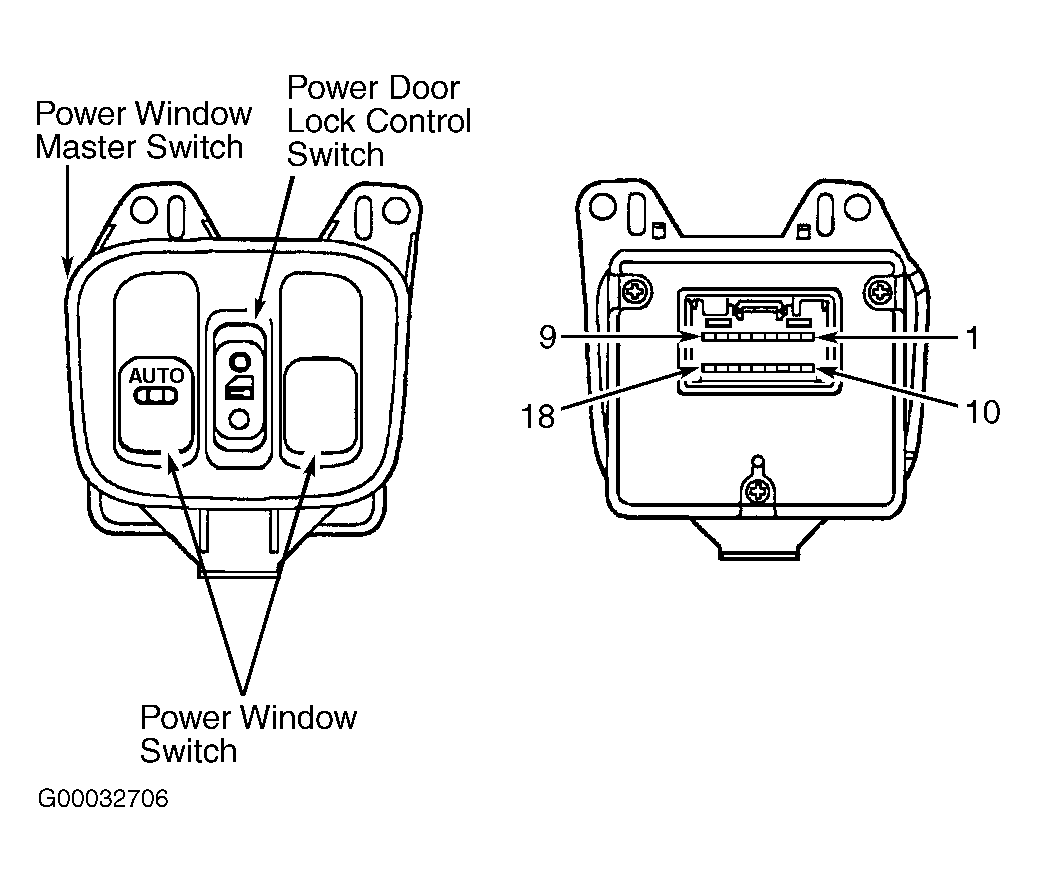

Fig 1: Locating Power Door Lock Control & Power Window Switches On Power Window Master Switch, & Identifying Electrical Terminals On Power Window Master Switch
