Trouble Shooting: Notes

NOTE: Troubleshooting procedures for Camry, Camry Solara, Celica, Corolla, ECHO, and MR2 are not available from manufacturer.

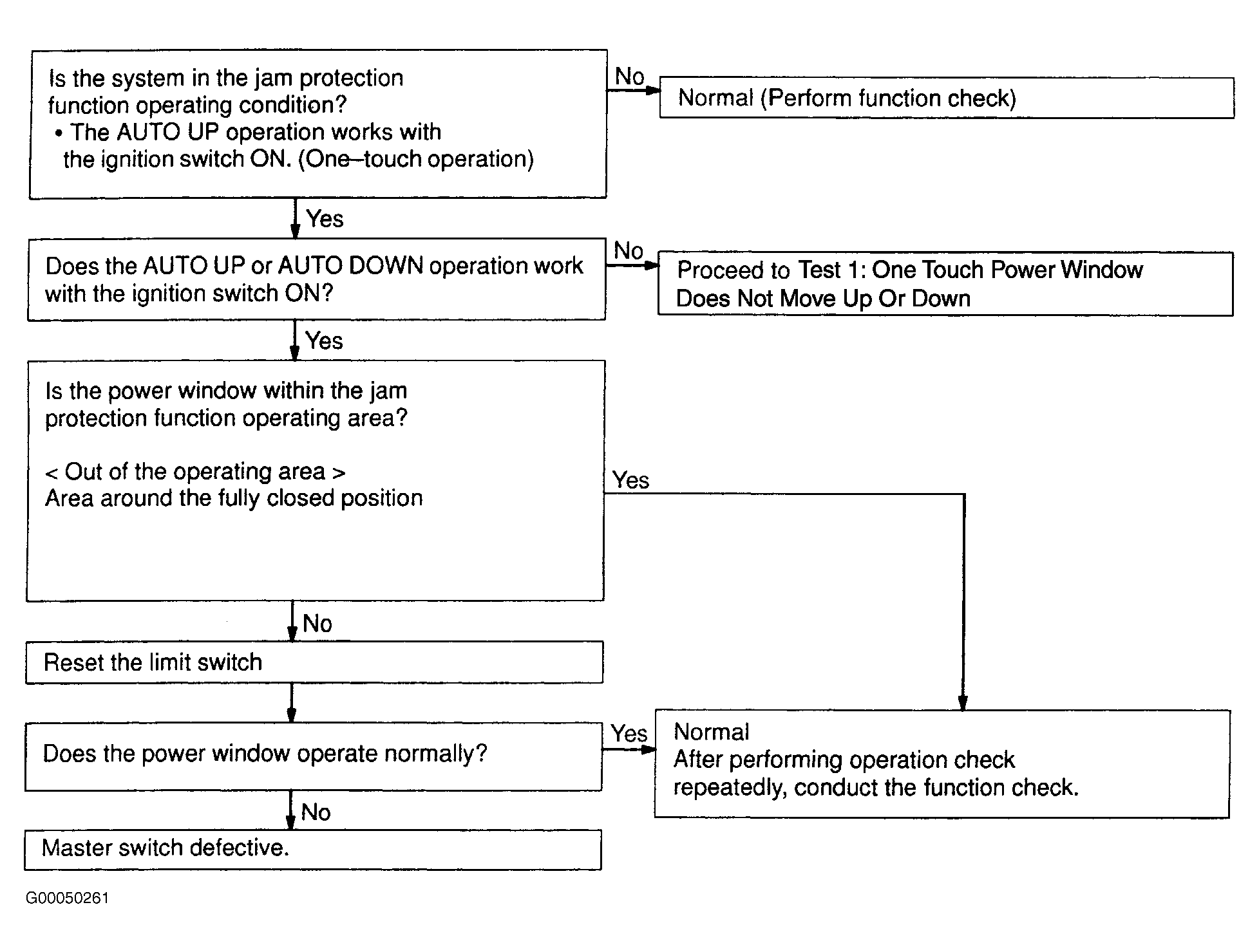

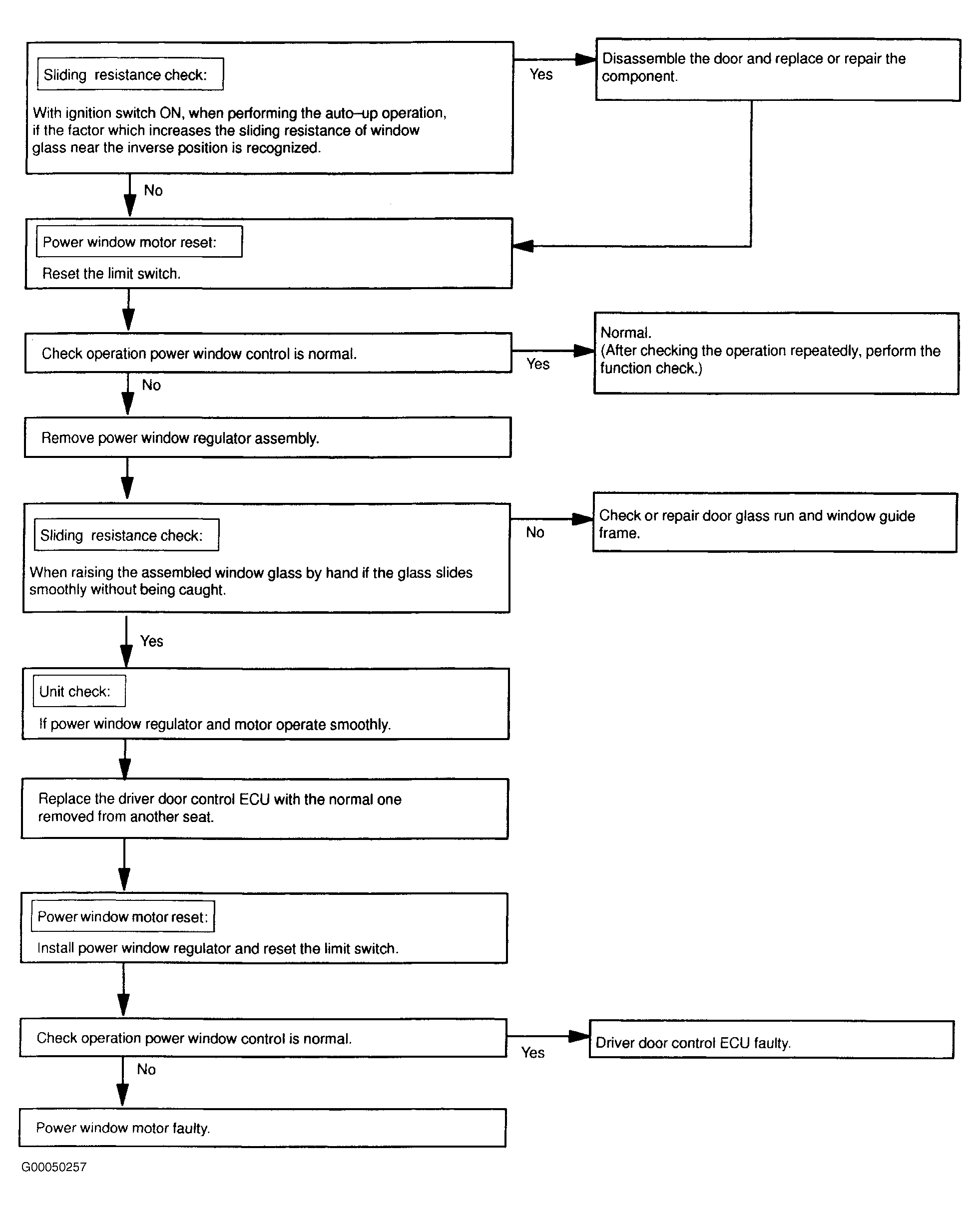

NOTE: Use illustration for trouble shooting procedures. See Figure - Figure .
