Problem Symptoms Table
PROBLEM SYMPTOMS TABLE - GAUGES
| Flow chart No. | Symptom |
|---|---|
| 1 | Check the communication between the combination meter and the multiplex communication circuit. |

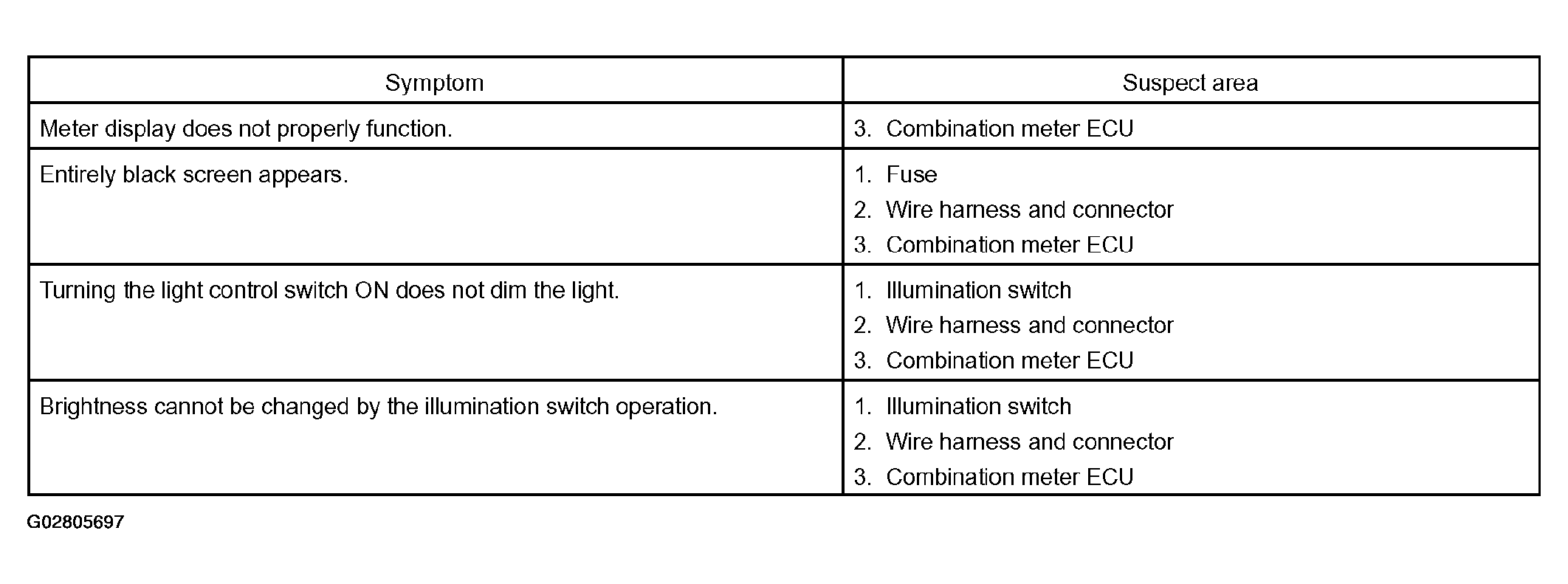

| 2 | The whole meter does not function |

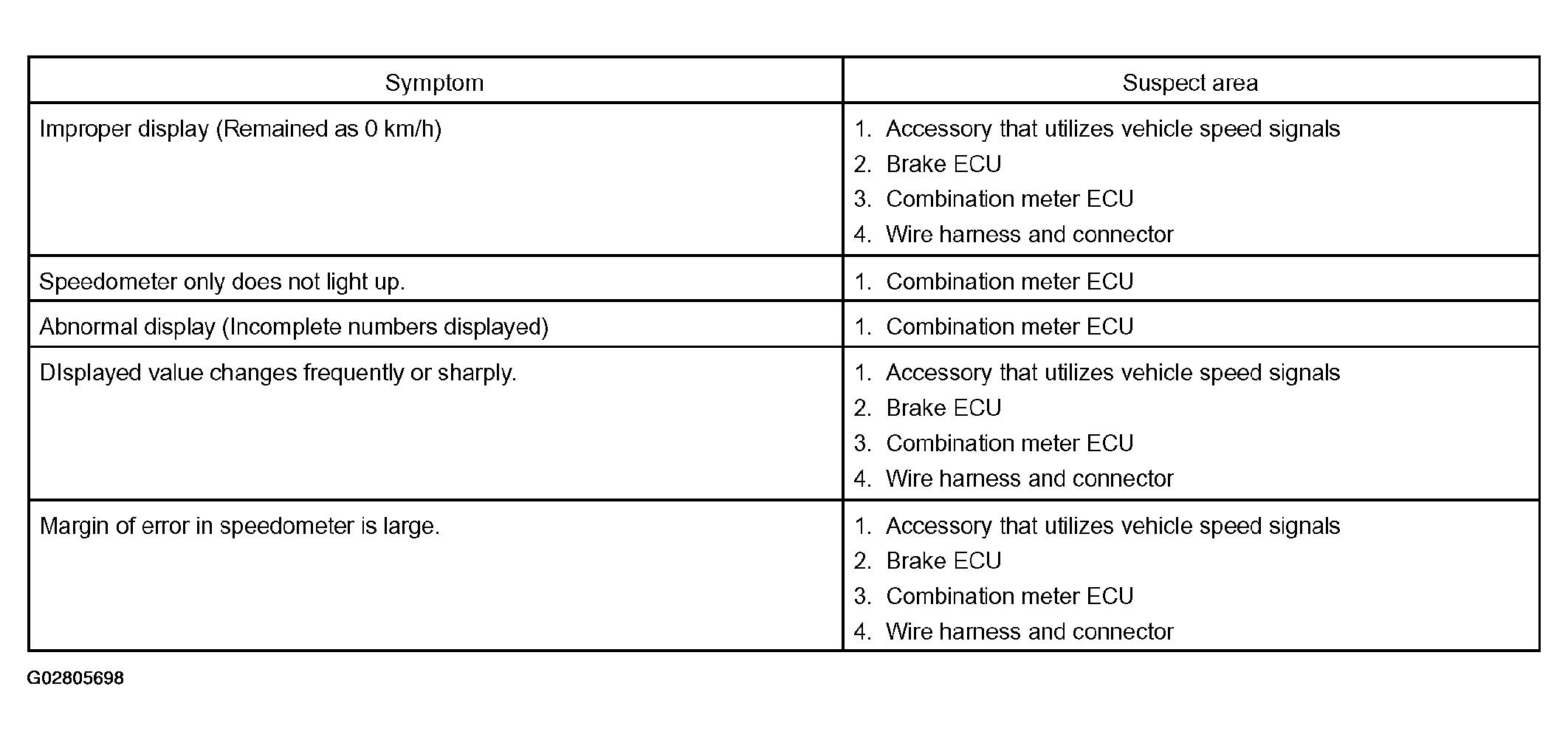

| 3 | The margin of error in speedometer is large. Or it remains as 0 mph. |
| 4 | Fuel receiver gauge is inoperative or improper. |

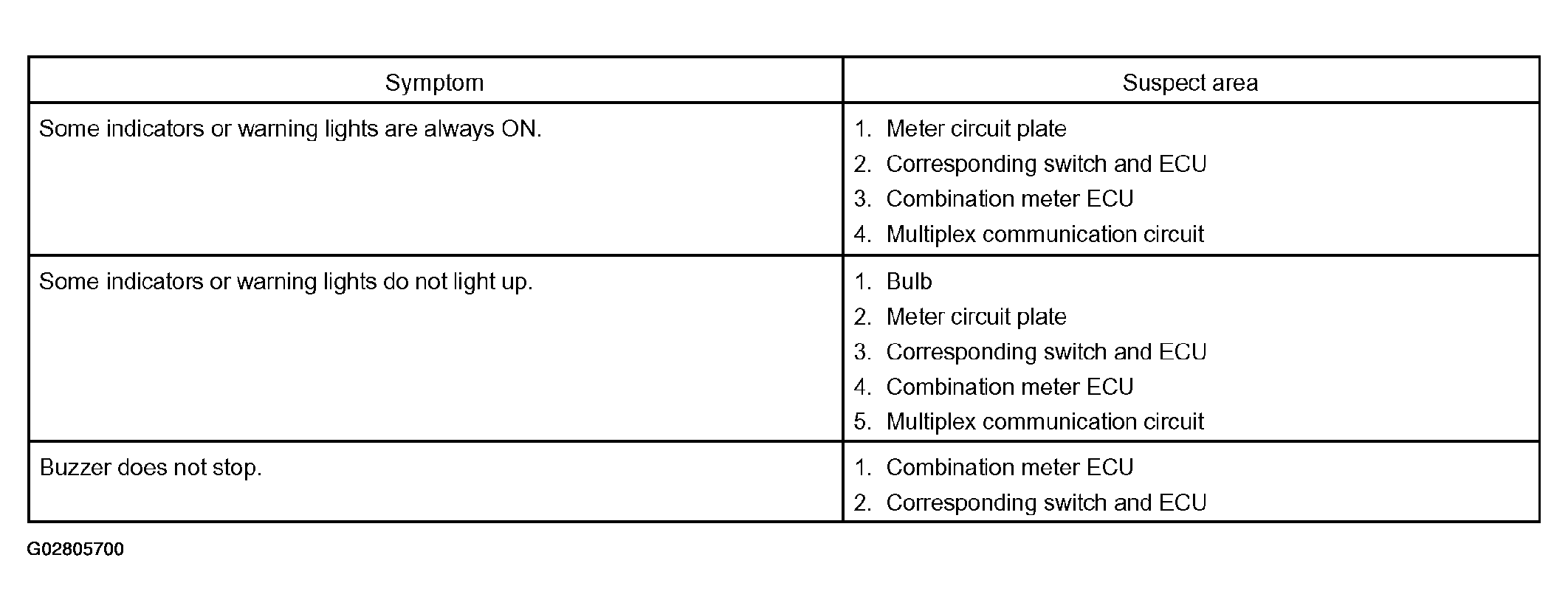

| 5 | Indicators or warning lights do not light up. |
