Door Key Lock & Unlock Switch

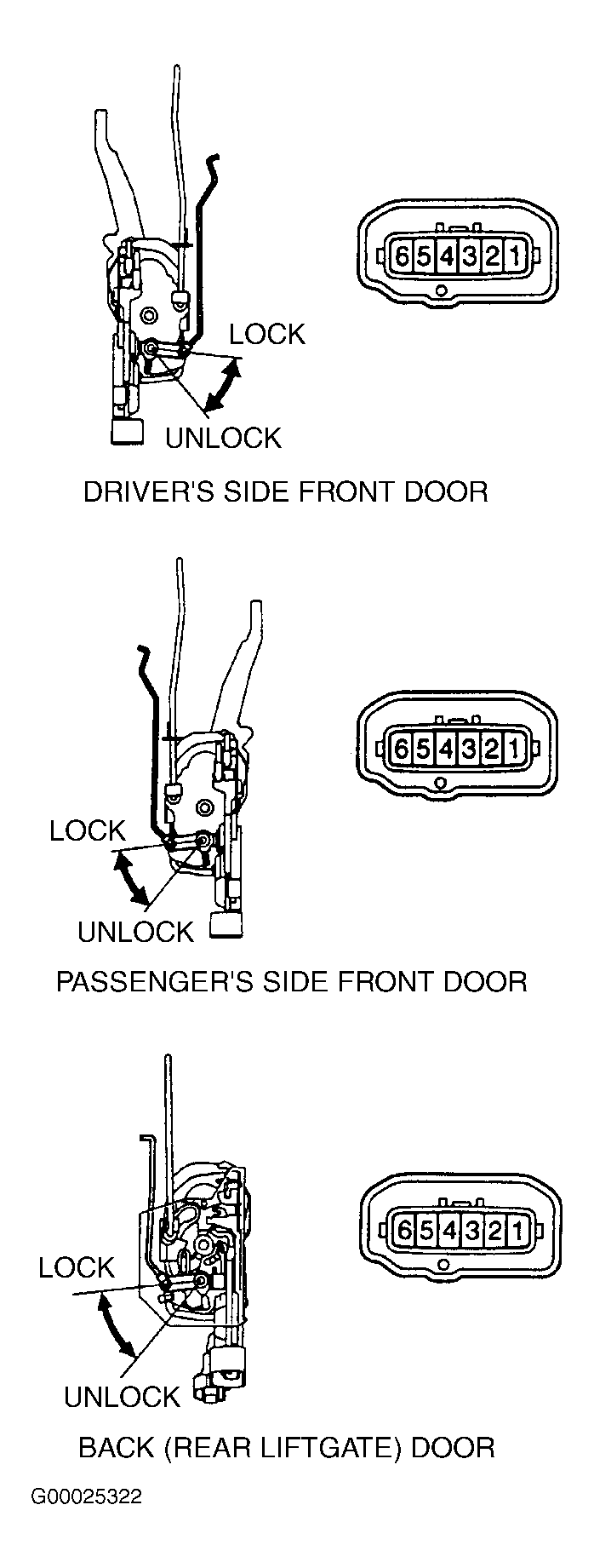

- Remove door panel for access to appropriate door lock assembly on driver's side front door, passenger's side front door or back (rear liftgate) door which contains the door key lock and unlock switch. See Figure.
- Disconnect the 6-pin electrical connector at door lock assembly. Note electrical terminal identification on door lock assembly and switch positions. See Fig 1.
- Using ohmmeter, check that continuity and no continuity is as specified between indicated door lock assembly electrical terminal for door key lock and unlock switch in relation to switch position. See DOOR KEY LOCK & UNLOCK SWITCH CONTINUITY table. Replace door key lock and unlock switch if continuity is not as specified.
DOOR KEY LOCK & UNLOCK SWITCH CONTINUITY
| Application & Switch Position |
Switch Terminals No. |
Specification |
| Back (Rear Liftgate) Door |
| LOCK |
3 & 5 |
Continuity |
| OFF |
|
|
| UNLOCK |
4 & 5 |
Continuity |
| Driver's Side Front Door |
| LOCK |
2 & 4 |
Continuity |
| OFF |
|
|
| UNLOCK |
2 & 3 |
Continuity |
| Passenger's Side Front Door |
| LOCK |
3 & 5 |
Continuity |
| OFF |
|
|
| UNLOCK |
4 & 5 |
Continuity |
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
